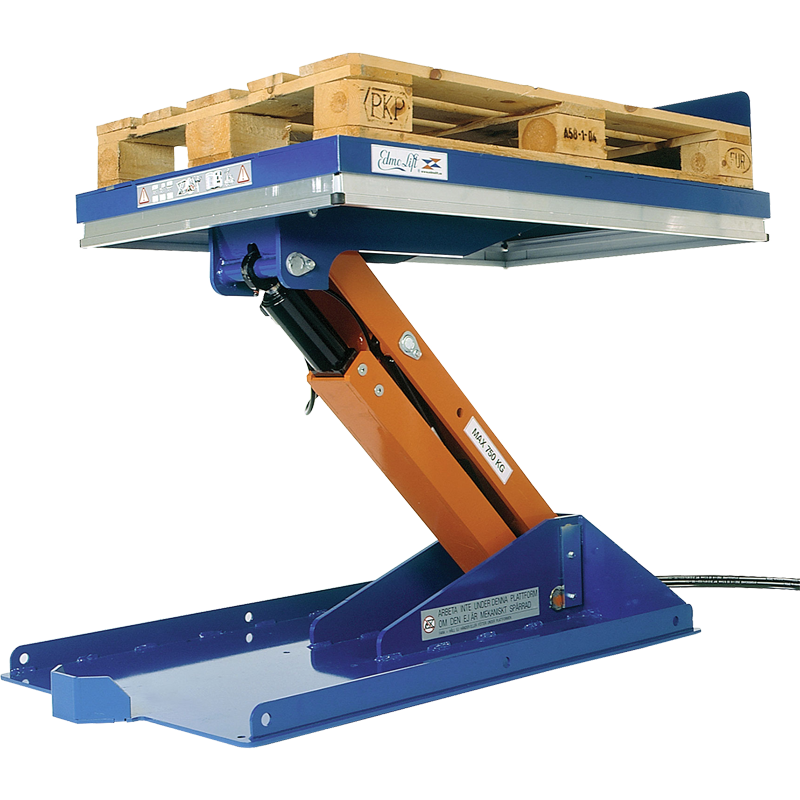

The Armlift's unique patented function offers an ergonomic work platform with ample foot space, comfortable working positions and unrivalled accessibility. Armlift is the perfect choice for almost all work places that handle goods and components on pallets, in baskets or containers.

Media

Features

MECHANICAL FEATURES

  • Finish: Powder-coated
  • Lifting: Electric
  • Ingress Protection: IP 54
  • High quality Swedish design
  • PLC control for simple customising to specific requirements
  • 24 V DC control unit and operating device with cutout switch
  • Maintenance free bearing surface
  • Tilt function from +5 degrees to -40 degrees included as standard.
  • Two main types of loading with forklift trucks or pallet trolleys.
  • Individual adjustment of working height and angle with combined hand control unit.
  • Overload protection.

SAFETY

EN 1570

  • Table is equipped with hose burst valves with safety and mechanical locks for servicing and maintenance
  • Safety spacing between all moving parts
  • Adjustable trap prevention safety trip bars on all sides of the platform
  • IP54 approved electrical system.
  • Slide protection 230mm
  • Service locks dimensioned for maximum load

WARRANTY

  • 1 Year Warranty

Models (5)

CODE LTT-EDM-001 LTT-EDM-002 LTT-EDM-003 LTT-EDM-004 LTT-EDM-005
Capacity (kg) 750 750 1500 1500 1500
Lift Height (mm) 235 - 550 235 - 820 235 - 550 380 - 550 235 - 820
Length (Platform) (mm) 945 1245 945 945 1245
Width (Platform) (mm) 1300 800 1300 1300 800
Length (mm) 1000 1300 1000 1000 1300
Width (mm) 1300 800 1300 1300 800
Lift Time (s) 18 18 16 16 16
