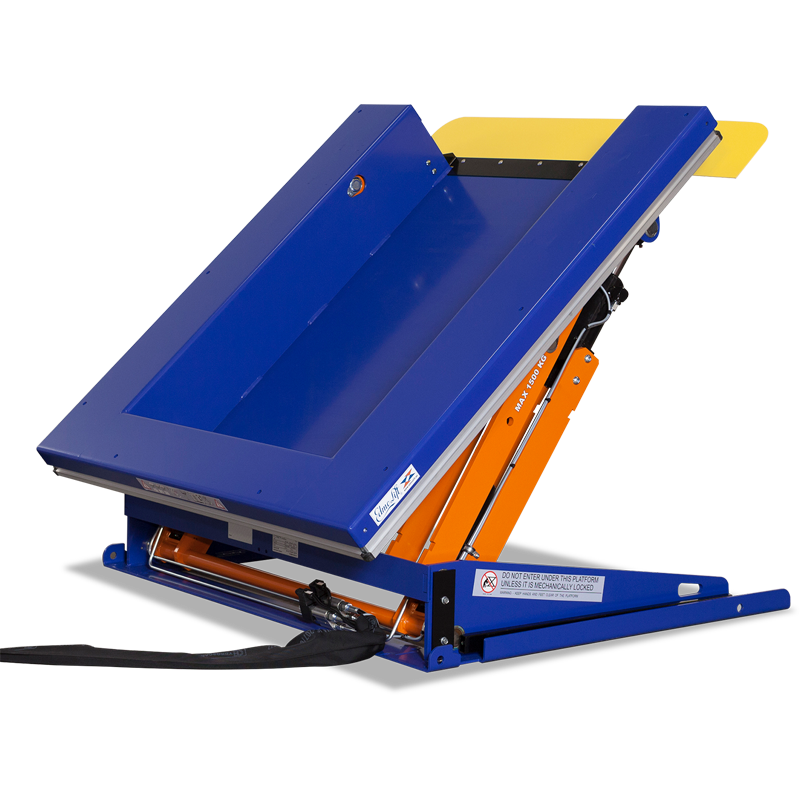

U-Shaped Arm-lift Tilt Table

The Armlift's unique patented function offers an ergonomic work platform with ample foot space, comfortable working positions and unrivalled accessibility. Armlift is the perfect choice for almost all work places that handle goods and components on pallets, in baskets or containers.

Media

Features

MECHANICAL FEATURES

  • Finish: Powder-coated
  • Lifting: Electric
  • Ingress Protection: IP 54
  • Table is equipped with hose burst valves with safety and mechanical locks for servicing and maintenance
  • High quality Swedish design
  • Safety spacing between all moving parts
  • PLC control for simple customising to specific requirements
  • Adjustable trap prevention safety trip bars on all sides of the platform
  • 24 V DC control unit and operating device with cutout switch
  • Maintenance free bearing surface
  • Tilt function from +5 degrees to -40 degrees included as standard.
  • Two main types of loading with forklift trucks or pallet trolleys.
  • Individual adjustment of working height and angle with combined hand control unit.
  • Armlifts with lifting capacity over 1500 kg are available on request
  • Overload protection
  • Slide protection 230mm
  • Service locks dimensioned for maximum load

SAFETY

EN1570

WARRANTY

  • 1 Year Warranty

Models (3)

CODE LTT-EDM-006 LTT-EDM-007 LTT-EDM-008
Capacity (kg) 1500 1500 1500
Length (Platform) (mm) 1200 1200 1200
Width (Platform) (mm) 850 1050 1270
Lift Height (mm) 6 - 820 6 - 820 6 - 820
Lift Time (s) 16 16 16
Length (mm) 1380 1380 1380
Width (mm) 1310 1510 1730
