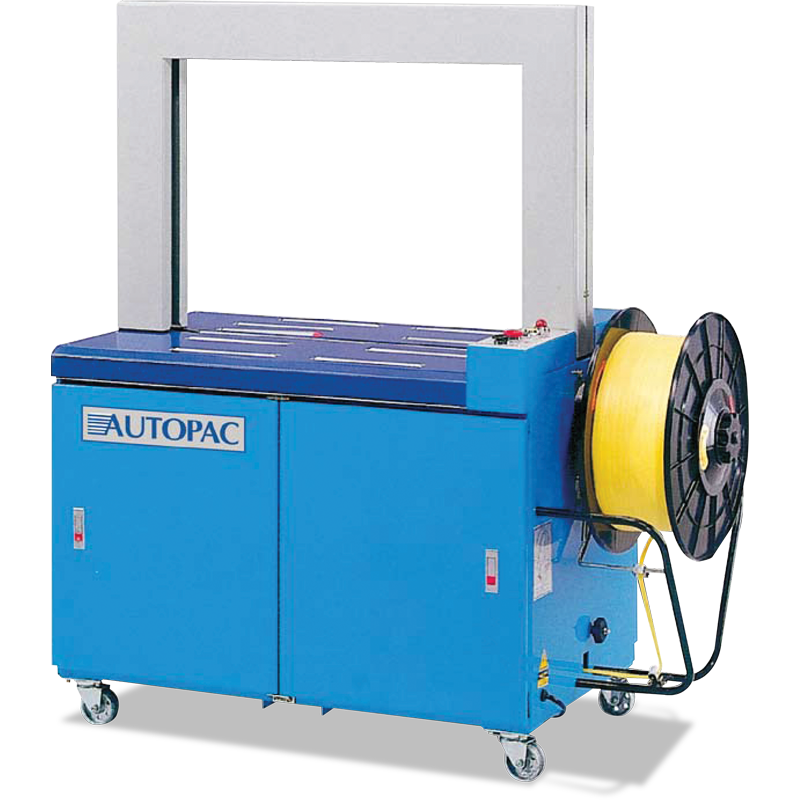

Semi-automatic Strapping Machine

This strapping machine is our recommended strapping system for any medium to high throughput where an operator is required to feed the boxes into the arch for strapping. Top quality design and manufactured to stand up to 24 hours of continuous operation. Ideally suited for constant industrial use.

Features

MECHANICAL FEATURES

  • Finish: Powder-coated
  • Tension adjustment - Fully adjustable and max. tension is 70kgs
  • Easy maintenance - No greasing, mechanism is stable and durable. Easy operation
  • The dispenser is located outside the machine case for quick and convenient strap reloading
  • Heavy duty castors
  • Heavy duty strap holder
  • Easy to use controls
  • Closed cabinet for safety
  • Precision made structure - with built in safety features this machine is capable of 24hr continuous automatic operation

WARRANTY

  • 1 Year Warranty

OPTIONAL ACCESSORIES

  • Stainless Steel Construction
  • 36 strap/min (PW-0860A36): PCB control
  • 3-Phase power
  • Detection system for strap feeding out of position
  • Detection for no strap

Models (1)

CODE PSG-PKW-003
Strap Width (mm) 12
Adjustable Tension (kg) 0 - 70
Speed (s / strap) 2.4
Max Package Size (mm) 60 - 850 x 600
Length (mm) 1476
Width (mm) 689
Height (mm) 1644
Power Supply (Phase) Single Phase
