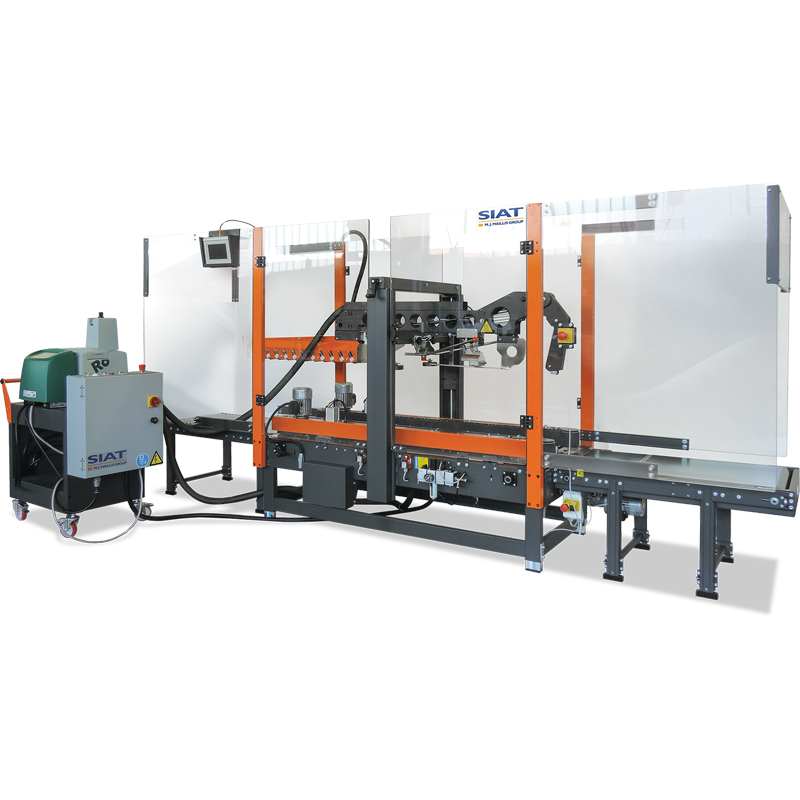

Hot-melt Case Sealing Machines

The Automatic Hot Melt gluing machine is manually adjustable to suit a range of carton sizes. The HM11-TB simultaneously glues the top and bottom flaps of uniform size cartons. The 12 different gluing programs give trouble free sealing of a wide range of cardboard boxes.

Media

Features

MECHANICAL FEATURES

  • Box Production: Uniform Box Sizes
  • Delivery: Some Assembly Required
  • Finish: Powder-coated
  • Sealing programmes - with memory and recall functions
  • Lower hot melt glue applying head
  • Control panel includes:
    • Start/stop and emergency stop button
    • PLC (Omron) to set machine functions
    • Systems to control the box gluing when passing through magic eyes
  • Top and bottom flap pressing unit
  • Box Dimension adjustment
  • Suitable for use in automatic and semi automatic packaging lines in accordance with CE safety regulations
  • Melting capacity: 9Kg / hour
  • Hot melt generator: - (Robatech) a stand alone trolley unit on castors with 5kg tank capacity, tube and gun with four spreading valves included on the top HM11-T model and identical on the bottom HM11-TB model
  • Automatic top flap folding device
  • Manual adjustment with handles for varying box sizes
  • Side motorised driving belts
  • Hot melt tank capacity: 5kg

WARRANTY

  • 1 Year Warranty

Models (2)

CODE PTH-SIA-001 PTH-SIA-002
Box Length (mm) 200 - 500 200 - 600
Box Width (mm) 150 - 500 150 - 500
Box Height (mm) 150 - 500 150 - 500
Packs Per Hour (#) 1000 1200
Power Supply (Phase) Single Phase Single Phase
Seal Areas Top and Bottom Top Only
Length (mm) 3838 3498
Width (mm) 938 938
Platform Height (mm) 500 - 750 500 - 750
