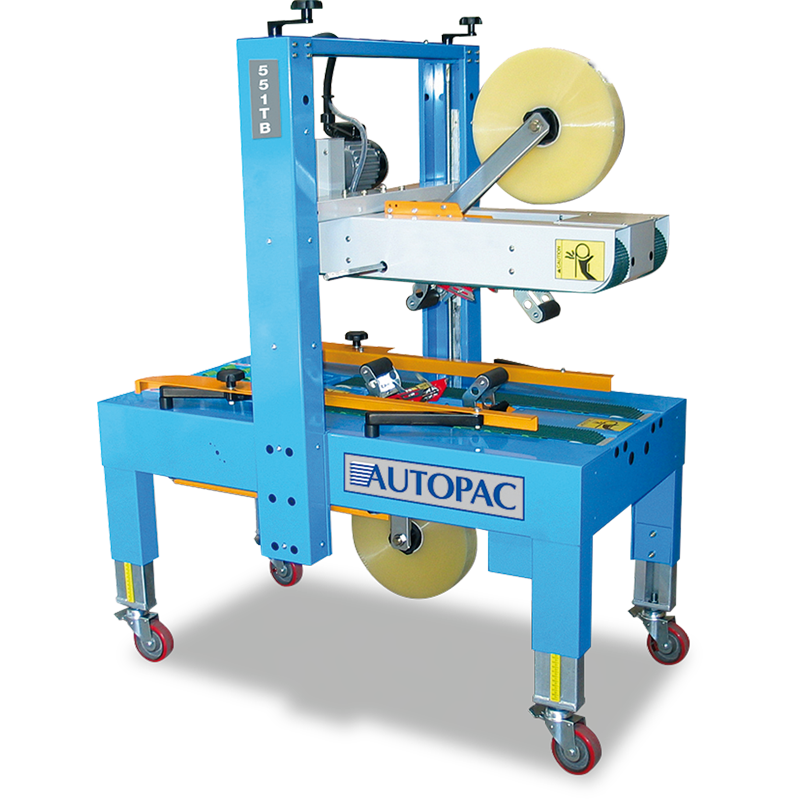

Semi-automatic Top/Bottom-Drive Box Taper

High quality carton sealing machine with new taping head, which incorporates a patented V shaped plate designed to keep tape straight and in position for consistent sealing of every carton.

Media

Features

MECHANICAL FEATURES

  • Box Production: Uniform Box Sizes
  • Delivery: Some Assembly Required
  • Finish: Powder-coated
  • Top and Bottom sealing
  • Wide 75mm belt provides positive drive and has hook-up links for ease of changing
  • Driven by four belts: Drive belts on both sides of tape act as compression rollers
  • New taping head uses an impress plate to apply tape and prevent bending
  • Adjustable height legs
  • Flexible cushion top unit avoids box from jamming under the top taping head
  • Adjustable tape leg length
  • Castors with brake
  • Easy to adjust for different box sizes
  • Width adjustment by two size guides
  • Height is adjustable by precision aluminium guides in each pillar

WARRANTY

  • 1 Year Warranty

OPTIONAL ACCESSORIES

  • Infeed/Outfeed conveyor
  • Power saving function
  • Stainless steel construction
  • 75mm Tape head (Box Size:L150mm-any xW225-500mmxH120-500mm)
  • Extension roller tables
  • 60 sec. auto-stop
  • Stainless steel structure SUS #304
  • 3-Phase

Models (1)

CODE PTS-PKW-001
Box Length (mm) 150 - Any
Box Width (mm) 120 - 500
Box Height (mm) 200 - 500
Power Supply (Phase) Single Phase
Sealing Speed (m/min) 20
Packs Per Hour (#) 1800
Tape Width (mm) 50 / 75
Length (mm) 1200
Width (mm) 790
Height (mm) 1425 - 1770
Weight (kg) 151
