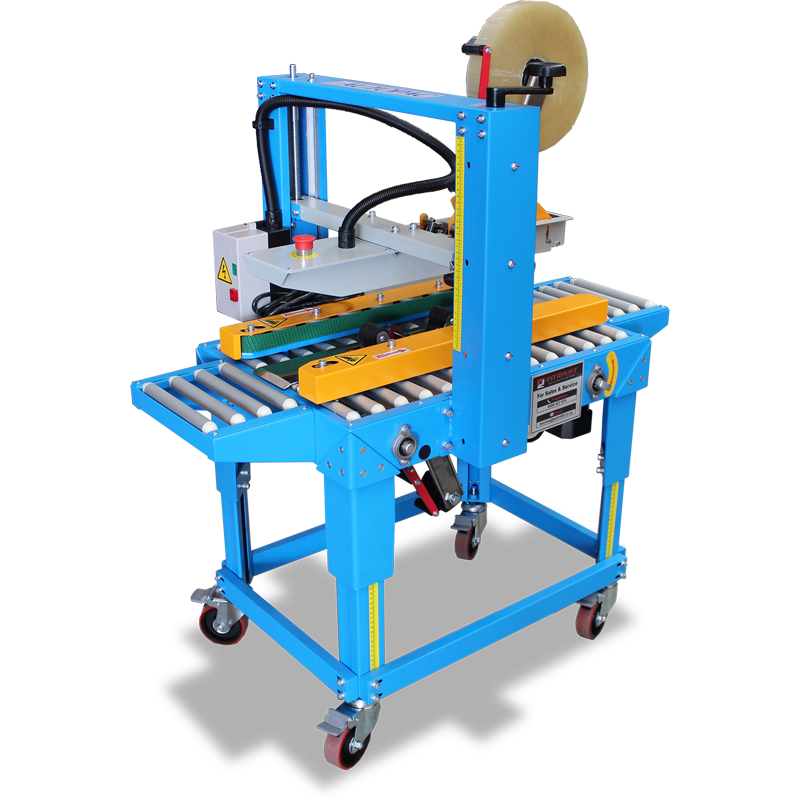

Mini Semi-automatic Side-drive Box Taper

This machine is specifically designed for high-speed taping of long runs of boxes smaller than what a normal taping machine can handle.

Features

MECHANICAL FEATURES

  • Box Production: Uniform Box Sizes
  • Delivery: Some Assembly Required
  • Finish: Powder-coated
  • Top and bottom sealing
  • Smaller size - designed for smaller box sizes
  • Powered by side-drive belts
  • Robust design
  • Easy to operate and maintain
  • Made in Taiwan

WARRANTY

  • 1 Year Warranty

Models (1)

CODE PTS-PKW-003
Box Length (mm) 120 - Any
Box Width (mm) 80 - 200
Box Height (mm) 50 - 300
Power Supply (Phase) Single Phase
Sealing Speed (m/min) 20
Packs Per Hour (#) 1500
Length (mm) 730
Width (mm) 659
Height (mm) 1210 - 1350
Weight (kg) 90
Platform Height (mm) 670 - 810
Tape Overlap (mm) 30 +/- 5
