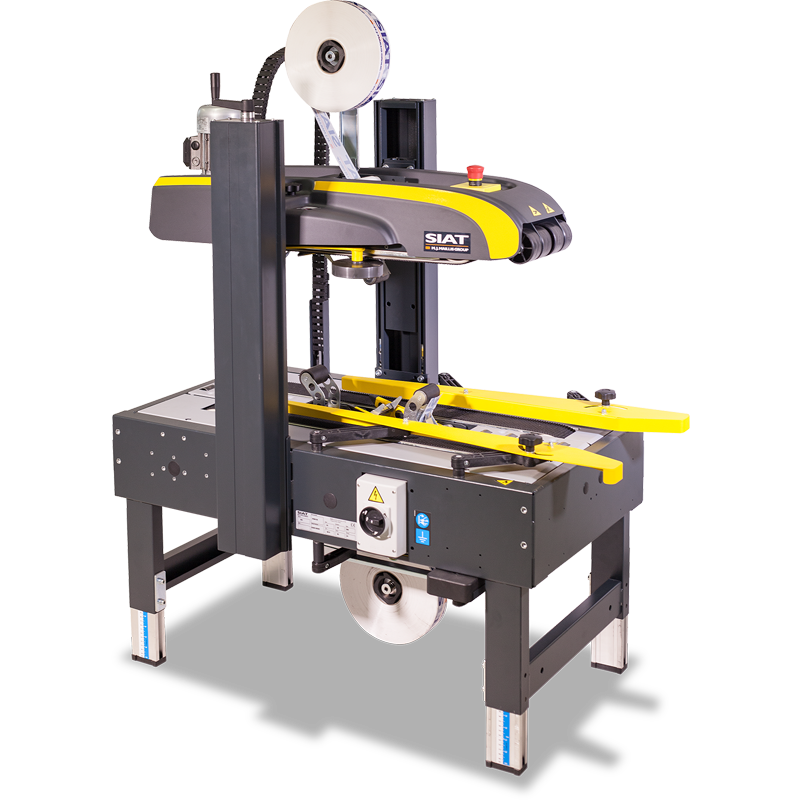

Semi-automatic Top/Bottom-Drive Box Taper

With dual top and bottom drive belts, resulting in less friction on the top of the box, this box taper is designed for medium to high throughput lines. The removable tape heads make changing tape rolls fast and easy. Bottom guides and top side pressure rollers ensure the box flaps are held together through the taping process for perfect taping of every carton.

Media

Features

MECHANICAL FEATURES

  • Box Production: Uniform Box Sizes
  • Delivery: Some Assembly Required
  • Finish: Powder-coated
  • Top and bottom sealing

WARRANTY

  • 1 Year Warranty

OPTIONAL ACCESSORIES

  • Extension Roller Table: RN04-75-500
  • Extension Roller Table Brackets: S470837700A

Models (1)

CODE PTS-SIA-005
Box Length (mm) 150 - Any
Box Width (mm) 140 - 500
Box Height (mm) 100 - 500
Power Supply (Phase) Single Phase
Packs Per Hour (#) 1200
Length (mm) 1080
Width (mm) 740
