Model Number

PWL-SMI-001

Sealing Bar Length (mm)

560

Sealing Bar Width (mm)

430

Conveyor Speed (m/min)

19

Boxes Per Hour (#)

800

Power Supply

Single Phase

Overall Length (mm)

2010

Overall Width (mm)

790

Overall Height (mm)

1050

Weight (kg)

129

Box Height (mm)

230



Enquire For Price

+ Quote
Specification PDF

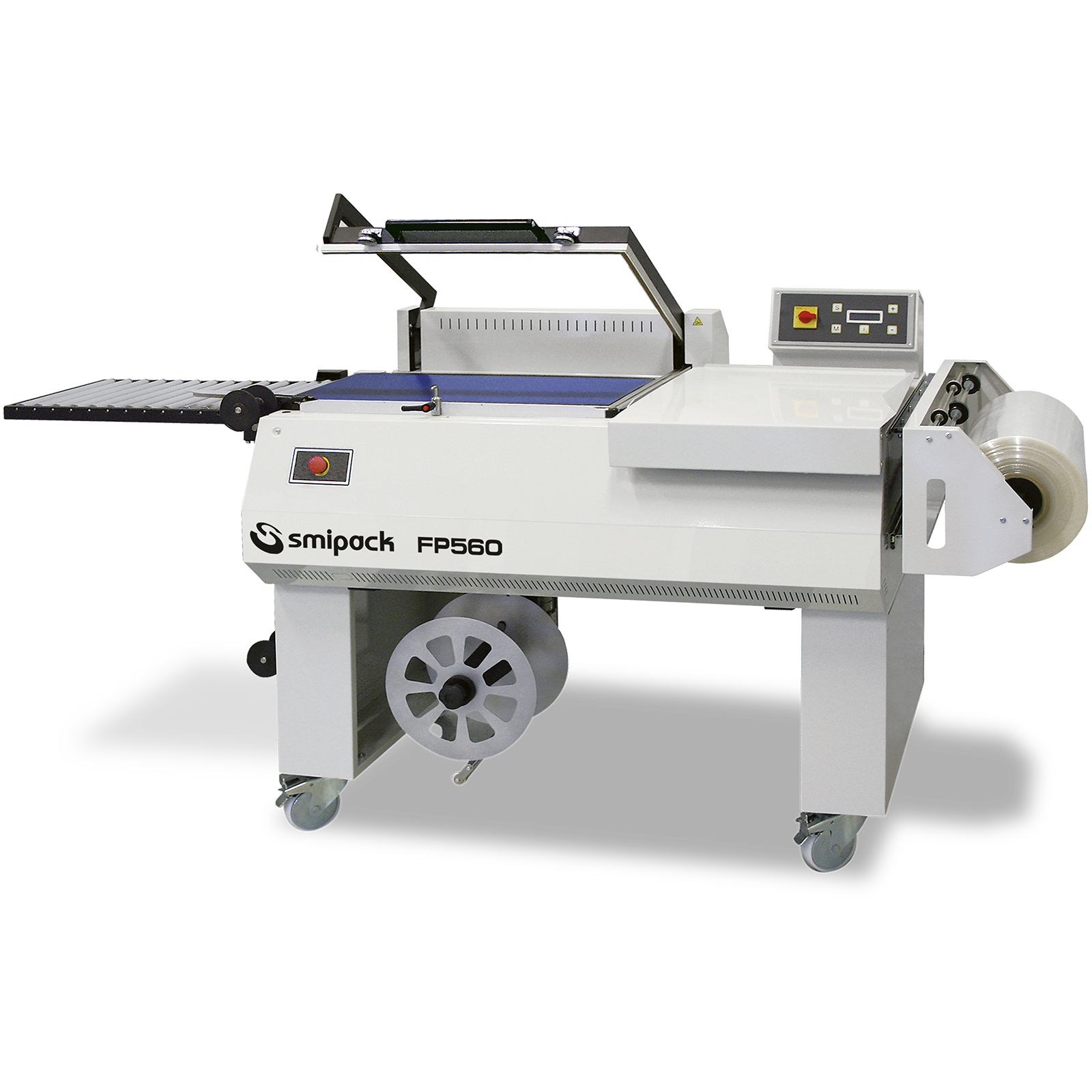

A step up from the hood sealer, this L-bar sealer only seals, leaving the shrink wrapping for a sperate heat tunnel. This allows for a higher throughput since the sealer does not have to wait until the shrink cycle is finished to move onto the next item. The operator manually inserts product into the shrink wrap on the table, then moves the packet under the L-bar to seal.

  • Delivery: Some Assembly Required
  • Finish: Powder-coated
  • Manual sealing system
  • Double hood hold-down electromagnet that highly reduces the pressure of the operator on the sealing arm so as to ensure a better sealing
  • PTFE-coated sealing blade
  • Closed-circuit liquid cooling of the sealing bars
  • Automatic pack discharge by means of a motorized conveyor
  • Control system equipped with:
    • LCD control panel
    • Modular power section
  • This system allows simple and precise control of all the machine operations, such as:
    • machine status
    • Number of packs produced
    • Adjustment of the sealing temperature
    • Pack discharge speed
    • Delay in the opening of the sealing arm
    • Possibility of scheduling up to 10 different work cycle increasing productivity
    • Troubleshooting
  • Reduced power consumption



  • CE Certified
  • Emergency stop button
  • 1 Year Warranty

OPTIONAL ACCESSORIES

  • Compatible Heat Tunnels: PWT-SMI-001 and PWT-SMI-002
