Custom Heavy-duty Pallet Inverter

Built to Requirements.

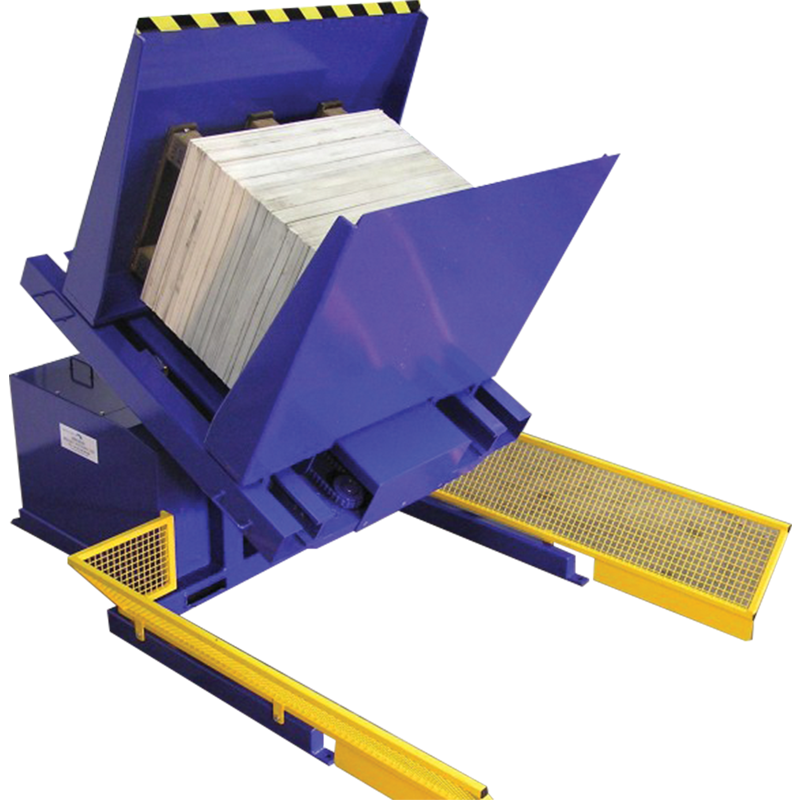

The RR Type 1 Inverter works on a totally different principle to the other styles of 180 degree inverters, the letters in its title standing for ""recline and rotate"". This method of tipping the load through 90 degrees onto its back so that it is centralised over a turntable is an ideal one when handling very wide or heavy loads. It can be built with single or dual clamping tables to any width or depth. The jaw opening is also totally variable, though normally the loads it has to handle are not that high.

The RR Type 1 is almost always supplied as a fully automated and guarded system custom-built to suit the individual user's needs. In the past, machines with up to 10,000Kgs capacity have been manufactured, and we could go higher than this if the need arose. It is certainly a machine which is aimed more at load inversion than as a method of pallet exchange, but with wide or overweight loads there is no better method of handling.

Typical applications would be to invert stacks of steel through 180 degrees after stamping or surface treatment, to turn piles of laminated boards to meet customer requirements or to handle mould-manufactured concrete products. We always recommend automated controls with the RR Type 1. The touch of one button initiates a clamp, recline and rotate sequence. The machine would have a fixed location where it would be surrounded by fixed guards and photo-electric beams for optimum operator safety.

Media

Features

MECHANICAL FEATURES

  • Finish: Painted
  • Fully automated with manual override option.
  • Recline and rotate principle provides a tried and tested method of handling exceptionally difficult loads
  • Single or twin clamping system dependent on load heights and required clamp pressure
  • Normally fixed installation and totally stable during operation

WARRANTY

  • 1 Year Warranty
