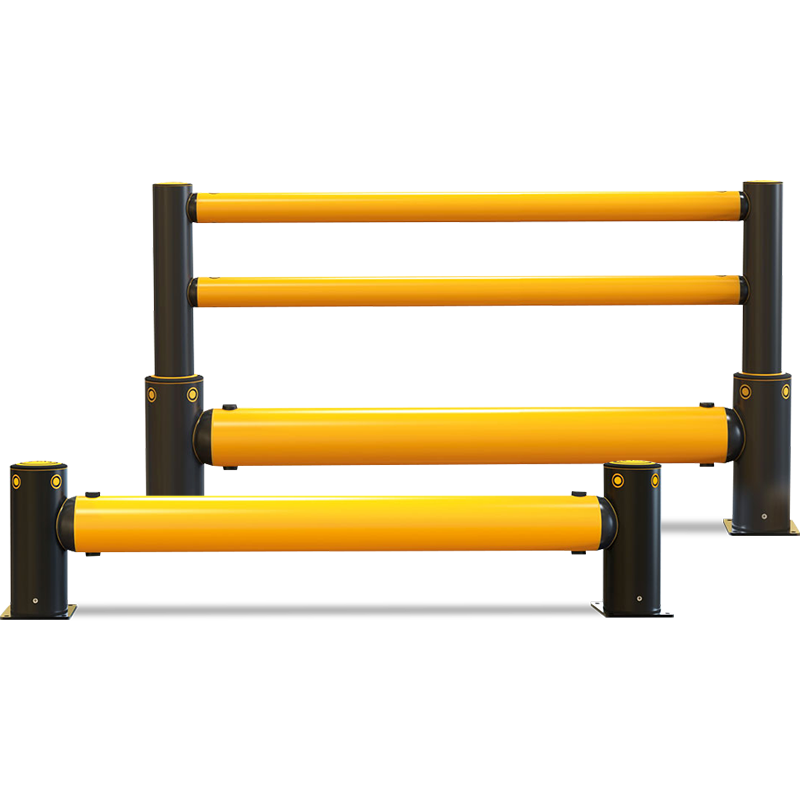

A-Safe Single Traffic Barrier

A-Safe Traffic iFlex Barrier is an ideal guard rail for protecting against impacts from vehicles at low-levels. The rail is designed for the standard wheel arch impact height.

A-Safe guard rails flex, absorb most of the impact force, then reform to their original shape. A-Safe barrier requires little maintenance and can save on costly floor repairs due to its flexible qualities.

Their chemical resistance, extreme temperature tolerance, and non toxicity make them ideal for clean room and corrosive industries. They are also popular in applications with freqent impacts, due to their better long-term cost performance with multiple impacts.

Media

Features

MECHANICAL FEATURES

  • Finish: Flexible Plastic (Non-conductive, Food Safe and Hygiene Area Safe)
  • Absorbs most impact forces
  • Reforms to original shape
  • Withstands temperature extremes (two options)
  • Modular and multi-directional
  • Outperforms steel and other barrier systems
  • No painting needed
  • Highly durable

Memaplex material:

  • Memaplex 1 Temperature Tolerance: -10 to +50° Celsius
  • Memaplex 2 Temperature Tolerance: -40 to +30° Celsius

SAFETY

PAS 13

  • Flex on impact
  • Safe for food contact
  • Non Toxic
  • ISO/ TR 10358 Chemical Resistance
  • Protects the integrity of floors

Models (2)

CODE BSA-TRF-SG0 BSA-TRF-SG2
Height (Top of Rail) (mm) 395 1100
Standard Section Length (mm) 600 - 2200 600 - 2200
Tested Impact Energy (joules) 27,520 - 13,760 27,520 - 13,760
Equivalent Vehicle Weight (kg) 2000 - 2000 2000 - 2000
Equivalent Vehicle Speed (km/h) 18.8 - 13.4 18.8 - 13.4


Resources
