Model Number

LPA-ARM-001

LPA-ARM-002

LPA-ARM-003

Capacity (kg)

1000

1200

1500

Fork Span (mm)

530

530

530

Fork Length (mm)

1150

1150

1150

Lift Height (mm)

90 - 1600

90 - 1600

90 - 1600



Enquire For Price

+ Quote

Enquire For Price

+ Quote

Enquire For Price

+ Quote
Specification PDF

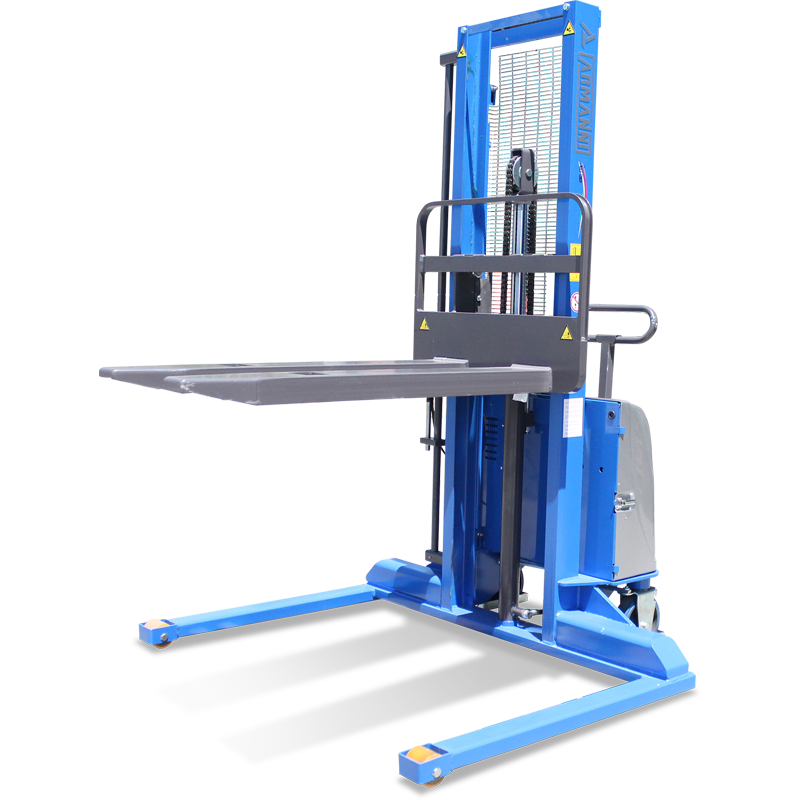

Straddle pallet stackers are designed for lifting pallets that have bottom boards. Where a regular stacker's legs go under the pallet, lifting the forks would snap the bottom boards off as they catch on the legs. This straddle stacker has legs that go around the outside of the pallet to avoid this issue. The forks of this pallet stacker are raised and lowered electrically, while the operator pushed the unit around to move it. These machines have a photocell height sensor. When activated, the sensor raises and lowers the forks to keep the top of the load at an ergonomic height, allowing operators to load and unload a pallet directly on the forks.

  • Battery Type: Built-in Rechargeable
  • Driving: Physical
  • Finish: Powder-coated
  • Leg Position: Straddle
  • Lifting: Electric
  • Exhausted battery indicator light
  • Three modes
    • Pallet stacker mode
    • Loading mode
    • Unloading mode
  • Forks allow ample foot clearance when lowering in loading mode
  • Photosensor allows the machine to automatically raise and lower the forks, so the top of the load is at an ergonomic working height
  •  Ergonomic driving handle prevents unnecessary strain on users
  • Simple, electric controls to raise and lower the forks
  • Emergency stop button on the control panel
  • 1 Year Warranty

OPTIONAL ACCESSORIES

  • Stainless Steel Finish
