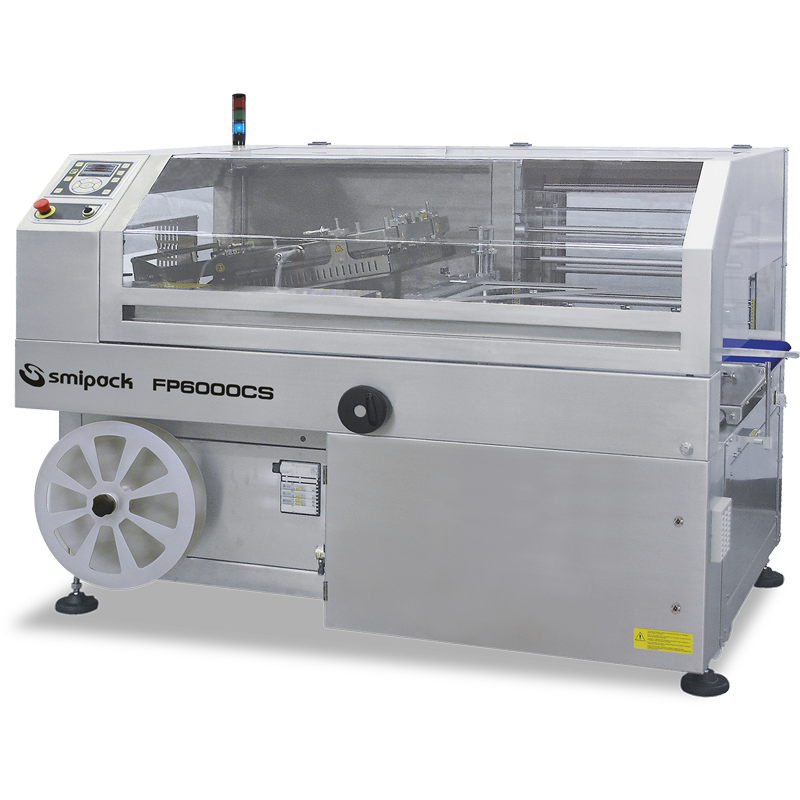

    L-Bar Sealer Automatic (Stainless Steel)

    Stainless Steel L-Bar Sealer

    Description

    Stainless Steel, Automatic L-Bar Sealing Machine

    This fully automatic L-Bar sealer from SMIPACK is designed and built locally in Italy, and provides higher output of production through an automated, highly economical system which delivers more packages per hour and with a consistency of packaging quality.

    Automatic Sealing Machine Benefits

    These Automatic L-Bar Sealers are proven to provide fast, effective and reliable shrink-wrapping, and is ideal for manufacturers with medium to high output demands. Fully automatic operation means that once the machine is running it will continue to do so until it runs out of shrink film.

    Stainless Steel Shrink Sealing Solution for Clean-Area Production

    The high quality stainless steel material and construction makes these Sealers extremely valuable in food, pharmaceutical and medical industries. In any situation where cleanliness and care of product is key, the Stainless Steel option of L-Bar Shrink Sealer ensures compliance for these industries.

    Videos

    Shipping & Returns

    Shipping

    We offer fast, reliable delivery nationwide across New Zealand.

    Returns

    Sale items can’t be returned. For other purchases, return freight is the customer’s responsibility and a 10% handling fee may apply. Our goal is to make sure you get the right solution for your business, so if you’re unsure, chat with our team before purchasing.

    View Pricing & Order
    • Ideal for Food and Medical-Grade Production
    • Made with quality parts in Italy
    • 1 Year Warranty

    Need replacement parts?

    Astrolift stocks genuine components and offers nationwide onsite technician service support to minimise downtime and keep your operation moving.


    Get a Free Quote

    Features & Benefits

    • Some Assembly Required
    • Stainless Steel (Hygiene Area Safe)
    • Ideal for use in wet-corrosive or hygiene-critical environments
    • Can handle both polyolefin and polyethylene centre folded film
    • Intermittent sealing system
    • PTFE-coated sealing blade on sealing bar
    • Operator interface with full-colour touch screen display
    • Inverters for each motor
    • In/out control modules with 16 digital inputs/outputs
    • Analogue input control modules
    • Automatic checking of transversal bar height
    • Dual sealing temperature adjustment
    • Possibility of packaging individual packs or groups of products
    • Electronically controlled conveyor belt speed
    • Instantaneous production
    • The system provides piece counter
    • The system provides pack length detection
    • The system provides real-time output
    • The system provides machine performance
    • Low power consumption
    Models & Specifications
    Image Model Number Price Each Order Quantity Availability Downloads
    L-Bar Automatic Sealer Machine

    L-Bar Sealer Automatic (Stainless Steel)

    pwl-smi-006

    Enquire For Price

    Add to Quote
    Check Availability
    Download Specification PDF
    Sealing Bar and Shrink Film
    Sealing Bar Length (mm) 640
    Sealing Bar Width (mm) 510
    Tapers / Sealers / Erectors
    Conveyor Speed (m/min) 10 - 30
    Boxes Per Hour (#) 3000
    Power
    Power Supply Single Phase
    External Dimensions
    Overall Length (mm) 2180
    Overall Width (mm) 1537
    Overall Height (mm) 1505 - 1665
    Weight (kg) 660
    Box Compatibility
    Box Height (mm) 200
