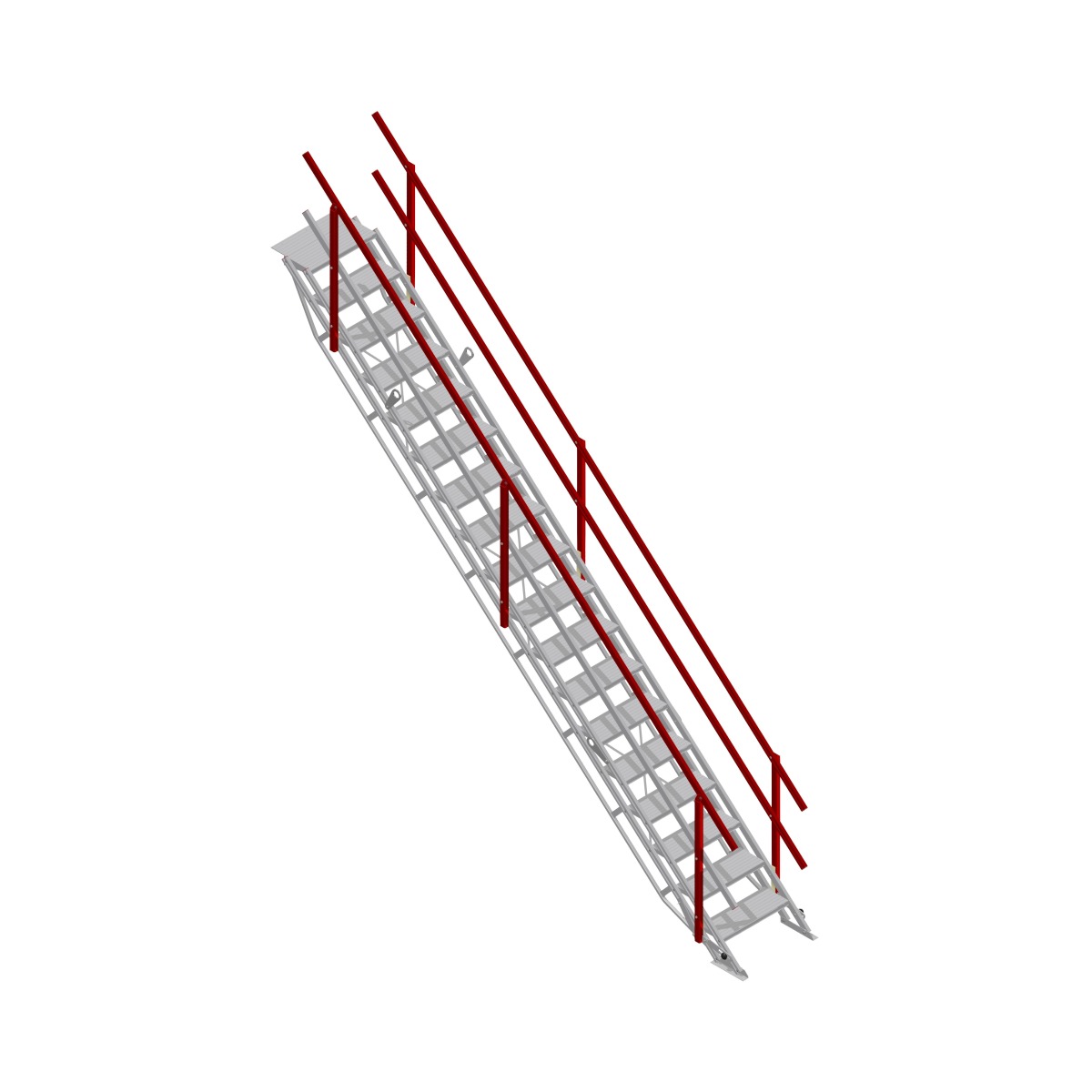

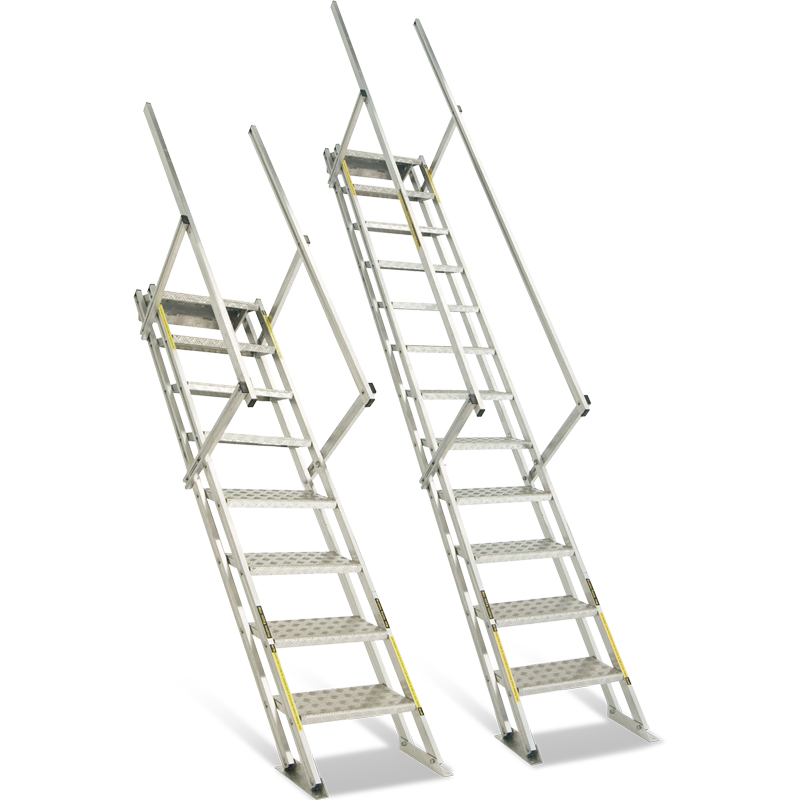

Self-Levelling Stairs - Fixed

Height-adjustable safety stairs with self-levelling steps and folding handrails.

Media

Features

MECHANICAL FEATURES

  • Finish: Aluminium
  • Folds flat quickly and simply, for ease of transportation
  • Wood-screw or concrete bolt fixing top and bottom for stability
  • Solid aluminium frame and 8.8 high tensile zinc plated recessed fastenings
  • Folds flat for storage
  • Lightweight for transport and handling
  • Quick to install
  • Increased productivity and safety
  • Tools and materials can be easily carried from floor to floor
  • Safe, fast, easy access between floors during construction

SAFETY

AS-NZS 1576 : 2010

WARRANTY

  • 1 Year Warranty

OPTIONAL ACCESSORIES

  • 1200mm step width also available

Models (4)

CODE ALL-ESY-001 ALL-ESY-002 ALL-ESY-003 ALL-ESY-004
Capacity (kg) 300 300 300 300
Width (Stairs) (mm) 600 600 600 600
Height (Top Step) (mm) 1356 - 2053 1805 - 2740 2254 - 3428 2702 - 4114
Height (Top of Rail) (mm) 1651 - 2348 2100 - 3035 2549 - 3723 3007 - 4409
Steps (#) 9 12 15 18
Stile Length (mm) 2658 3555 4452 5349
