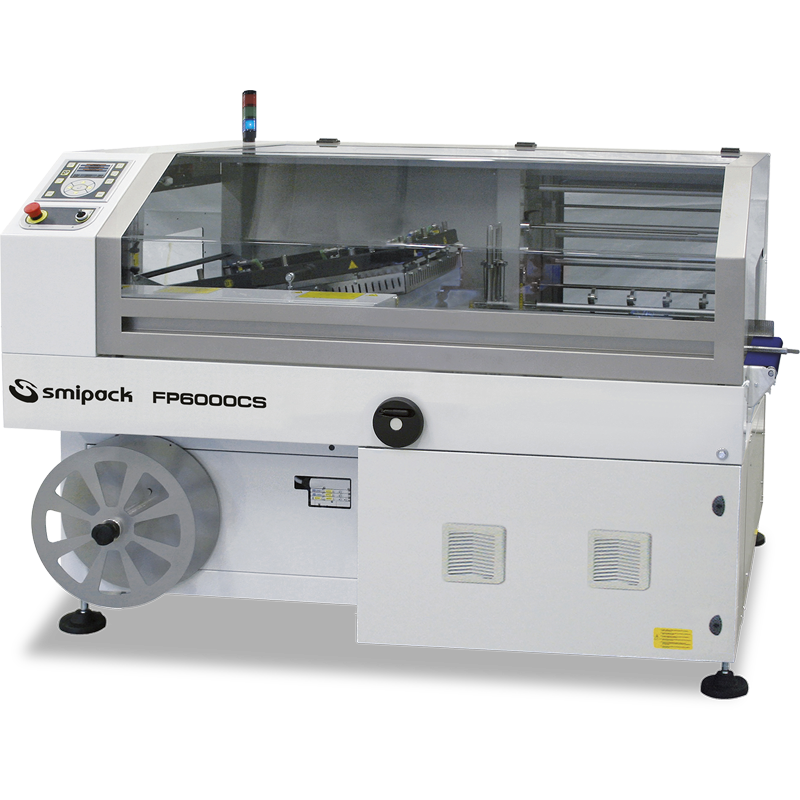

Automatic L-Bar Sealer

Fed by conveyor, this machine automatically inserts product into shrink wrap film and seals the open edges, ready to go through a heat tunnel.

Media

Features

MECHANICAL FEATURES

  • Delivery: Some Assembly Required
  • Finish: Powder-coated
  • Compatible Heat Tunnels:
    • For PWL-SMI-005: PWT-SMI-001 and PWT-SMI-002
    • For PWL-SMI-007: PWT-SMI-005 and PWT-SMI-006
  • Automatic cycle sealing
  • Flextron control system equipped with:
    • Alphanumeric LCD control panel with a 16-bit microprocessor card and solid state relays
    • Modular power section made up of:
      • Power card (Power Base)- Inverter cards for each motor
      • Inlet/Outlet control modules
      • This system allows for simple and precise control of all the machine operations, such as:
        • Sealing bar height- Sealing blade temperature, both lengthways and broadways
        • Sealing time adjustment
        • Possibility of packing single packs or multipacks
        • Speed of conveyors
      • The System also provides process statistics, such as:
        • Piece counter- Pack length
        • Real-time output
        • Machine performance
        • Control of irregular packs
  • Can use all types of Polyolefin film up to 30m
  • Low power consumption

SAFETY

C E Certified

WARRANTY

  • 1 Year Warranty

Models (2)

CODE PWL-SMI-005 PWL-SMI-007
Sealing Bar (mm) 640 x 510 840 x 710
Product Height (Max) (mm) 200 250
Packs Per Hour (#) 3600 2700
Length (mm) 2180 2625
Width (mm) 1545 1895
Height (mm) 1525 - 1665 1605 - 1765
Weight (kg) 660 820
Power Consumption (W) 3350 3950
Conveyor Speed (m/min) 10 - 30 10 - 30
Film Reel (Max) (mm) 600 x 350 850 x 350
Power Supply (Phase) Single Phase Single Phase
