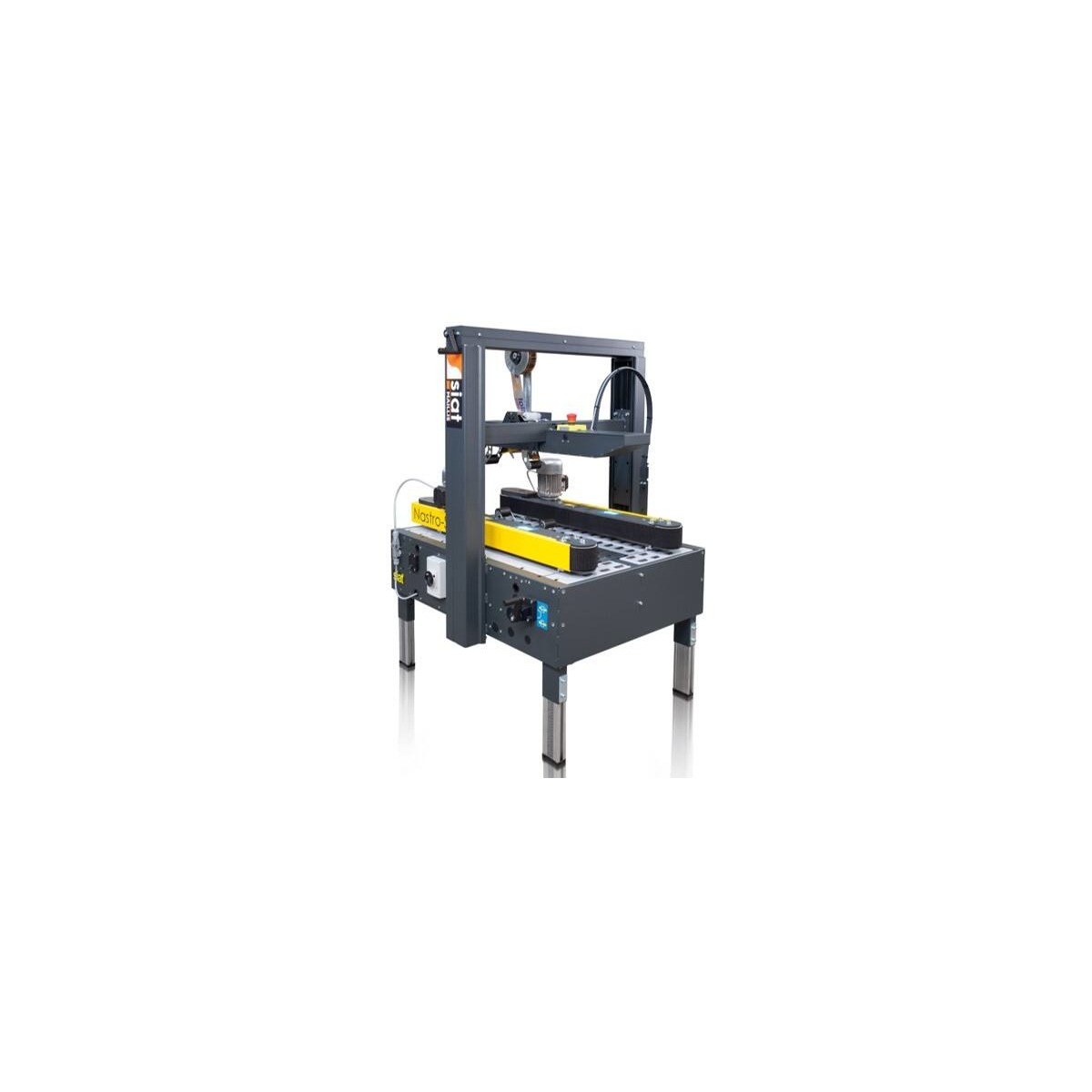

SIAT M5-L Case Taper
Box Taper
- Lockable power switch
- 1 Year Warranty
We don’t just supply the equipment – we can also arrange professional installation to make sure everything is set up correctly and ready to use. Talk to us today.
Box Taper
|
|
|
Model Number |
PTS-SIA-016 |
PTS-SIA-017 |
Drive Type |
Top & Bottom Drive |
Top & Bottom Drive |
Max Box size (LxWxH) (mm) |
..... x 500 x 500 |
..... x 500 x 500 |
Min Box size (LxWxH) (mm) |
120 x 80 x 60 |
120 x 150 x 90 |
Machine Dimensions LxWxH mm |
1100 x 1085 x 1315 to 1575 |
1100 x 1085 x 1315 to 1575 |
Productivity up to (bpm) |
20 |
20 |
Tape Reel Max Dia (mm) |
410 |
410 |
Innner Taper Core Size (mm) |
76 |
76 |
Power Absorption (Amps) |
1.08 |
1.08 |
Installed Power (kW) |
0.26 |
0.26 |
Power Supply |
Single Phase |
Single Phase |
Work Bench height (Without Castors) mm (mm) |
540-800 Add 110mm for wheels |
540-800 Add 110mm for wheels |
Belt Speed (m/min) |
26 |
26 |
Machine Weight (kg) |
250 |
250 |
|
Enquire For Price Add to Quote |
Enquire For Price Add to Quote |
|
Specification PDF |
$11,280.00
$10,995.00
This semi-automatic, heavy-duty case sealing machine is designed specifically for small, medium, large and king fixed box sizes.
Ideal for industries like food and beverage, chemical, clothing and wine, this machine will improve throughput and increase productivity.
