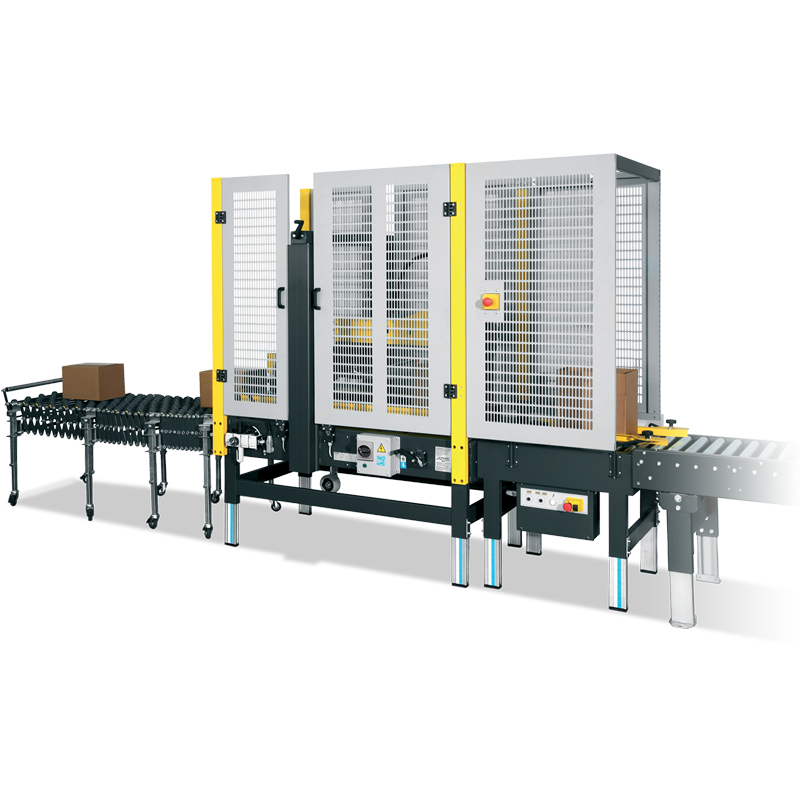

Box Taper SD (Automatic) Astrolift

This is a uniform size case sealer where the manual adjustment system allows easy setting for a run of cartons. The adjustment of the width, height and length are easy with three different handles. This unit also has a four flap folding device with side pressure rollers to keep top flaps close together.

Media

Features

MECHANICAL FEATURES

  • Box Production: Uniform Box Sizes
  • Delivery: Some Assembly Required
  • Finish: Powder-coated
  • Top and bottom sealing
  • Aluminium telescopic legs
  • K11 taping head - 50mm wide
  • Air pressure regulator
  • Handle to adjust the top taping unit ascent/descent
  • Automatic top flaps folding device
  • Side motorised driving belts
  • High Quality Italian unit
  • Handle to adjust the driving belts opening/closing

SAFETY

  • Safety guarding connected to disconnection switches
  • Emergency stop button

WARRANTY

  • 1 Year Warranty

OPTIONAL ACCESSORIES

  • Extension Roller Table (RN04-75-500)
  • Extension Roller Table Brackets (S470837800A)
  • 2 x K12R taping unit- 75mm
  • Low tape/ no tape sensor device
  • AG21 motorized indexing unit with timer control
  • KS11 silent taping unit
  • Higher legs (AS80)
  • Castors (AS77)
  • Roller Conveyor (RG)
  • Extendable conveyor
  • Inkjet Printer (K-125/K-250)
  • Three phase power

Models (3)

CODE PTA-SIA-007 PTA-SIA-008 PTA-SIA-009
Box Length (mm) 200 - 600 200 - 600 300 - 900
Box Width (mm) 150 - 500 105 - 500 150 - 500
Box Height (mm) 120 - 600 120 - 600 150 - 500
Power Supply (Phase) Three Phase Three Phase Three Phase
Sealing Speed (m/min) 21 21 21
Packs Per Hour (#) 1200 1200 900
Tape Width (mm) 50 50 50
Length (mm) 2526 2526 2834
Width (mm) 1058 1058 1058
Height (mm) 1770 - 2110 1770 - 2110 1770 - 2110
Weight (kg) 340 340 500
Height (Platform) (mm) 480 - 820 480 - 820 480 - 820
Tape Roll Core (mm) 76 76 76
Roll Diameter (mm) 410 410 410
