Platform Ladders - Wheeled-Chassis
Model Number

ALP-ESY-032

ALP-ESY-033

ALP-ESY-034

ALP-ESY-035

ALP-ESY-036

ALP-ESY-037

ALP-ESY-038

ALP-ESY-039

ALP-ESY-040

Capacity (kg)

150

150

150

150

150

150

150

150

150

Platform Length (mm)

600

600

600

600

600

600

600

600

600

Platform Width (mm)

600

600

600

600

600

600

600

600

600

Platform Height (mm)

1128

1410

1692

1974

2256

2538

2820

3100

3383

Steps (#)

4

5

6

7

8

9

10

11

12

Overall Length (mm)

1200

1350

1500

1650

1800

1950

2100

2250

2400

Overall Width (mm)

926

926

926

926

926

1092

1092

1092

1092

Weight (kg)

33

35

37

41

43

46

48

51

56



$1,483.00

+ Cart

$1,309.00

+ Cart

$1,374.00

+ Cart

$1,437.00

+ Cart

$1,500.00

+ Cart

$1,643.00

+ Cart

$1,712.00

+ Cart

$1,863.00

+ Cart

$1,938.00

+ Cart

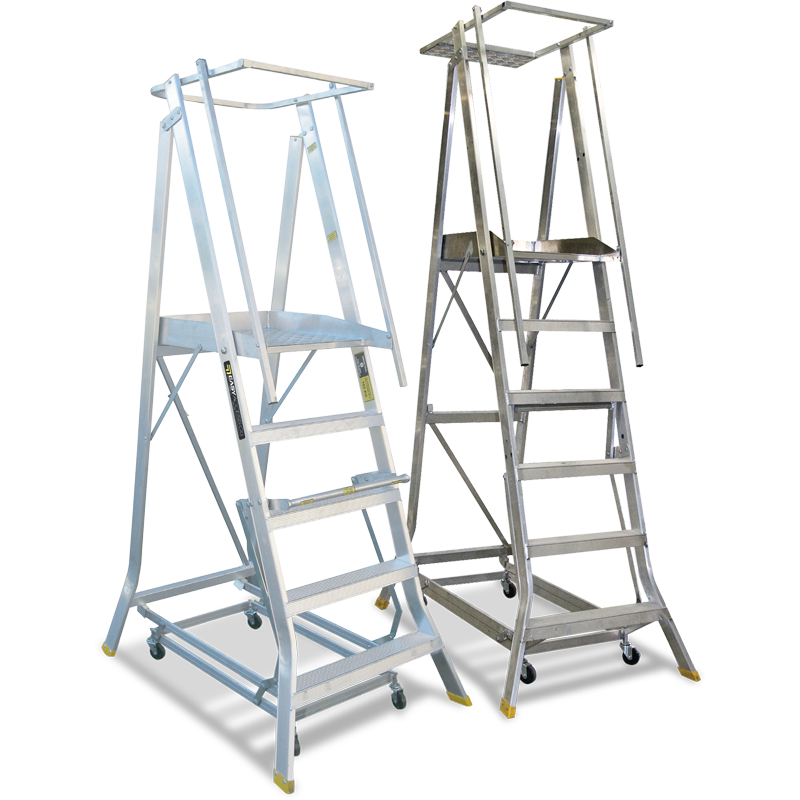

Platform ladders operate similarly to a step ladder but provide a work platform at the top for a stable area to stand, ideal for tasks which require an employee to work at height for an extended period of time. This model is both mobile thanks to it's spring-wheel chassis and foldable so that it can be stowed without taking up too much space. The wheeled chassis models have a lever to engage the wheels for moving, then to disengage the wheels so the feet then rest on the ground.

  • Finish: Aluminium
  • Spring wheels allow the ladder to roll freely when there is no weight on the platform and engage under load
  • A person’s weight easily overcomes the springs bringing the ladder’s feet in contact with the ground
  • AS/NZS 1892 : 1996
  • The built-in handrail is 973mm above the platform, providing three points of contact for further safety
  • 10 Year Warranty
