    In-Line Bundle Wrap Machine

    Automatic Shrink Wrapper

    Description

    These machines are conveyor fed, and automatically cover the incoming individual product with a loop of shrink film and seals them. The wrapped product then passes through the integrated heat tunnel which shrinks the film around the product for a secure wrap.

    Videos

    Shipping & Returns

    Shipping

    We offer fast, reliable delivery nationwide across New Zealand.

    Returns

    Sale items can’t be returned. For other purchases, return freight is the customer’s responsibility and a 10% handling fee may apply. Our goal is to make sure you get the right solution for your business, so if you’re unsure, chat with our team before purchasing.

    View Pricing & Order
    • Wraps Products Individually, or Bundle Packs
    • Advanced Pneumatic Sealing Bar and Cold Blade
    • 1 Year Warranty

    Need replacement parts?

    Astrolift stocks genuine components and offers nationwide onsite technician service support to minimise downtime and keep your operation moving.


    Get a Free Quote

    Features & Benefits

    • Some Assembly Required
    • Powder-coated
    • Automatic in-line shrink wrapper
    • No Pack Collation - Can wrap products individually or in single row groups.
    • Infeed conveyor and tunnel belt controlled by Inverter
    • Motorised upper film unwinding controlled by Inverter
    • Motorised lower film unwinding
    • Infeed conveyor product guides adjustable in height and width
    • Possibility to refer either to the photocell reading or to the pack length
    • Automatic, semi-automatic, pass-through mode
    • Pneumatic sealing bar and cold blade
    • Storing of 20 different working cycles
    • Automatic control of the height of the bars
    • Speed adjustment of the shrink wrapper and tunnel conveyors utilising an inverter
    • Adjustable tunnel airflow
    • Tunnel conveyor equipped with heat resistant glass fibre bars
    • The conveyor has a capacity of 30kg per product
    • The maintenance is easy and low cost
    • Oven cooling system
    • Low power consumption
    Models & Specifications
    Image Model Number Price Each Order Quantity Availability Downloads
    Bundle Wrapping Machine

    In-Line Bundle Wrap Machine

    pwb-smi-003

    Enquire For Price

    Add to Quote
    Check Availability
    Download Specification PDF
    Working Table Height
    Working Table Height (mm) 945 - 1105
    Sealing Bar and Shrink Film
    Sealing Bar Width (mm) 760
    Bundle Wrappers
    Heat Tunnel Chambers (#) 1
    Layout Inline Conveyor In-feed
    In-feed Lanes (#) 1
    Pack Collation No Pack Collation
    Tapers / Sealers / Erectors
    Boxes Per Hour (#) 720
    Power
    Power Supply Three Phase
    Air Supply
    Air Pressure (Nl) 13
    Air Consumption (bar) 6
    External Dimensions
    Overall Length (mm) 2840
    Overall Width (mm) 1410
    Overall Height (mm) 2105 - 2265
    Weight (kg) 625
    Box Compatibility
    Box Height (mm) 380
    Food Manufacturing Bundle Wrapper

    In-Line Bundle Wrap Machine

    pwb-smi-004

    Enquire For Price

    Add to Quote
    Check Availability
    Download Specification PDF
    Working Table Height
    Working Table Height (mm) 945 - 1105
    Sealing Bar and Shrink Film
    Sealing Bar Width (mm) 760
    Bundle Wrappers
    Heat Tunnel Chambers (#) 2
    Layout Inline Conveyor In-feed
    In-feed Lanes (#) 1
    Pack Collation No Pack Collation
    Tapers / Sealers / Erectors
    Boxes Per Hour (#) 1500
    Power
    Power Supply Three Phase
    Air Supply
    Air Pressure (Nl) 13
    Air Consumption (bar) 6
    External Dimensions
    Overall Length (mm) 3670
    Overall Width (mm) 1410
    Overall Height (mm) 2105 - 2265
    Weight (kg) 845
    Box Compatibility
    Box Height (mm) 380
    In-Line Bundle Wrapper

    In-Line Bundle Wrap Machine

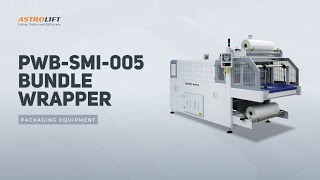

    pwb-smi-005

    Enquire For Price

    Add to Quote
    Check Availability
    Download Specification PDF
    Working Table Height
    Working Table Height (mm) 945 - 1105
    Sealing Bar and Shrink Film
    Sealing Bar Width (mm) 1070
    Bundle Wrappers
    Heat Tunnel Chambers (#) 2
    Layout Inline Conveyor In-feed
    In-feed Lanes (#) 1
    Pack Collation No Pack Collation
    Tapers / Sealers / Erectors
    Boxes Per Hour (#) 900
    Power
    Power Supply Three Phase
    Air Supply
    Air Pressure (Nl) 13
    Air Consumption (bar) 6
    External Dimensions
    Overall Length (mm) 3670
    Overall Width (mm) 1710
    Overall Height (mm) 2105 - 2265
    Weight (kg) 980
    Box Compatibility
    Box Height (mm) 380
    Bundle Wrapper - In Line Wrapping Machine

    In-Line Bundle Wrap Machine

    pwb-smi-006

    Enquire For Price

    Add to Quote
    Check Availability
    Download Specification PDF
    Working Table Height
    Working Table Height (mm) 945 - 1105
    Sealing Bar and Shrink Film
    Sealing Bar Width (mm) 1370
    Bundle Wrappers
    Heat Tunnel Chambers (#) 2
    Layout Inline Conveyor In-feed
    In-feed Lanes (#) 1
    Pack Collation No Pack Collation
    Tapers / Sealers / Erectors
    Boxes Per Hour (#) 720
    Power
    Power Supply Three Phase
    Air Supply
    Air Pressure (Nl) 21
    Air Consumption (bar) 6
    External Dimensions
    Overall Length (mm) 3820
    Overall Width (mm) 2010
    Overall Height (mm) 2105 - 2265
    Weight (kg) 1125
    Box Compatibility
    Box Height (mm) 380
