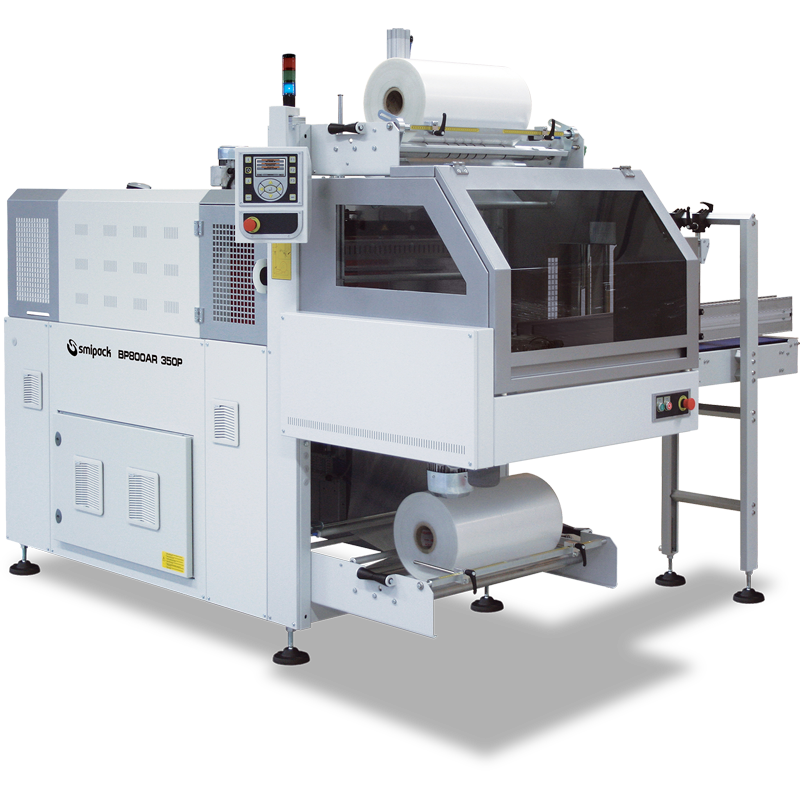

Bundle Wrapper Right-Angle

Automatic, Heat Shrink Bundler

Description

Bundle Wrapper Right-Angle

These machines are conveyor fed, and automatically cover incoming individual product with a loop of shrink film and seal them. The wrapped product then passes through the integrated heat-tunnel, which shrinks the film around the product for a secure wrap.

Videos

Shipping & Returns

Shipping

We offer fast, reliable delivery nationwide across New Zealand.

Returns

Sale items can’t be returned. For other purchases, return freight is the customer’s responsibility and a 10% handling fee may apply. Our goal is to make sure you get the right solution for your business, so if you’re unsure, chat with our team before purchasing.

View Pricing & Order
  • Shrink tunnel fitted with glass fibre bars and cooling fan.
  • Differentiated tunnel air flow control, adjustable by means of deflectors.
  • Tunnel automatic turn-off system
  • 1 Year Warranty

Features & Benefits

  • Automatic operation and pack collation
  • Multi-thrust system
  • Single chamber shrink tunnel
  • Output up to 15 packs per minute
  • Pneumatic seal bar
  • Film cut by cold blade
  • Seal bar equipped with safety device.
  • Powered upper and lower film unwinding
Models & Specifications
Image Model Number Price Each Order Quantity Availability Downloads
Buy Bundle Wrapper Right-Angle  in Bundle Wrappers from Smipack available at Astrolift NZ

Bundle Wrapper Right-Angle

pwb-smi-007

Enquire For Price

Add to Quote
Check Availability
Download Specification PDF
Bundle Wrappers
Seal Bar Size (mm) 760
Max pack height (mm) 380
Maximum output up to 15 Packs/Minute
Maximum size of film reel 750 x Ø 350 mm
Machine size 2845mm x 2500mm x 2105 - 2265mm (L x W x H)
Power supply 415V 3 phase
Heat Tunnel Chambers (#) 1
Layout Inline Conveyor In-feed
In-feed Lanes (#) 1
Pack Collation Pack Collation
Air pressure 6 Bar
Required air 11.5 Nl/p*
Working board height (mm) 945 - 1105 mm
Machine net weight 770 Kg
Advised film: LDPE 20 - 100 µ
Buy Bundle Wrapper Right-Angle  in Bundle Wrappers from Smipack available at Astrolift NZ

Bundle Wrapper Right-Angle

pwb-smi-008

Enquire For Price

Add to Quote
Check Availability
Download Specification PDF
Bundle Wrappers
Seal Bar Size (mm) 760
Max pack height (mm) 380
Maximum output up to 20 Packs/Minute
Maximum size of film reel 750 x Ø 350 mm
Machine size 3675 x 2500 x 2105 - 2265mm (L x W x H)
Power supply 415V 3 phase
Heat Tunnel Chambers (#) 2
Layout Inline Conveyor In-feed
In-feed Lanes (#) 1
Pack Collation Pack Collation
Air pressure 6 Bar
Required air 11,5 Nl/p*
Working board height (mm) 945 - 1105 mm
Machine net weight 950 Kgs
Advised film: LDPE 20 - 100 µ
