Box Taper SD (Semi-Auto)

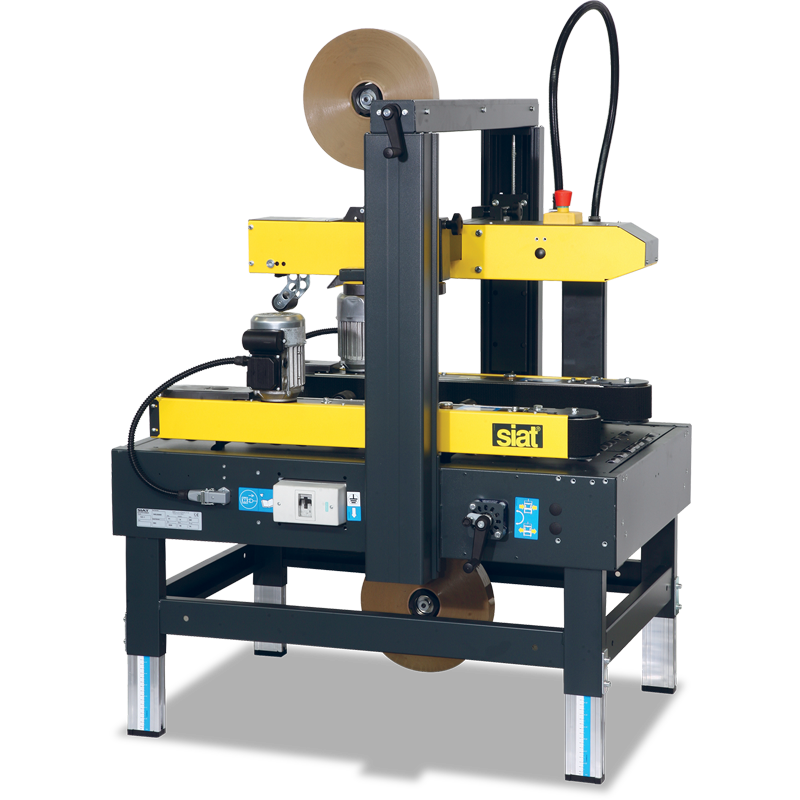

The PTS-SIA-009 and PTS-SIA-010 are semi-automatic "Fixed Format" case tapers. These machines are used for long production runs where boxes/cases of a fixed dimension need to be sealed. It is a heavy duty machine that is built for sealing large volumes of cases in a production line. Adjustments to the machine are carried out manually. Self-adhesive tape strips are automatically applied to the middle line at both the top and bottom of the box. These tapers are easy to use and adjustments are simple and quick.

The minimum width for boxes in the PTS-SIA-010 is slightly wider than the PTS-SIA-009 meaning the  PTS-SIA-010 can work with either the K11R 50mm taping unit or the K12R 75mm taping unit. The PTS-SIA-009, however, works only with the K11R 50mm taping unit.

Features

MECHANICAL FEATURES

  • Box Production: Uniform Box Sizes
  • Delivery: Some Assembly Required
  • Finish: Powder-coated
  • Top and Bottom Sealing
  • Side driven belts with self-centring screw adjustment device
  • Manual adjustment caters to various box sizes
  • Also suitable for narrow boxes
  • Sturdy frame
  • Easy operation and adjustment
  • 2 x K11R taping unit - 50 mm width
  • 2 x kW 0.13 Motors
  • Extruded aluminium telescopic legs with measurement guide



SAFETY

CE

  • Emergency stop button

WARRANTY

  • 1 Year Warranty

OPTIONAL ACCESSORIES

  • Extension Roller Table: RN04-75-500
  • Extension Roller Table Brackets: S470837800A
  • 2 x K12R taping unit- 75mm
  • Higher legs (AS80)
  • Castors (AS77)
  • Roller Conveyor (RG)
  • Extendable conveyor
  • Inkjet Printer (K-125/K-250)
  • Three phase power

Models (2)

CODE PTS-SIA-009 PTS-SIA-010
Box Length (mm) 150 - Any 150 - Any
Box Width (mm) 130 - 500 105 - 500
Box Height (mm) 100 - 500 100 - 500
Power Supply (Phase) Single Phase Single Phase
Packs Per Hour (#) 1200 1200
Tape Width (mm) 50 50
Length (mm) 938 938
Width (mm) 1140 1140
Height (mm) 1250 - 1590 1250 - 1590
Weight (kg) 185 185
Height (Platform) (mm) 480 - 820 480 - 820
Tape Roll Max (mm) 410 410
Tape Roll Core (mm) 76 76
