Buy Bundle Wrapper Semi-automatic  in Bundle Wrappers from Smipack available at Astrolift NZ

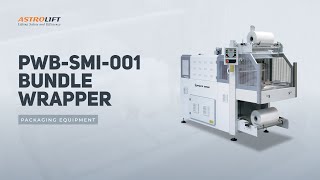

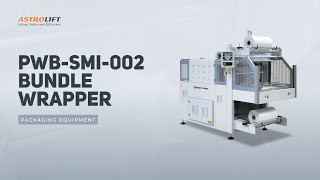

pwb-smi-001, Bundle Wrapper Semi-automatic , Bundle Wrappers from Astrolift pwb-smi-002, Bundle Wrapper Semi-automatic , Bundle Wrappers from Astrolift
Model Number

PWB-SMI-001

PWB-SMI-002

Sealing Bar Length (mm)

550

760

Heat Tunnel Chambers (#)

1

1

Layout

Inline Manual In-feed

Inline Manual In-feed

In-feed Lanes (#)

1

1

Pack Collation

No Pack Collation

No Pack Collation

Boxes Per Hour (#)

600

600

Power Supply

Single Phase

Single Phase

Air Pressure (Nl)

14.5

21

Air Consumption (bar)

6

6

Overall Length (mm)

2565

2665

Overall Width (mm)

1200

1410

Overall Height (mm)

2105 - 2265

2105 - 2265

Weight (kg)

530

605

Box Length (mm)

25 - 300

25 - 410

Box Width (mm)

40 - 400

40 - 630

Box Height (mm)

5 - 380

5 - 380



Enquire For Price

+ Quote

Enquire For Price

+ Quote
Specification PDF

The operator manually positions products in the machine entrance, where the push-button operation automatically loops shrink-wrap over the group of products and seals it, then shrinks them in the built-in heat tunnel.

  • Delivery: Some Assembly Required
  • Finish: Powder-coated
  • No Pack Collation - Can wrap products individually or in single row groups.
  • Motorised upper and lower film unwinding
  • Pneumatic product pusher, activated by two buttons
  • Sealing bar equipped with safety sensors
  • Power and control section made up of:
    • Inverter
    • 16 digital input/output command modules
    • Analog inputs command modules
  • Allows simple and accurate control of all current operations:
    • Storing of 20 different working cycles
    • Speed adjustment of the shrink wrapper and tunnel conveyors by means of an inverter
  • Adjustable tunnel airflow
  • Tunnel conveyor equipped with heat-resistant glass fibre bars which ensure that:
    • The conveyor stiffness grants gradability to the products passing though for a compact and well-shrunk pack
    • The conveyor has a capacity of 30kg per product
    • The conveyor bars never get rusted
    • The maintenance is easy and low-cost
  • Oven cooling system
  • Low power consumption
  • Complies to: CE Certifications
  • 1 Year Warranty
