    Bundle Wrapper In-line (Collation)

    Collation Heat Shrink Bundler

    Description

    Fed with an in-feed conveyor, these machines automatically collate incoming products into groups before covering with a loop of shrink film. This bundle is then passed through the built-in heat tunnel to form an easy-to-manage and securely wrapped bundle.

    Videos

    Buy Bundle Wrapper In-line (Collation) in Shrink Wrapping available at Astrolift NZ

    Shipping & Returns

    Shipping

    We offer fast, reliable delivery nationwide across New Zealand.

    Returns

    Sale items can’t be returned. For other purchases, return freight is the customer’s responsibility and a 10% handling fee may apply. Our goal is to make sure you get the right solution for your business, so if you’re unsure, chat with our team before purchasing.

    View Pricing & Order
    • Automates Row and Column Product Bundles From a Single Feed
    • Integrated Single Chamber Heat Tunnel
    • 1 Year Warranty

    Need replacement parts?

    Astrolift stocks genuine components and offers nationwide onsite technician service support to minimise downtime and keep your operation moving.


    Get a Free Quote

    Features & Benefits

    • Some Assembly Required
    • Powder-coated
    • Pack collation - Able to create multiple row and column groups of products
    • Single chamber heat tunnel
    • Infeed conveyor and tunnel belt controlled by Inverter
    • Product presence photocells
    • Motorised upper and lower film unwinding
    • Automatic, semiautomatic, pass-through mode
    • Pneumatic sealing bar and cutting blade
    • Sealing bar equipped with safety sensors
    • Storing of 20 different working cycles
    • Automatic control of the bar height
    • Speed adjustment of the shrink wrapper and tunnel conveyors
    • Adjustable tunnel airflow
    • Tunnel conveyor equipped with heat resistant glass fibre bars which ensure that:
    • The conveyor has a capacity of 30kg per product
    • The maintenance is easy and low cost
    • Oven cooling system
    • Low power consumption
    Models & Specifications
    Image Model Number Price Each Order Quantity Availability Downloads

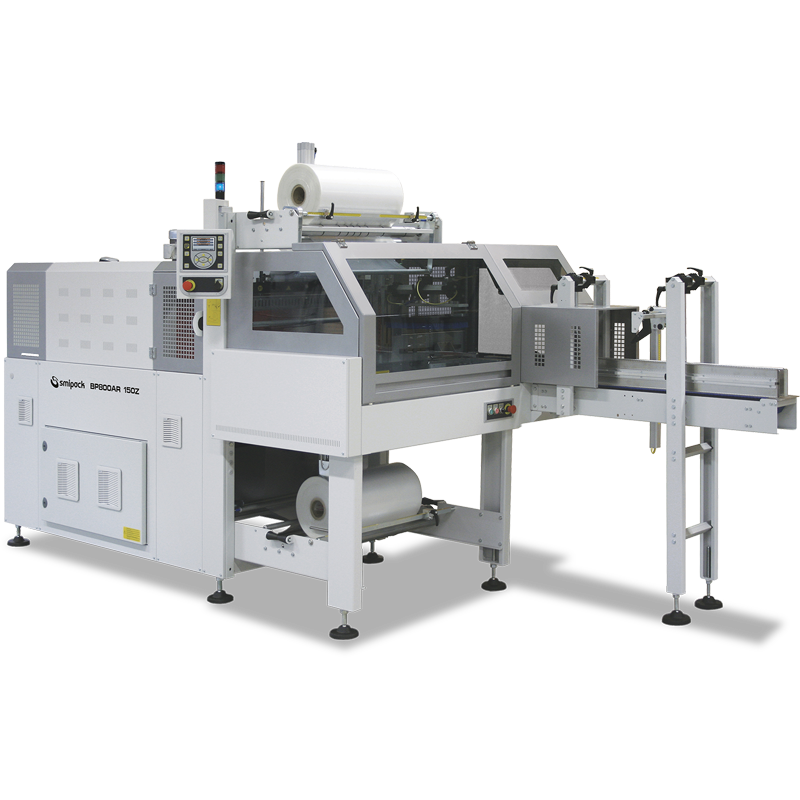

    InLine Bundle Wrapping Machine

    Bundle Wrapper In-line (Collation)

    pwb-smi-012

    Enquire For Price

    Add to Quote
    Check Availability
    Download Specification PDF
    Working Table Height
    Working Table Height (mm) 940 - 1100
    Sealing Bar and Shrink Film
    Sealing Bar Width (mm) 760
    Bundle Wrappers
    Heat Tunnel Chambers (#) 1
    Layout Inline Conveyor In-feed
    In-feed Lanes (#) 1
    Pack Collation Pack Collation
    Tapers / Sealers / Erectors
    Belt Drive Type Side-Drive
    Boxes Per Hour (#) 900
    Power
    Power Supply Single Phase
    Air Supply
    Air Pressure (Nl) 12
    Air Consumption (bar) 6
    External Dimensions
    Overall Length (mm) 4015
    Overall Width (mm) 1860
    Overall Height (mm) 2095 - 2255
    Weight (kg) 960
    Box Compatibility
    Box Height (mm) 380
