Model Number

QDZ-PAL-001

QDZ-PAL-002

QDZ-PAL-003

QDZ-PAL-004

Capacity (kg)

500

500

800

800

Power Supply

Single Phase

Single Phase

Single Phase

Single Phase

Air Pressure (Nl)

6 - 7

6 - 7

6 - 7

6 - 7

Air Consumption (bar)

36

36

72

72

Pallet Length (Max) (mm)

1200

1200

1200

1200

Pallet Width (Max) (mm)

800

1000

800

1000

Pallet Height (Max) (mm)

150

150

150

150

Pallet Capacity (#)

15

15

25

25



Enquire For Price

+ Quote

Enquire For Price

+ Quote

Enquire For Price

+ Quote

Enquire For Price

+ Quote
Specification PDF

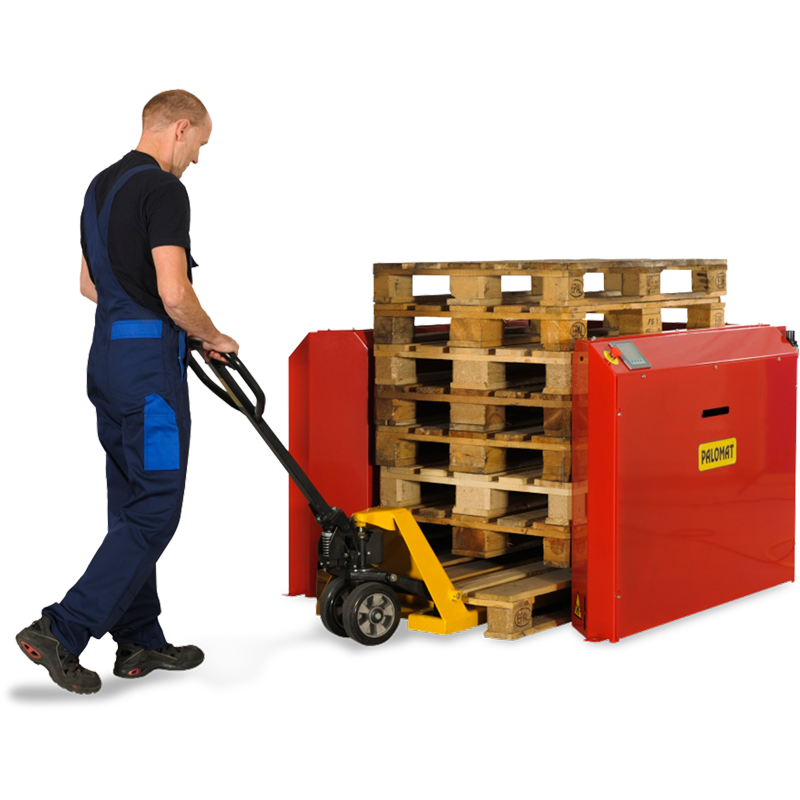

This pallet stacker is for adding pallets to the bottom of the stack one-by-one, making it an excellent choice for areas needing a safe, reliable and permanent pallet stacking. As pallets are finished with, they are added easily to the bottom of the stack by a pallet truck.

After enough pallets have been added to form a stack (15-25 pallets depending on your safety frame) with a pallet truck, the entire stack can be removed by pallet jack or forklift to store elsewhere.

Note: Image shows the base unit with an optional pallet safety frame.

  • Finish: Powder-coated
  • Keeps pallets organised in tidy stacks
  • Optimised Pallet Flow
  • Increased Efficiency
  • SMC Air Components
  • Siemens S-1200 Controls
  • 1 Year Warranty

OPTIONAL ACCESSORIES

  • Red, Blue, or Grey Colour
  • Custom Colours Available on Request
  • Stainless Steel Construction
  • Galvanised Construction
  • Safety Frame
