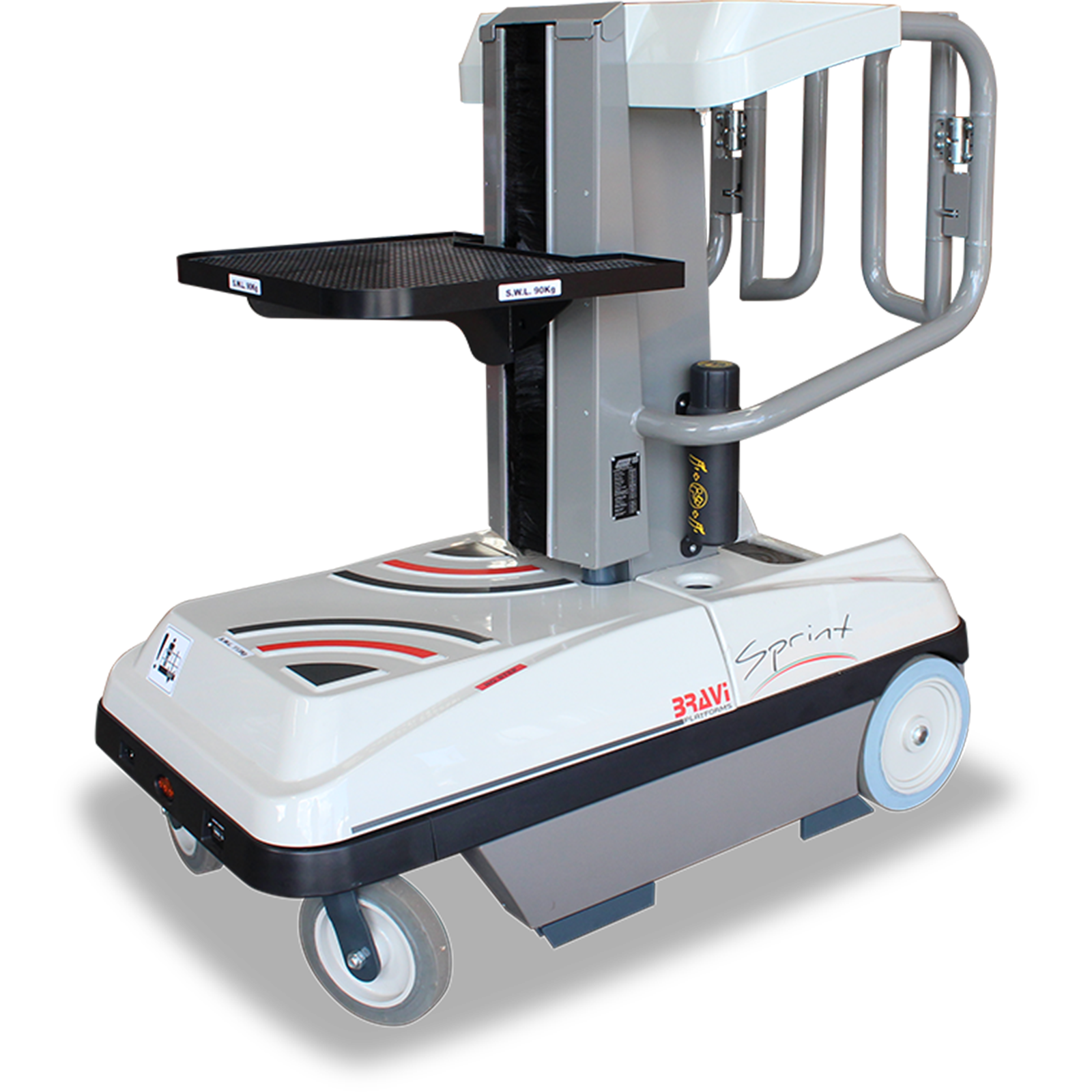

Elevating Work Platform - Sprint
Model Number

AWZ-BRV-002

Base Platform Capacity (kg)

90

Height Stowed (mm)

1441

Stowed Operator Platform Height (mm)

356

Max Platform Height (mm)

3350

Max Working Height (mm)

5350

Shelf Capacity (kg)

113

Cargo Tray Adjustable Distance (mm)

580

Operator Platform Capacity (kg)

130

Travel Speed (km/h)

1.2 - 5

Maximum Gradability (%)

2

Turning Radius (mm)

0 - 1600

Overall Length (mm)

1500

Overall Width (mm)

808

Overall Height (mm)

1441 - 4435

Weight (kg)

660



Enquire For Price

+ Quote
Specification PDF

The Sprint has the biggest savings in operator time and effort for small elevating work platforms. This unit features powered driving of speeds up to 5 km/h when lowered and 1.2 km/h when raised, removing the need for the operator to leave the platform during their work. The electrical column and cargo tray can also be raised and lowered while driving, saving additional time during operation.

  • Battery Type: Built-in Rechargeable
  • Driving: Electric
  • Finish: Powder-coated
  • Lifting: Electric
  • Battery: N. 04 6V 245Ah@20h
  • The chainless design and extruded alloy components require zero maintenance
  • All operations are accessible without the user’s hands having to leave the accelerator
  • Easy to read screen shows battery charge left
  • Electrically adjustable cargo shelf with a lifting distance of 580mm
  • Complies to: Independently accessed by PILZ NZ for Compliance with AS/NZS 1418.10:2011
  • Saloon style gates onto the platform for user safety
  • Dual foot switches and hand sensors stop all operations if either a hand or a foot leave the switches or handles during raising or driving
  • In case of emergencies or a dead battery, additional controls are located at the base of the machine to operate it from ground level
  • 1 Year Warranty
