Material Lifter - 4.56m (With Wheels) by GUIL

Telescopic Winch Lifter

View Models

European Made Telescopic Vertical Lift Tower - Engineered in Spain

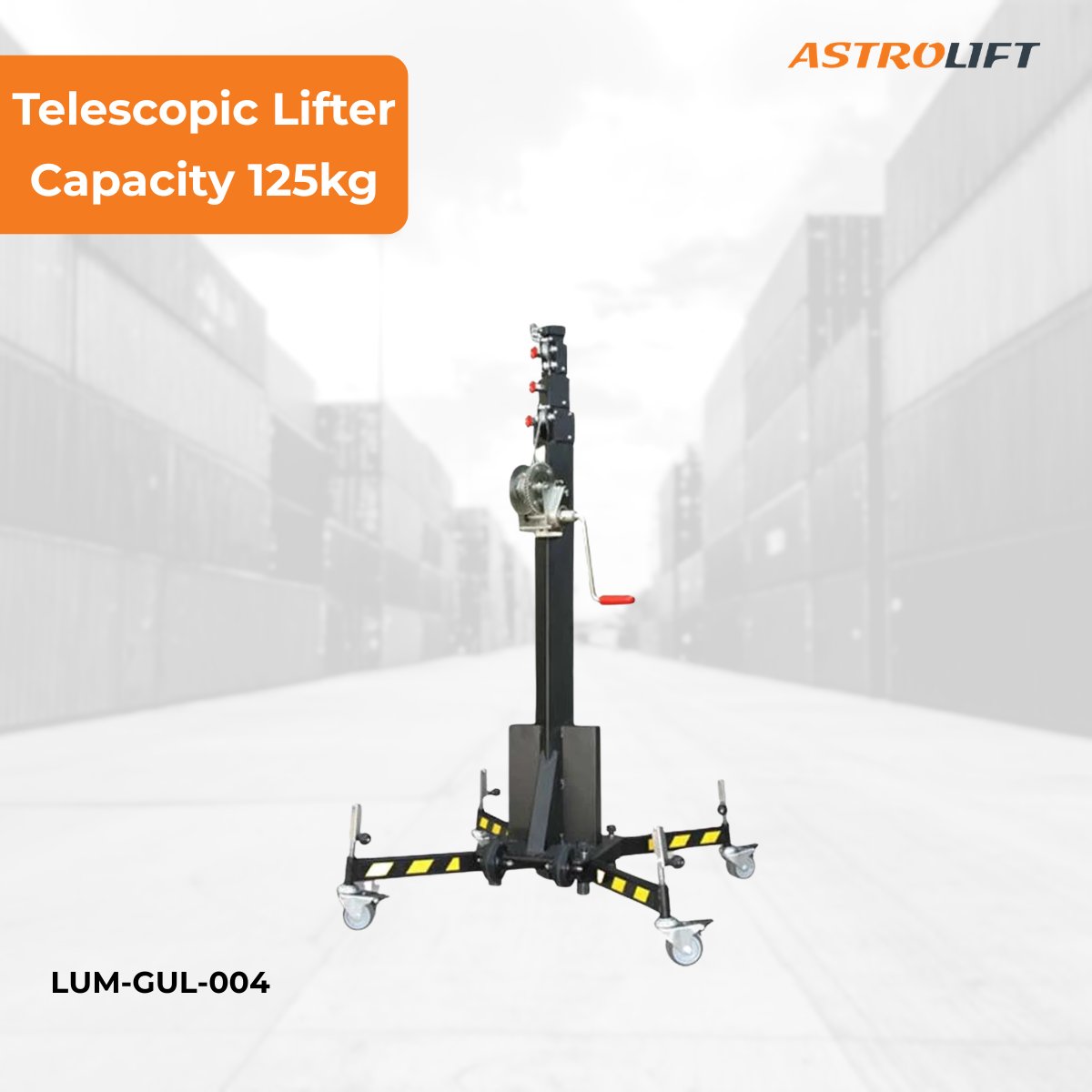

125kg Capacity Lift Tower
1 Year Warranty


Model Number	LUM-GUL-004
Maximum Lift Height (mm)	4560
Working Height (mm)	1450
Minimum Load (kg)	5
Net Weight (kg)	37

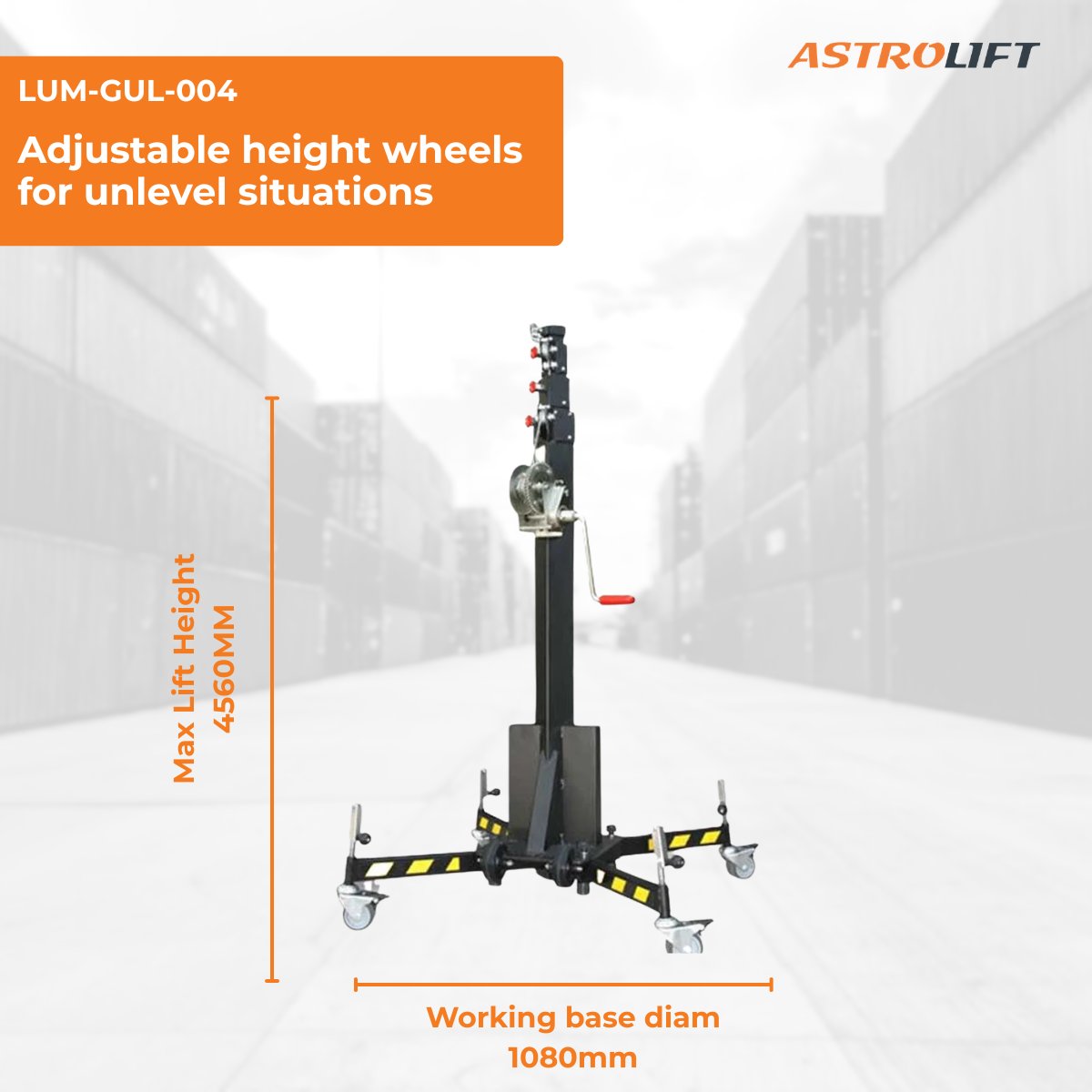

Working Base - Diameter (mm)	1080

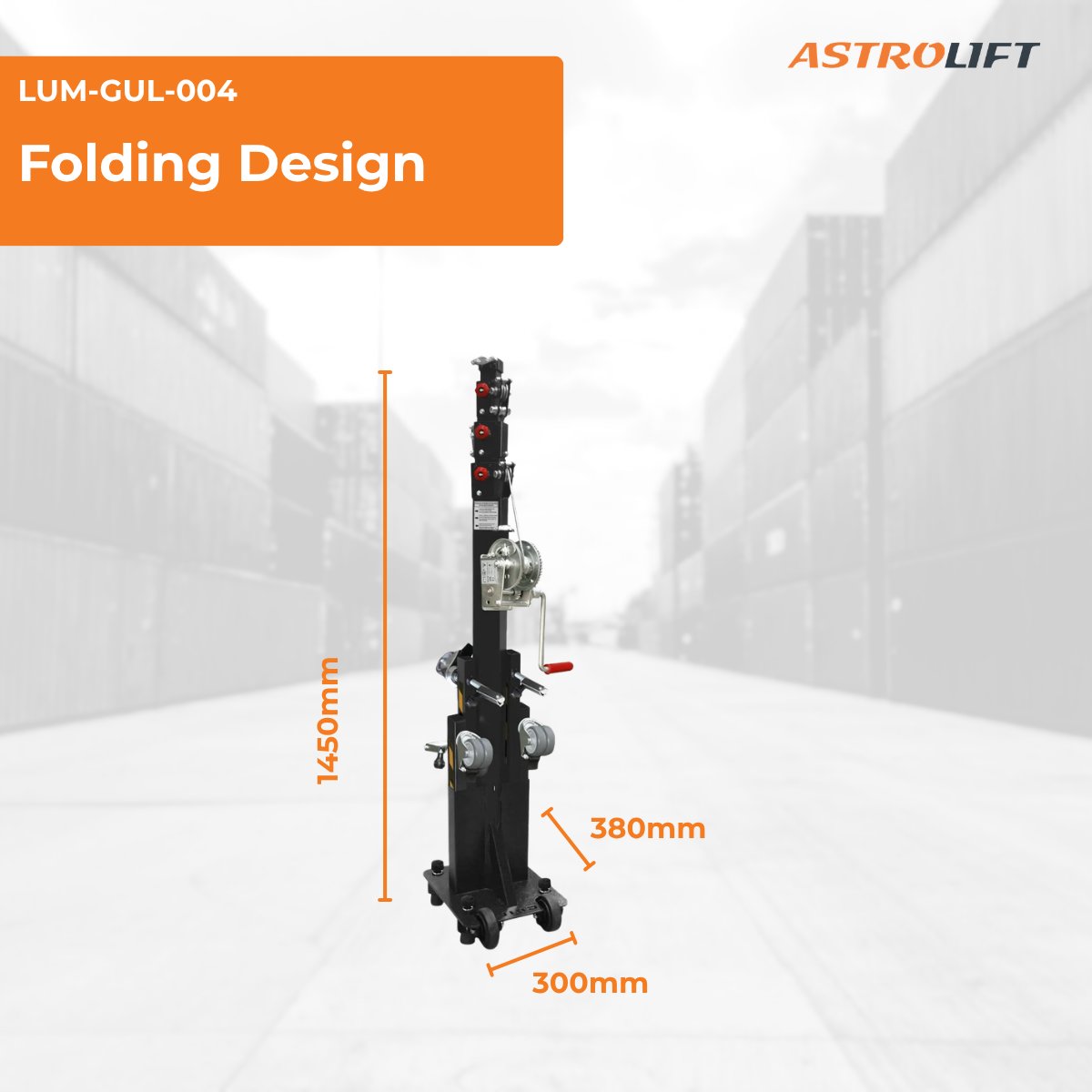

Folded Dimensions (mm)	300 x 380 x 1450
Capacity (kg)	125
	Enquire For Price Add to Quote
Specification PDF	Download

Accessories

Material Lifter - 3.50m by GUIL

LUM-GUL-003

GUIL Material Load Lifter

The design of the LUM-GUL-004 material Lifter ensures it is user-friendly and functional, complete with a compact base (umbrella style) - 38 x 30cm and attached swivel castors to make it the ideal tool for any kind of lifting task that must be done in limited working space either indoor or outdoor.

The wind-up stand consists of 4 telescopic sections and comes with a spirit level for efficient adjustment of the mast’s sections. These mast sections are blocked by means of safety bolts, which are an essential element when using this lift to block & unblock the mast sections at the desired height.

Base: Compact base offers corridor and single-door access, is provided with 2x heavy duty castors for easy handling and positioning (wheelbarrow style).

Manufactured in Spain by GUIL

GUIL Model: ELC-730/R

Features & Benefits

Maximum stability, safety and durability
Compact design - easy maneuverability and loading in vehicles
Fast and easy set-up with no tools requires (no loose parts)
Brake winch that blocks the load in place when the handle is released
Easily used by one technician with its reduced size and weight
For industrial, commercial and domestic installations - both indoor and outdoor use
Manufactured with the most advanced technology & welding processes, going through rigorous quality controls - made in Spain. This guarantees the lightweight, sturdiness and maneuverability requirements needed to lifts loads.
The LUM-GUL-004 Lifter is equipped with two safety systems which guarantee maximum reliability and strength:
Automatic Brake Winch which is a hand winch with a auto-blocking system to ensure the load remains in position whenever the handle is released
Automatic Safety Blocking System which is a safety system with holes so that in the extreme case of cable breakage, the safety trigger would automatically slide into one of these holes - blocking the load and stopping it from falling (preventing displacement)

View All GUIL Products

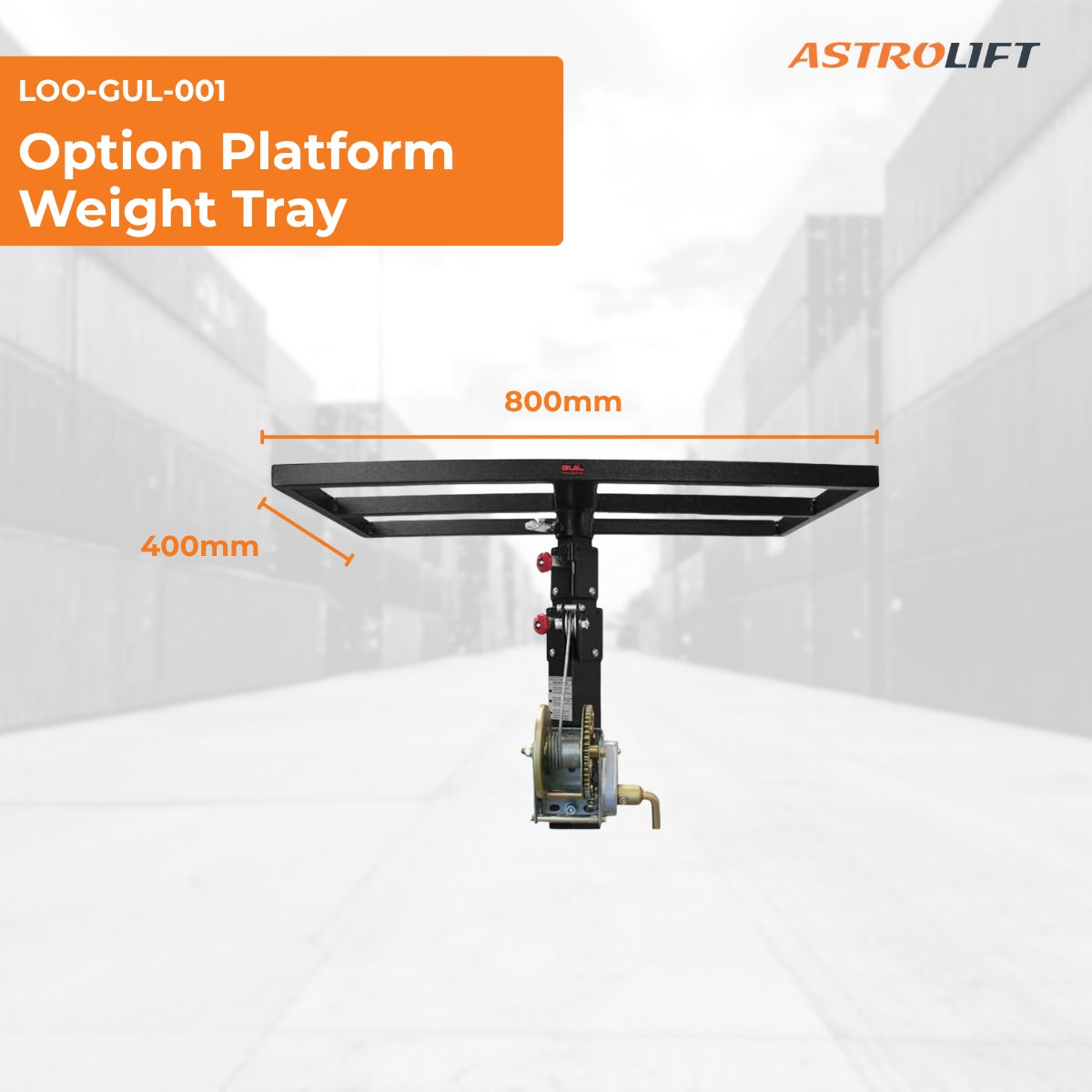

Platform Weight Tray for Material Lifter
