Buy Electric Straddle Stacker  in Pallet Stackers from Astrolift NZ
Model Number

LPS-NBL-004

LPS-NBL-005

Capacity (kg)

1500

1500

Fork Span (mm)

200 - 720

200 - 720

Fork Length (mm)

1150

1150

Lift Height (mm)

50 - 2850

50 - 4950

Free Lift Height (mm)

150

1660

Lifting Speed (m/s)

0.082 - 0.152

0.141 - 0.212

Lowering Speed (m/s)

0.108 - 0.095

0.196 - 0.178

Mast Height (mm)

1950 - 3370

2220 - 5520

Electromagnetic Brake

Yes

Yes

Travel Speed (km/h)

6

6

Maximum Gradability (%)

12

12

Turning Radius (mm)

1585

1718

Overall Length (mm)

2019

2140

Overall Width (mm)

795

1000

Overall Height (mm)

3370

5520

Weight (kg)

1270

1700



Enquire For Price

+ Quote

Enquire For Price

+ Quote
Specification PDF

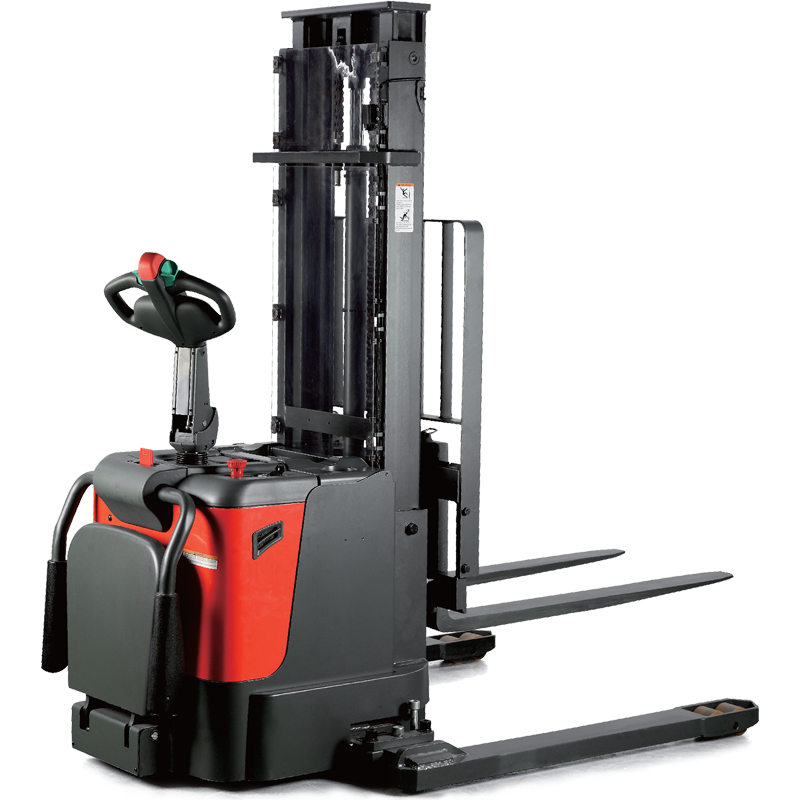

Straddle pallet stackers are designed for lifting pallets that have bottom boards. Where a regular stacker's legs go under the pallet, lifting the forks would snap the bottom boards off as they catch on the legs. This straddle stacker has legs that go around the outside of the pallet to avoid this issue. This machine features both electrically-powered lifting and driving, removing all effort from the operator to move heavy loads. Operators are able to navigate narrow spaces with this stacker's compact design and tight turning radius.

  • Battery Type: Built-in Rechargeable
  • Driving: Electric
  • Finish: Powder-coated
  • Leg Position: Straddle
  • Lifting: Electric
  • High contrast display shows battery charge with hours running meter
  • Onboard storage areas for documents and tools
  • AC drive system is designed to maintain high run times and levels of performance throughout work cycles, offering excellent acceleration and high travel speeds, loaded or unloaded
  • Variable speed control on the tiller allowing for precise movements
  • Ergonomic driving handle prevents unnecessary strain on users
  • Simple, electric controls to raise and lower the forks
  • Polyurethane (PU) [braked] wheels and rollers are durable, non-marking and quiet
  • Robust battery casing keeps battery protected from the environment around it
  • Emergency stop buttons on the tiller and main body component
  • Sound level at driver's ear in accordance with EN 12053
  • 1 Year Warranty
