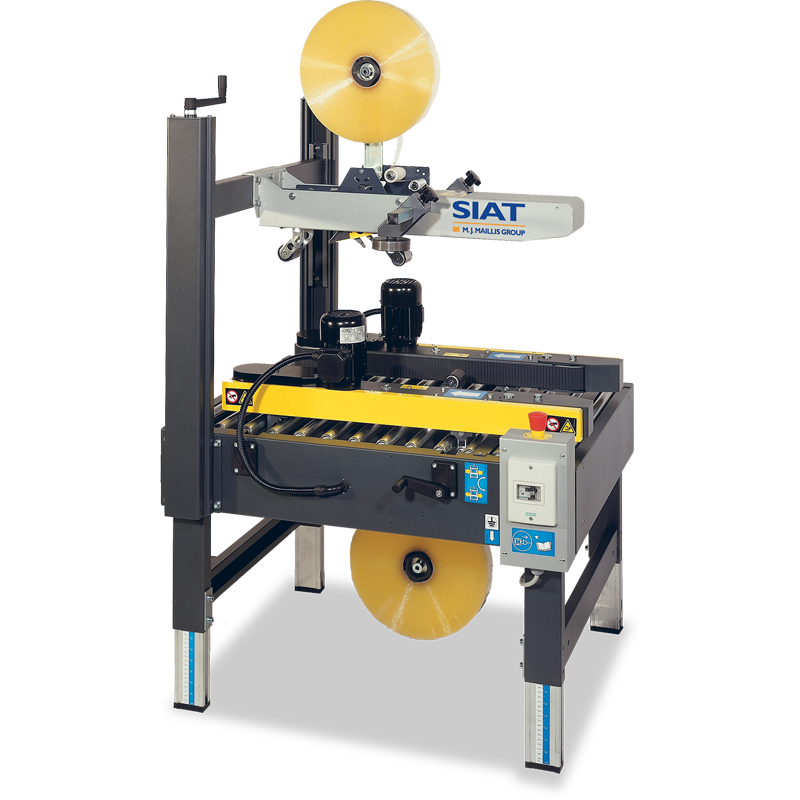

Box Taping Machine

Manual adjustment semi-automatic carton sealer. Easy to use and simple to adjust, enables every operator to start the production in just minutes. The double-side driving belt for the transportation of the cases and the taping head K11 (50mm) or K12 (75mm), allows perfect closing and sealing of the box.

Features

MECHANICAL FEATURES

  • Box Production: Uniform Box Sizes
  • Delivery: Some Assembly Required
  • Finish: Powder-coated
  • Top and Bottom Sealing
  • Side drive belts (2x50mm width each)
  • ON/OFF magneto-thermic switch
  • High Quality Italian unit
  • Height adjustable legs
  • 2000 meter reel tape holder
  • Flap compression rollers
  • Side width adjustable drive

SAFETY

C E 392

  • Locked stop emergency button

WARRANTY

  • 1 Year Warranty

OPTIONAL ACCESSORIES

  • Extension Roller Table: RN04-75-500
  • Extension Roller Table Brackets: S470837800A
  • Higher legs (AS80)
  • Castors (AS77)
  • Roller Conveyor (RG)
  • Extendable conveyor
  • Inkjet Printer (K-125/K-250)

Models (2)

CODE PTS-SIA-002 PTS-SIA-003
Box Length (mm) 150 - Any 150 - Any
Box Width (mm) 150 - 500 105 - 500
Box Height (mm) 100 - 500 100 - 500
Power Supply (Phase) Single Phase Single Phase
Sealing Speed (m/min) 20 20
Packs Per Hour (#) 1200 1200
Tape Width (mm) 50 / 75 50
Length (mm) 975 975
Width (mm) 900 900
Height (mm) 1260 - 1600 1260 - 1600
Weight (kg) 130 130
Platform Height (mm) 485 - 825 485 - 825
