Buy Drum Tipper (Angled Legs - Electric-lift) in Drum Handling from Astrolift NZ
Buy Drum Tipper (Angled Legs - Electric-lift) in Drum Handling from Astrolift NZ
Model Number

DLZ-NUL-004

Capacity (kg)

400

Overall Width (mm)

400

Overall Length (mm)

1360

Overall Height (mm)

2175

Lift Height (mm)

2100 to drum center

Rotation Angle (degrees)

180

Drive Type

Manual

Lift Type

Battery Electric

Drum Types

Steel & Most Plastic

Front Wheel Diameter (mm)

150

Rear Wheel Diameter (mm)

150



Enquire For Price

Add to Quote
Specification PDF

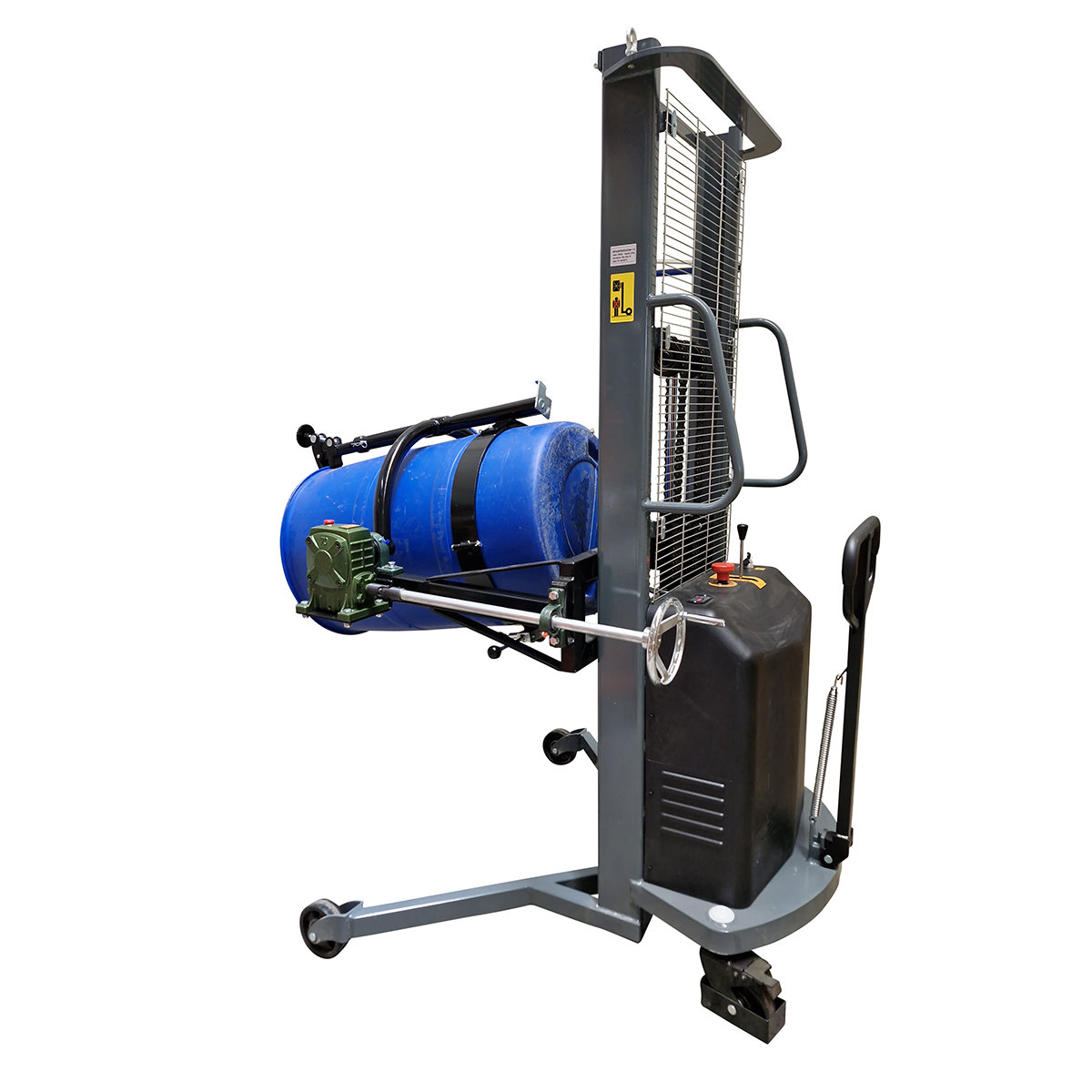

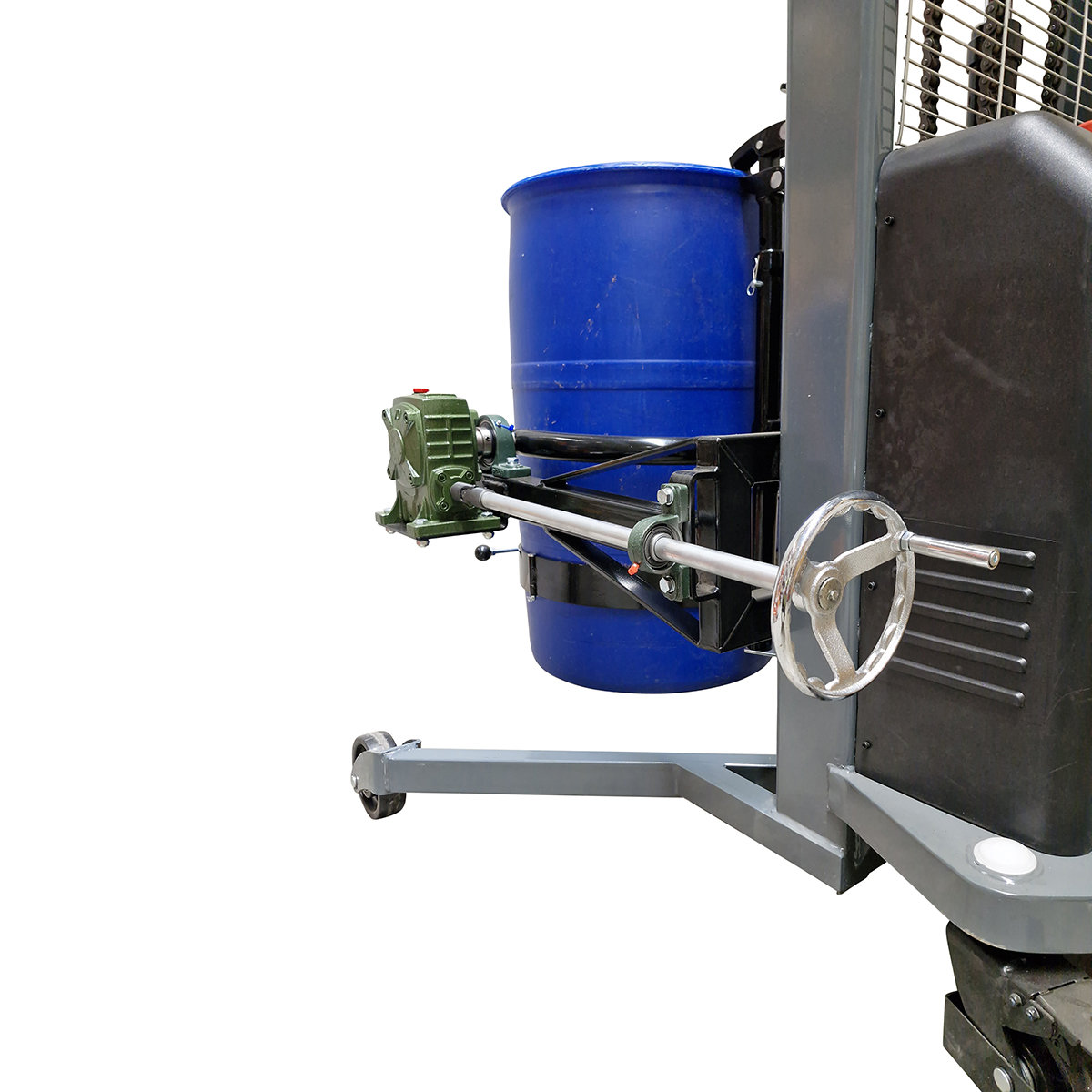

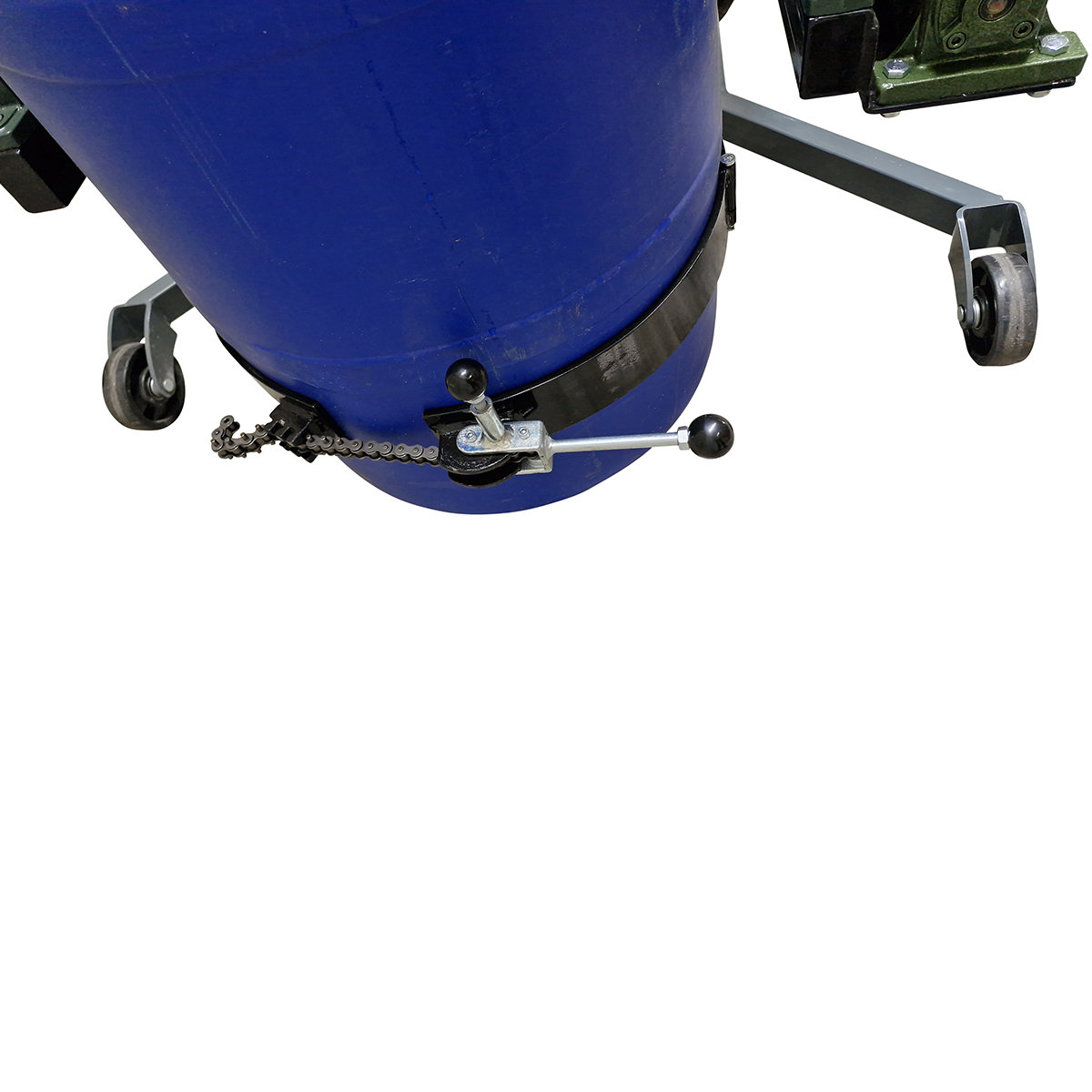

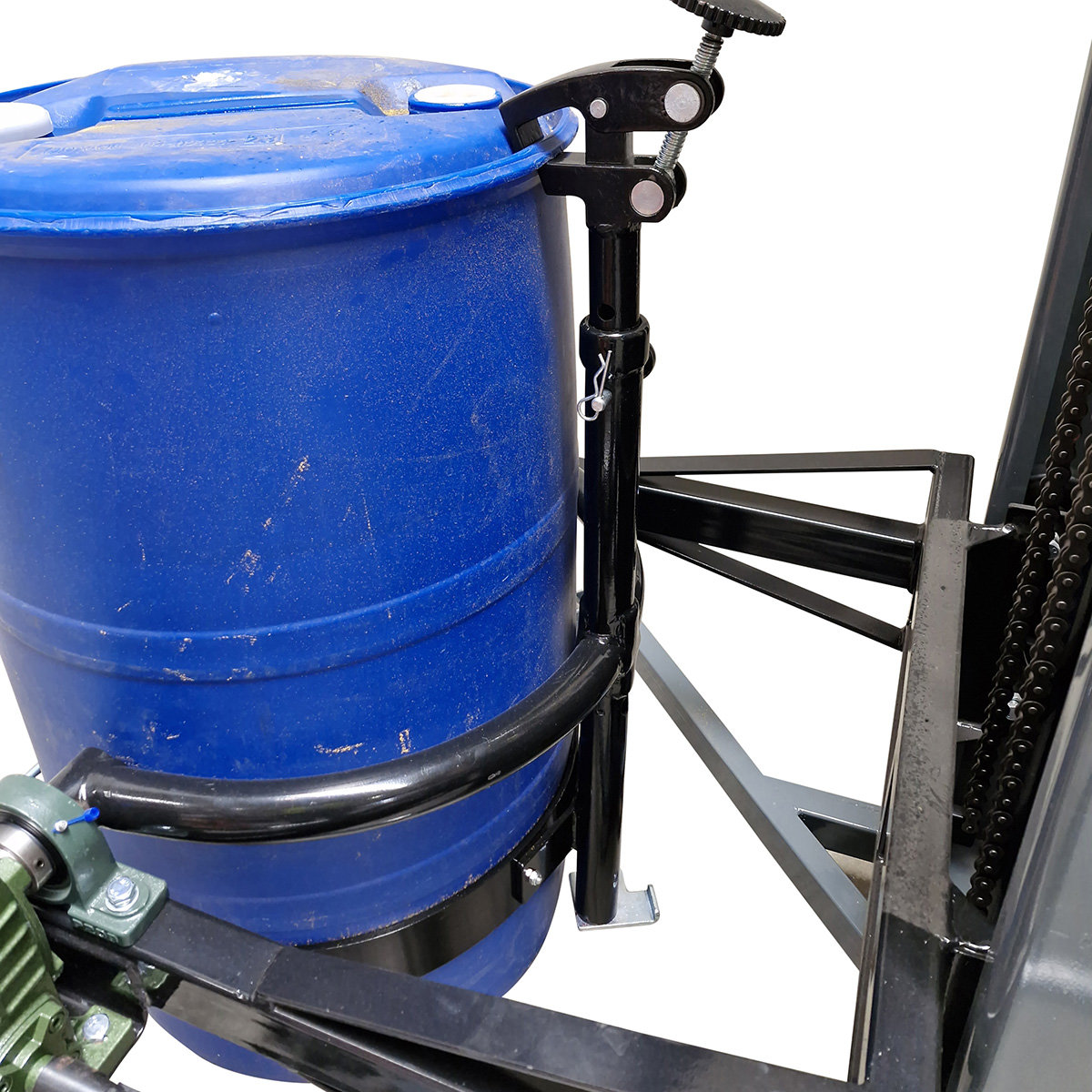

This drum lifter can pick up drums and then tip them forwards for decanting. The beak grip catches on the lip of the drum and uses the drum's own weight to clamp it securely into place. Once the beak grip is secured firmly, the strap is tightened around the drum , securing it in place ready for lifting & Tipping.

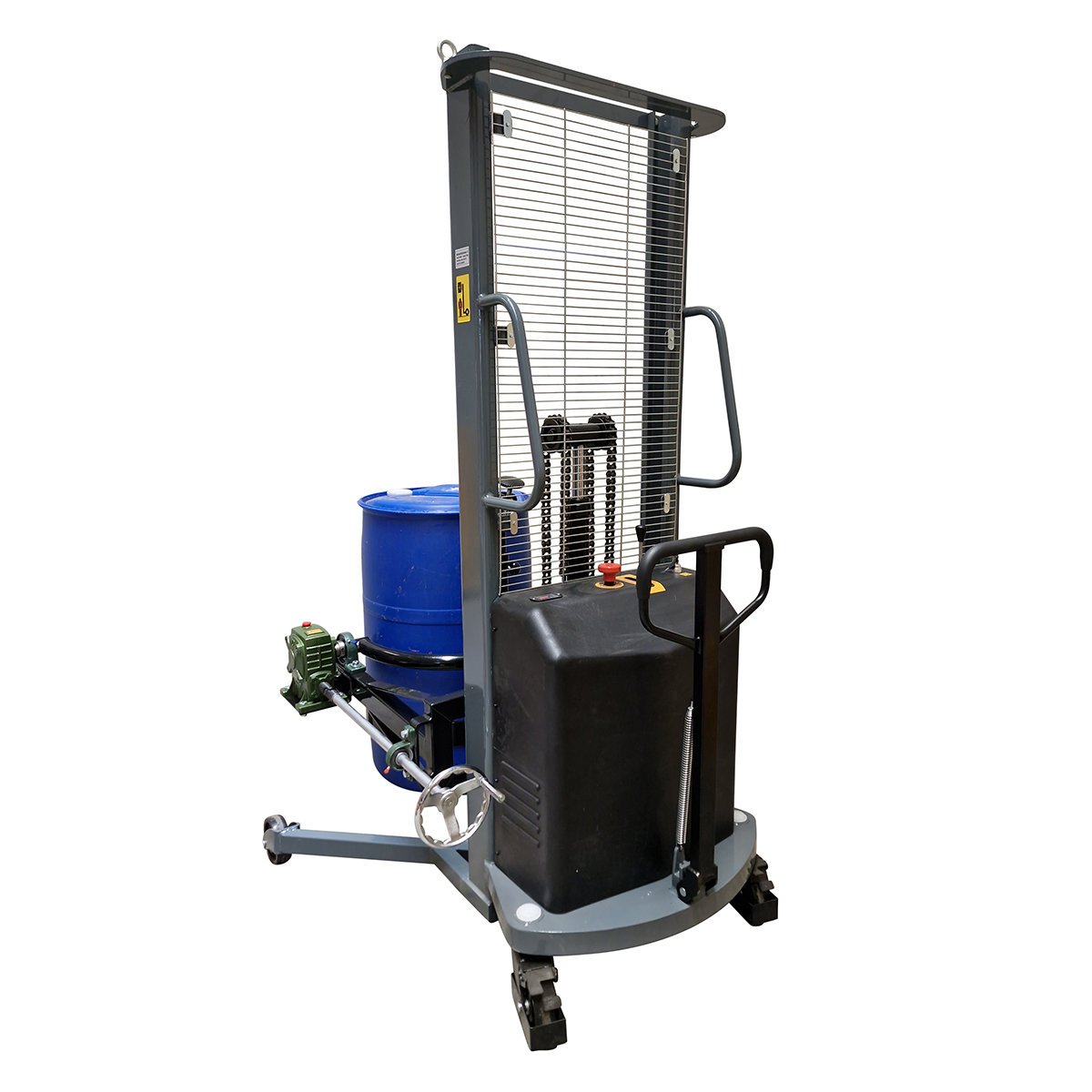

The angled legs on this machine allow it to roll up to the corner of a pallet or platform to pick up or put down a drum. This machine has a built-in battery unit for powered lifting and lowering, speeding up your workflow. This unit is pushed around manually to manoeuvre it into place.

Features & Benefits

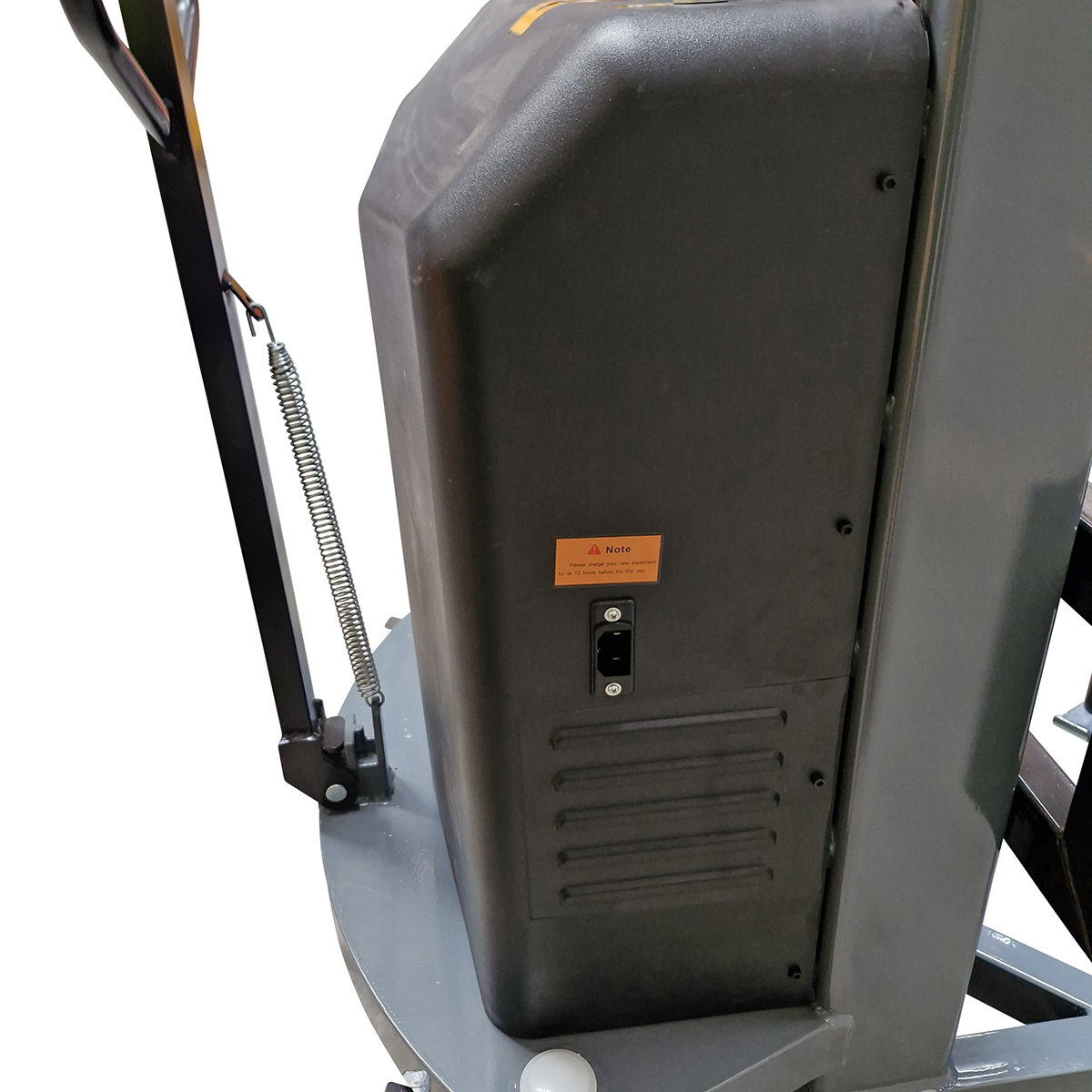

  • Built-in Rechargeable Battery
  • Powder-coated Finish

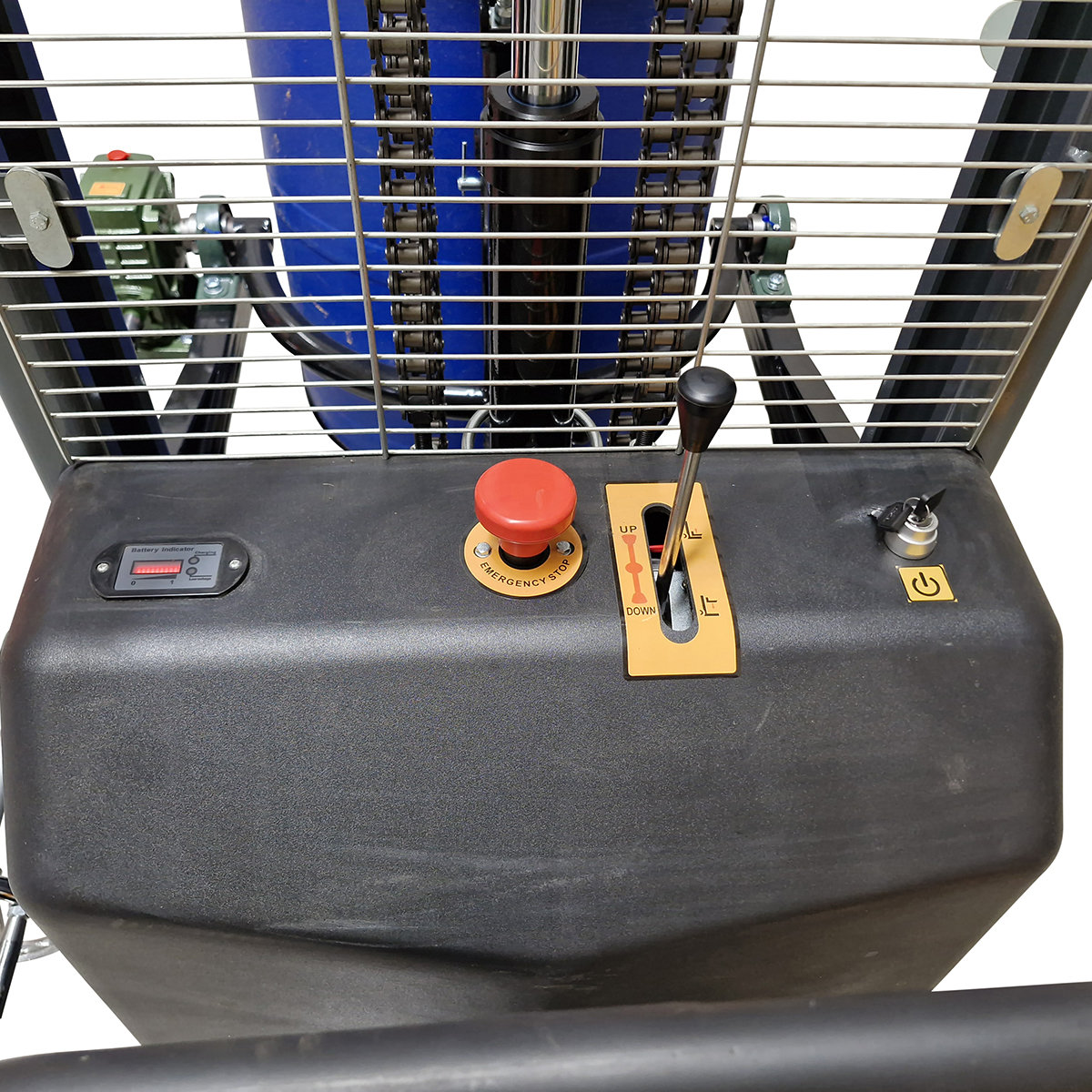

  • Battery Electric Lift & Lowering
  • High quality 12 V DC Powerpac
  • Suitable for Steel Drums & Some Plastic drums
