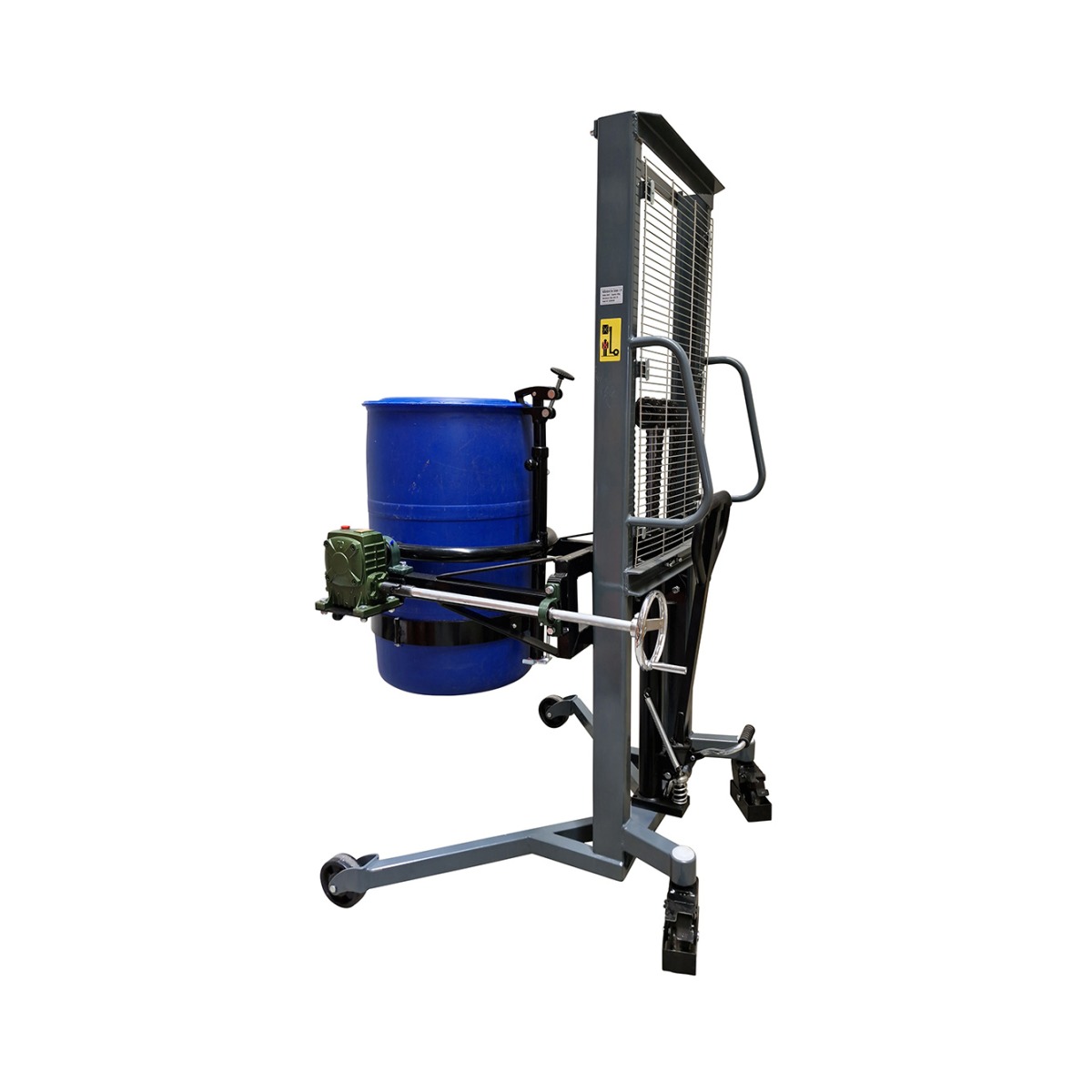

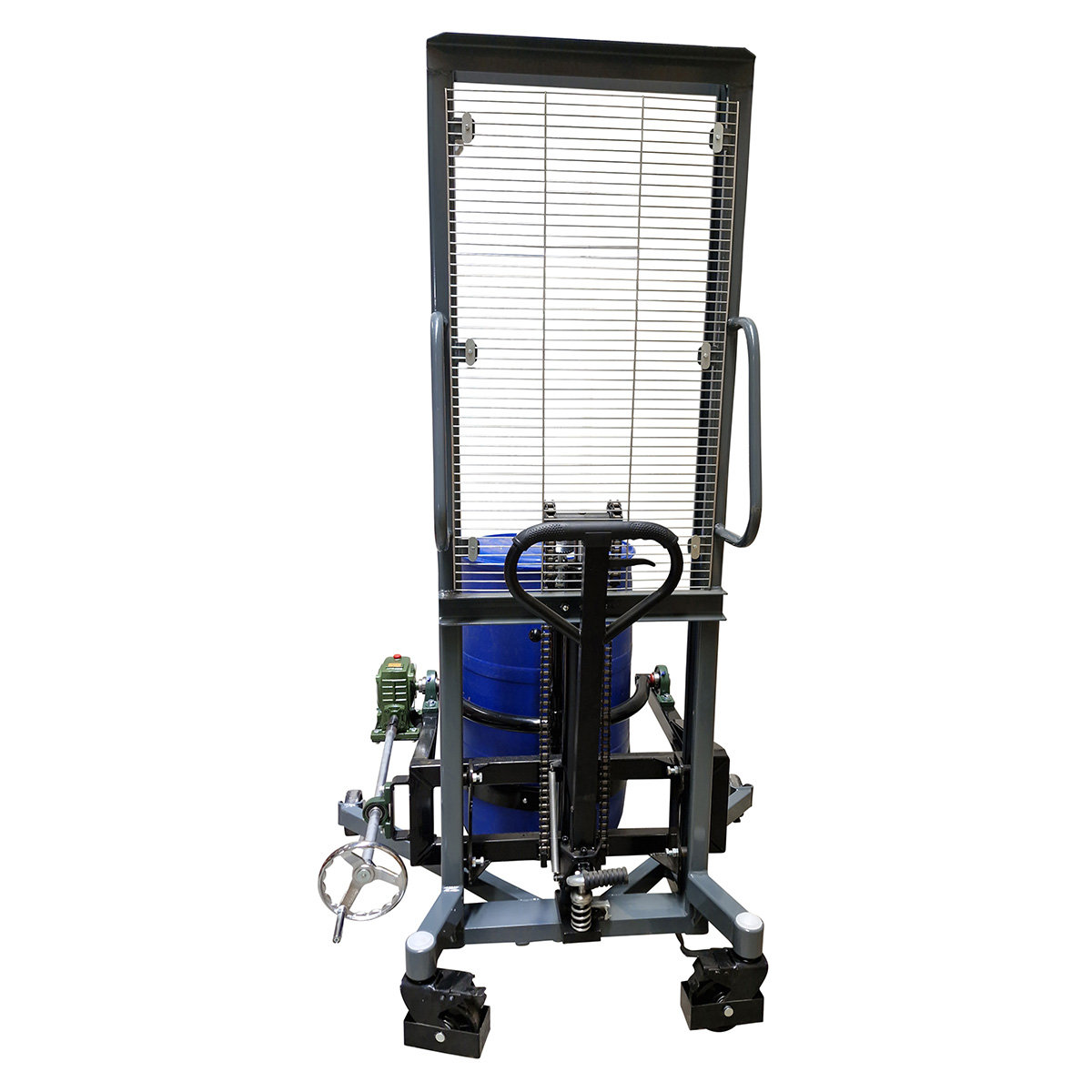

Drum Tipper with Angled Legs
Buy Drum Tipper (Angled Legs) in Drum Handling from Astrolift NZ
Model Number


Capacity (kg)


Lift Height (Drum Centre) (mm)

719 - 1771


Enquire For Price

Add to Quote
Specification PDF

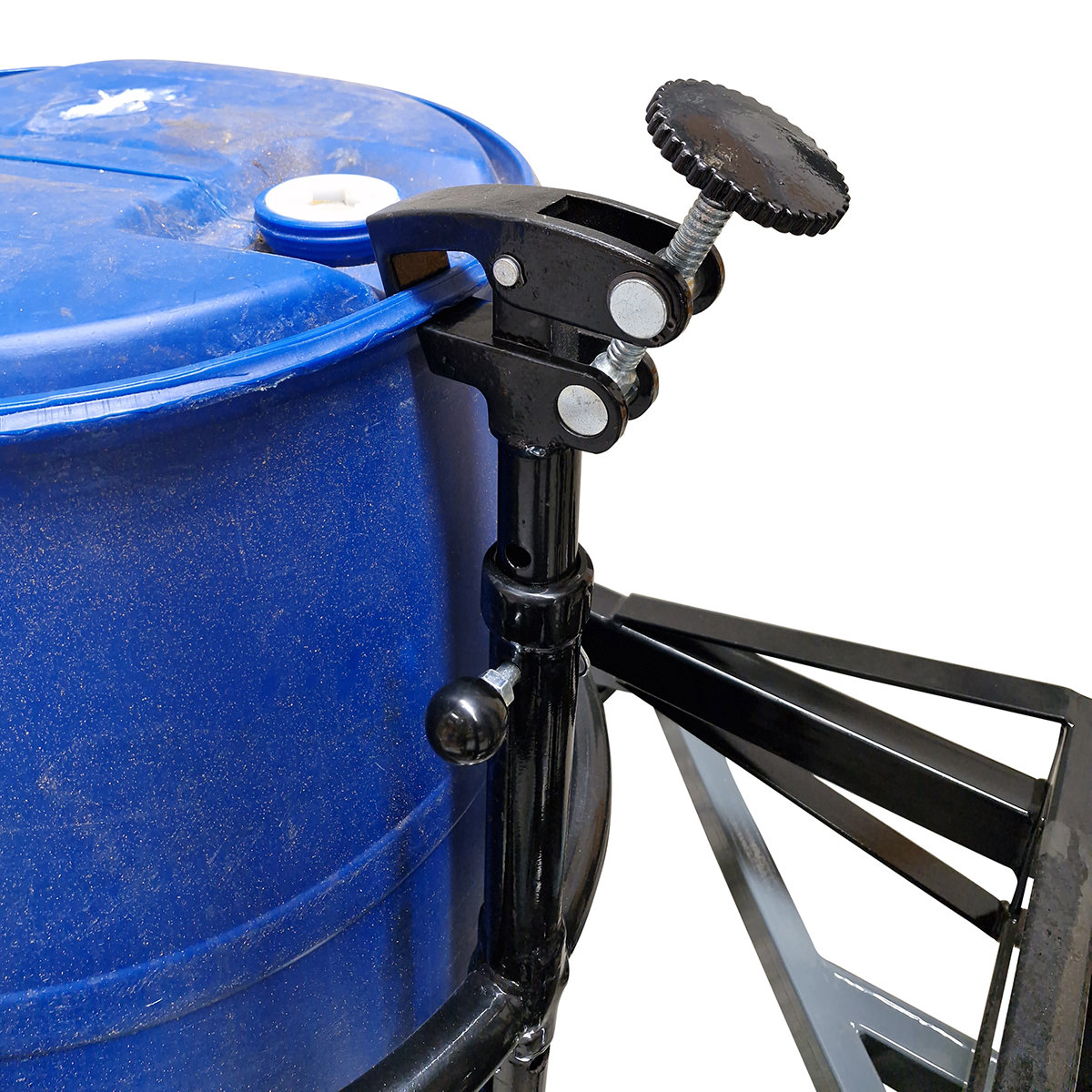

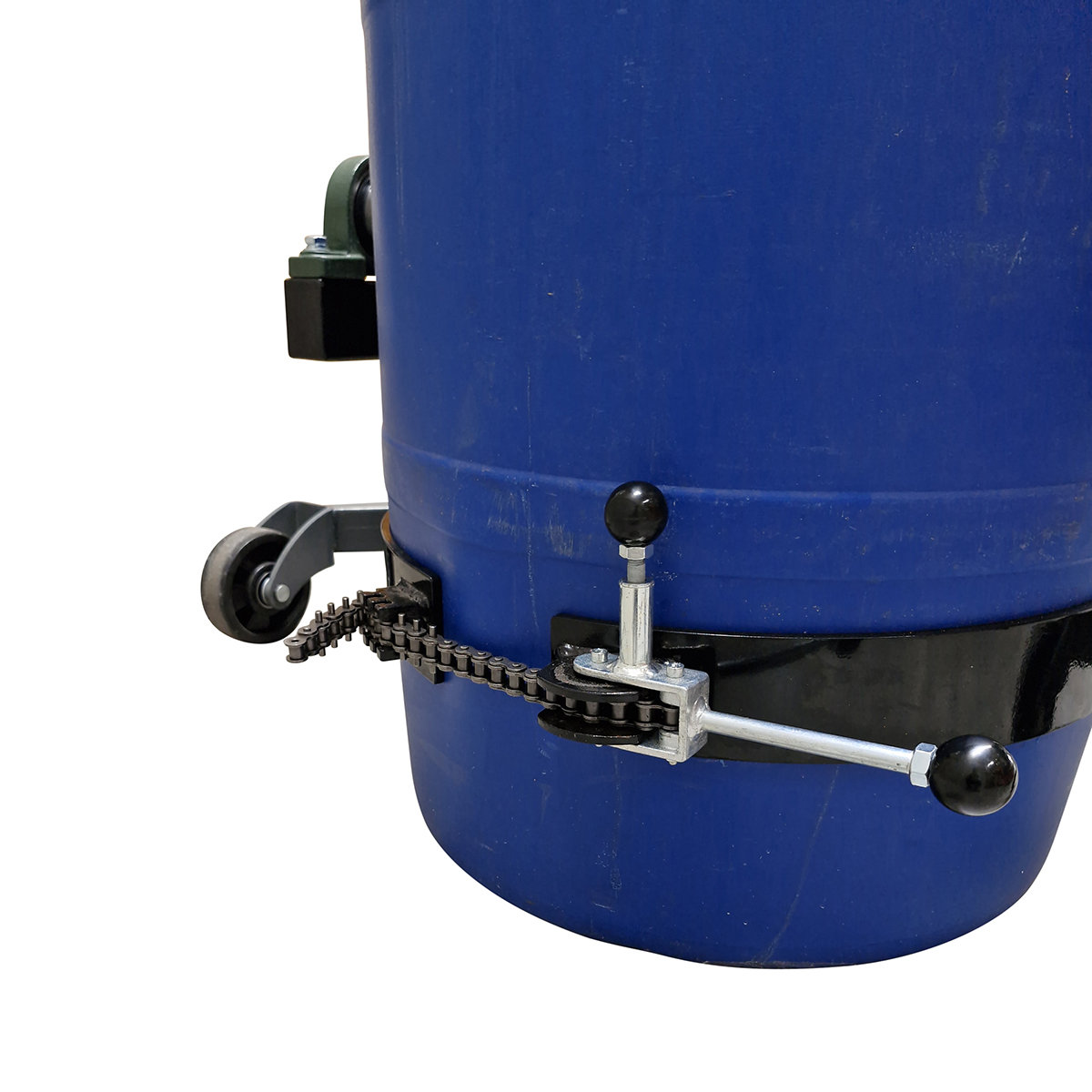

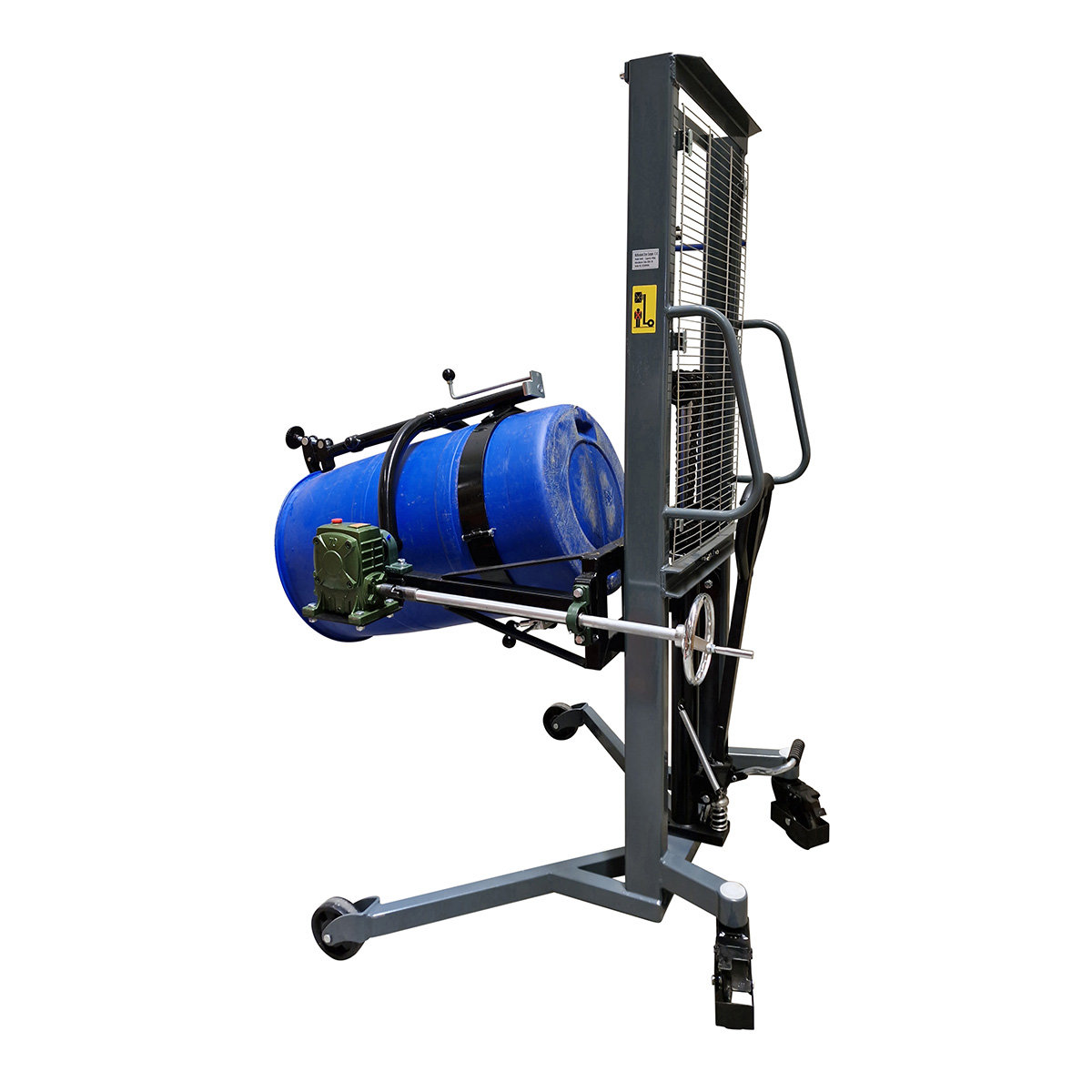

This drum lifter can pick up drums and then tip them forwards for decanting. The beak grip catches on the lip of the drum and uses the drum's own weight to clamp it securely into place. Once the beak grip is secured firmly, a spring-loaded claw is clipped under the bottom rim of the drum, securing it in place ready for lifting.

The angled legs on this machine allow it to roll up to the corner of a pallet or platform to pick up or put down a drum. This machine is manual operated and can be pushed around manually to manoeuvre it into place.

Features & Benefits

  • Powder-coated

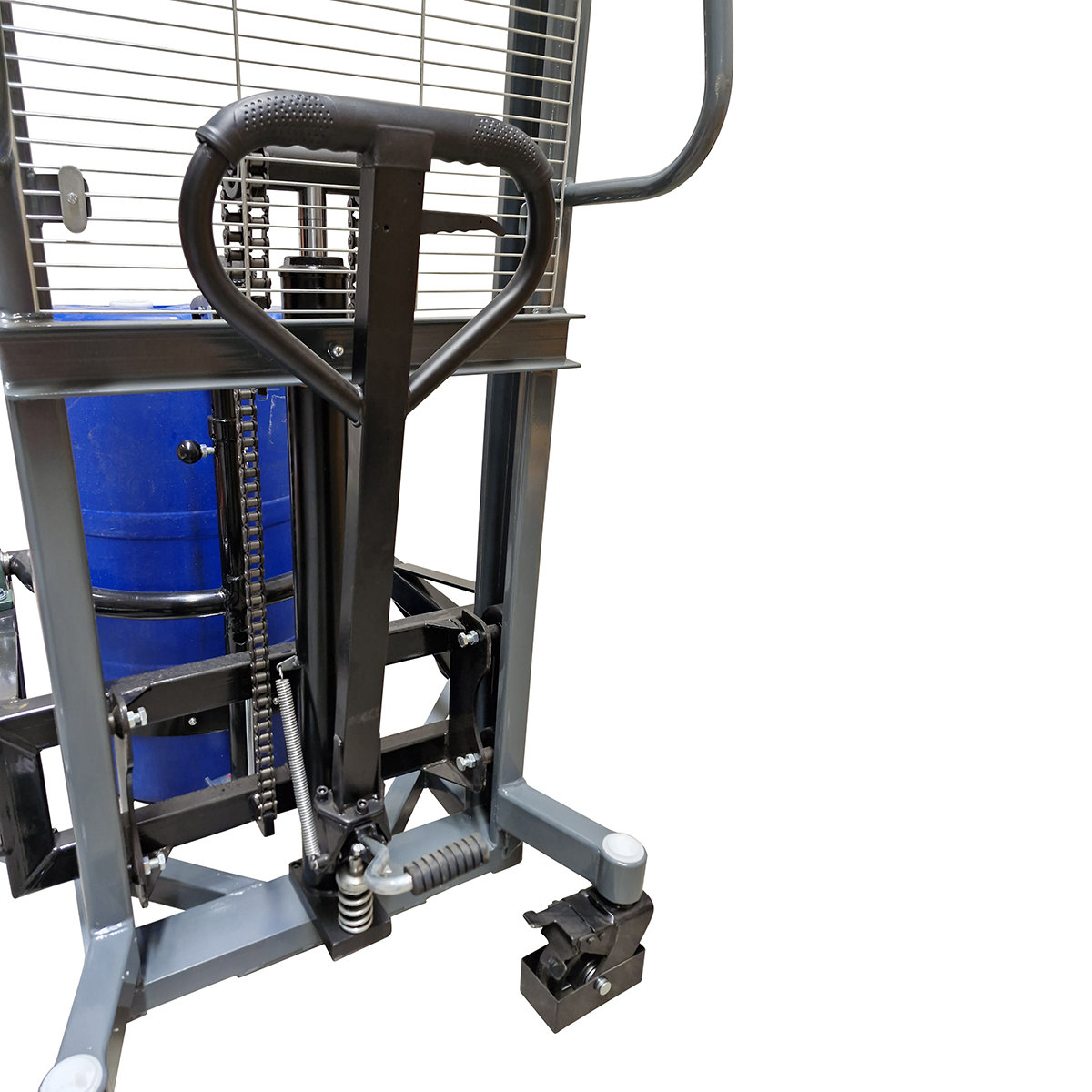

  • Easy to use ergonomic pump handle
  • Simple manual operation
  • Suitable for plastic or metal drums which have a lip or rim
  • Clever beak grip device
