Pallet Stacker 500kgs

500kg Electric Pallet Lifter

Description

Battery Electric Pallet Stacker - 500kg Capacity

The Battery Electric Pallet Stacker with it 500kg Capacity is a versatile and efficient material handling solution designed to streamline workplace operations. This manually propelled, compact yet robust machine is equipped with a powerful battery electric motor for lifting and a rechargeable battery, providing user-friendly and quiet operation suitable for a wide variety of uses.



Stacker for material handling and logistics operations

Overall, the Battery Electric Pallet Stacker with a 500kg Capacity offers efficient, user-friendly, and reliable performance, making it an essential tool for material handling and logistics operations in warehouses, distribution centers, and manufacturing facilities.



Shipping & Returns

Shipping

We offer fast, reliable delivery nationwide across New Zealand.

Returns

Sale items can’t be returned. For other purchases, return freight is the customer’s responsibility and a 10% handling fee may apply. Our goal is to make sure you get the right solution for your business, so if you’re unsure, chat with our team before purchasing.

View Pricing & Order
  • Battery Powered Lift
  • Adjustable Forks
  • Built in Charger
  • 1 Year Warranty

Features & Benefits

  • Built-in Rechargeable battery
  • Manually propelled
  • Powder-coated finish
  • Electric raise/lower
  • Battery indicator light
  • Adjustable fork spread suitable for small pallets
  • Highly maneuverable allows it to be used in narrow aisles or small spaces
  • Ergonomic driving handle prevents unnecessary strain on users
  • Simple, electric controls to raise and lower the forks

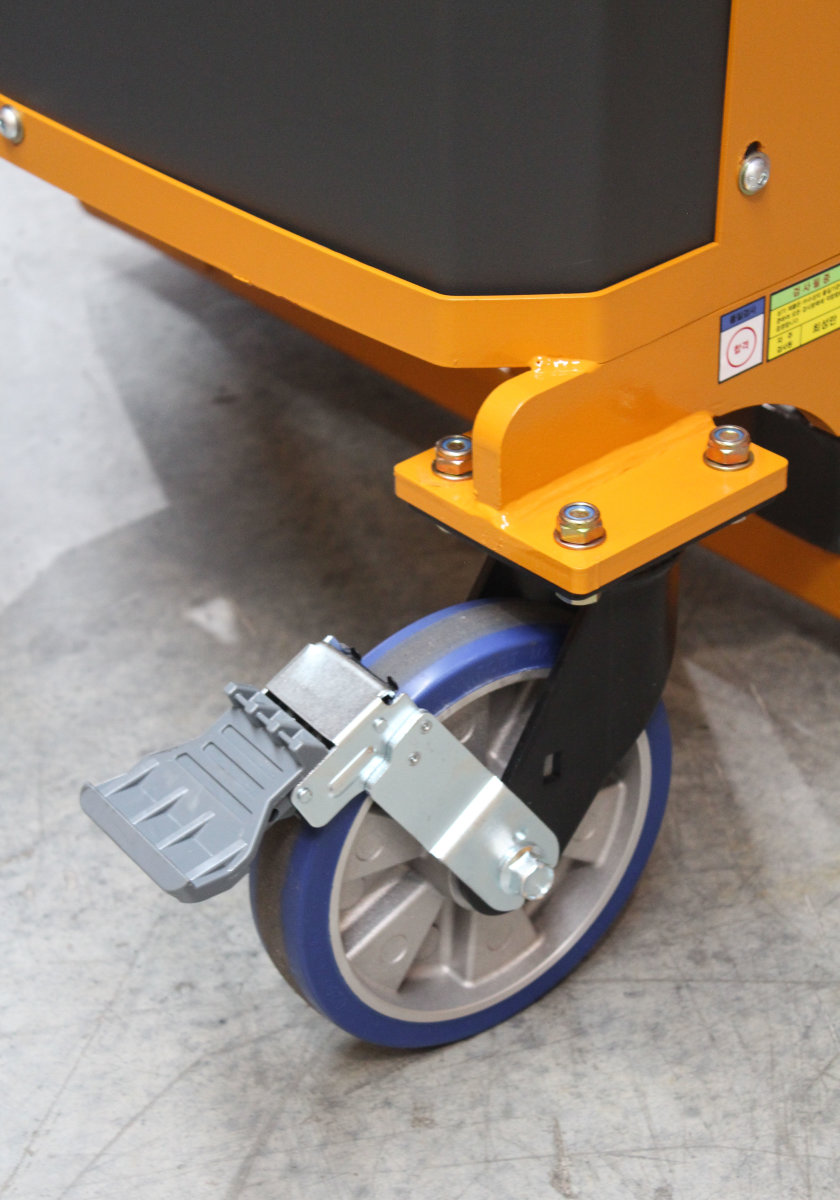

  • Braked wheels and rollers
  • Safety guarding keeps the operator safe from moving parts
Models & Specifications
Image Model Number Price Each Order Quantity Availability Downloads

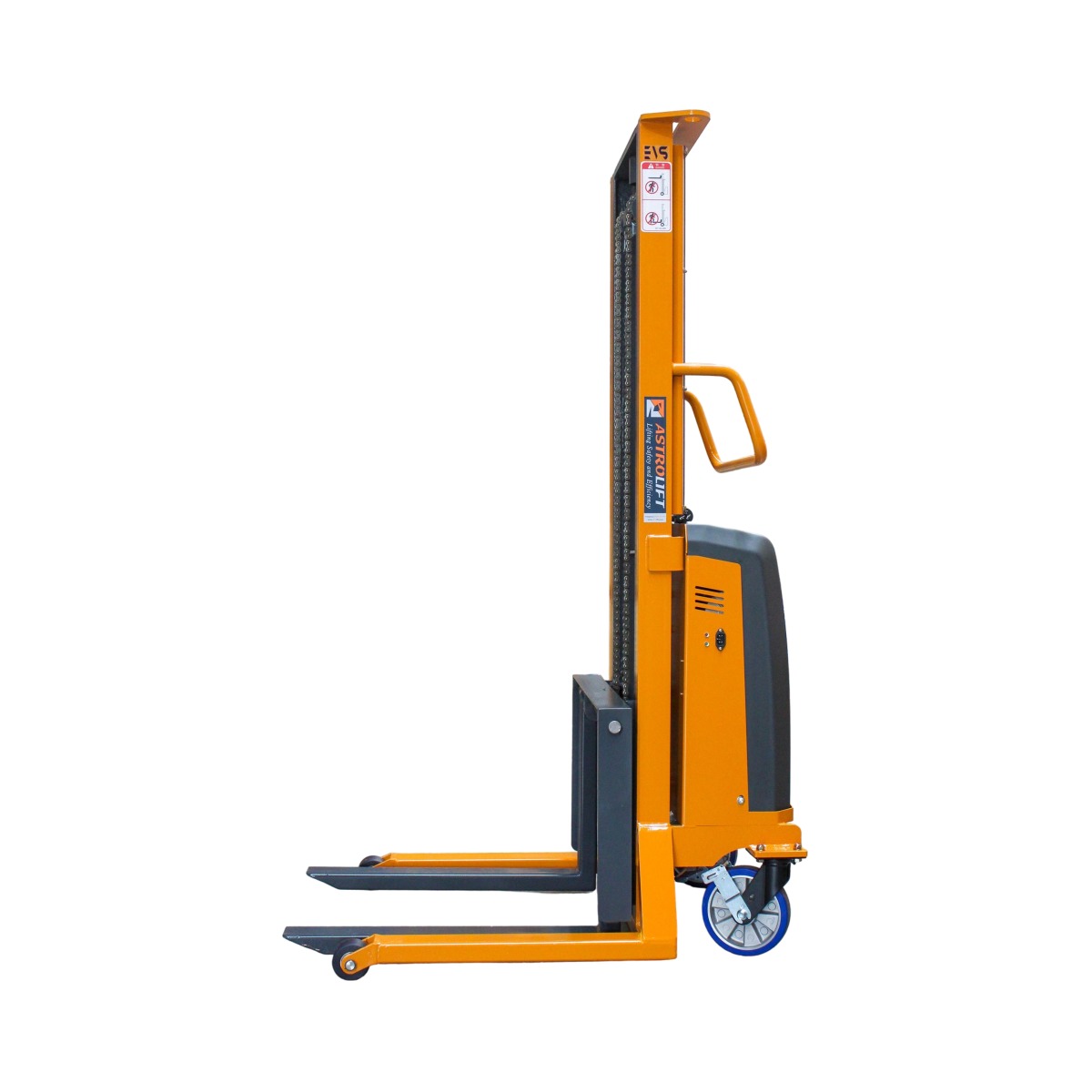

Battery Electric Pallet Stacker  500KGS

Pallet Stacker 500kgs

lpg-soo-001

Enquire For Price

Add to Quote
Check Availability
Download Specification PDF
LPG Lifter Specs
Capacity (kg) 500
Lift Height (mm) 1500
Fork Length (mm) 700
Fork Spread (mm) 165 - 680
Overall Height Lowered (mm) 2030
Overall Height Fully Raised (mm) 2030
Free Lift Height (mm) 1500
Overall Width (mm) 860
Overall Length (mm) 1155
Load Centre (mm) 350
Width in Between Legs (mm) 685
Leg Length (mm) 660
Fork Size (mm) 75 x 45
Front Wheel Diameter (mm) 80
Rear Wheel Diameter (mm) 200
Unit Weight (kg) 240
Hydraulic Motor (kW) DC 12v x 1.6KW
Battery 12v x 125Ah / 20Hr
Battery Charger Single Phase 220v x 50/60Hz

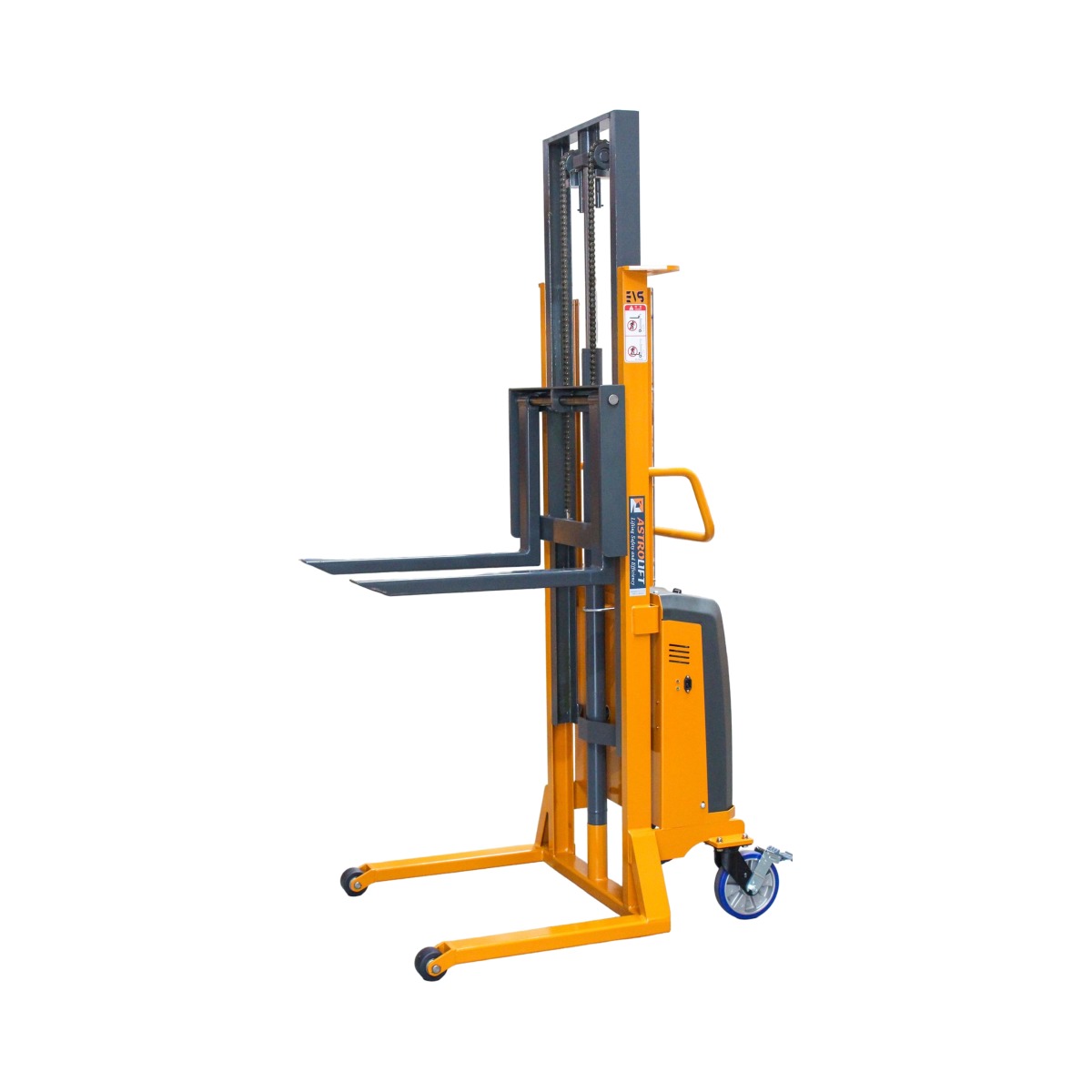

Battery Electric Pallet Stacker  500KGS

Pallet Stacker 500kgs

lpg-soo-002

Enquire For Price

Add to Quote
Check Availability
Download Specification PDF
LPG Lifter Specs
Capacity (kg) 500
Lift Height (mm) 2500
Fork Length (mm) 700
Fork Spread (mm) 165 - 680
Overall Height Lowered (mm) 1890
Overall Height Fully Raised (mm) 3055
Free Lift Height (mm) 210
Overall Width (mm) 860
Overall Length (mm) 1155
Load Centre (mm) 350
Width in Between Legs (mm) 685
Leg Length (mm) 660
Fork Size (mm) 75 x 45
Front Wheel Diameter (mm) 80
Rear Wheel Diameter (mm) 200
Unit Weight (kg) 280
Hydraulic Motor (kW) DC 12v x 1.6KW
Battery 12v x 125Ah / 20Hr
Battery Charger Single Phase 220v x 50/60Hz
