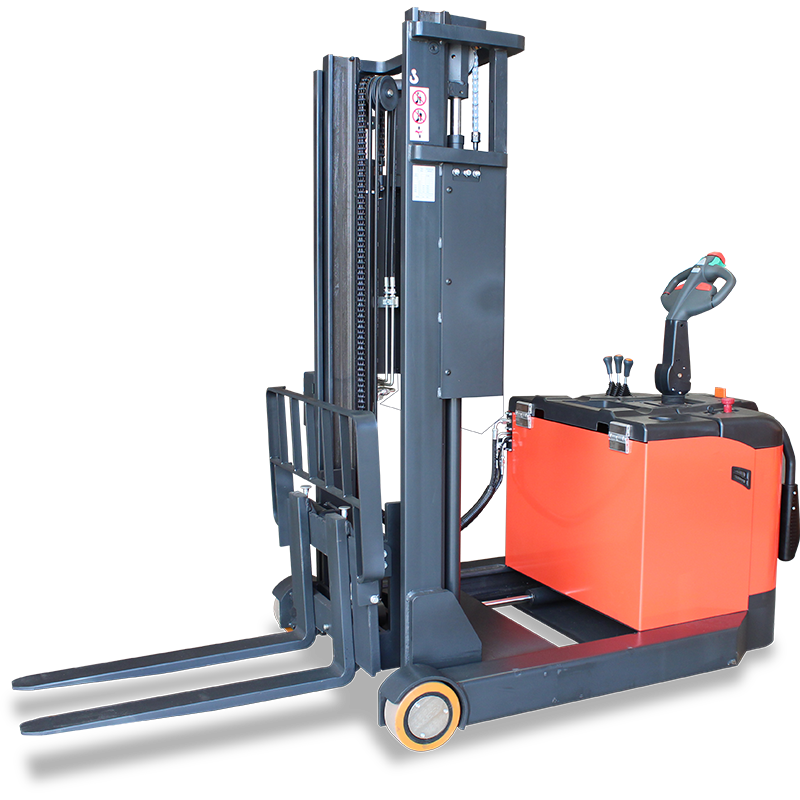

Electric Counter-balance Stacker

Counter-Balance Fork Lifter

Description

This fully-powered pallet stacker has a forward extending mast and a counter-balance built into the back. This shifts the forks beyond the front legs which allows it to drive right up to shelving units without contacting the shelf legs or pallets on the ground. This machine features both electrically-powered lifting and driving, removing all effort from the operator to move heavy loads. Similar to a forklift, this stacker has a tilting mast to provide greater stability when lifting and transporting a load.

Videos

Shipping & Returns

Shipping

We offer fast, reliable delivery nationwide across New Zealand.

Returns

Sale items can’t be returned. For other purchases, return freight is the customer’s responsibility and a 10% handling fee may apply. Our goal is to make sure you get the right solution for your business, so if you’re unsure, chat with our team before purchasing.

View Pricing & Order
  • Fully Electric
  • Heavy Duty Counter Balance Stacker - 1300kg Load Capacity
  • 1 Year Warranty

Features & Benefits

  • Built-in Rechargeable battery
  • Electric drive and lift
  • Powder-coated finish
  • High contrast display shows battery charge with hours running meter
  • 24V 270Ah batteries with built-in charger
  • Onboard storage areas for documents and tools
  • AC drive system is designed to maintain high run times and levels of performance throughout work cycles, offering excellent acceleration and high travel speeds, loaded or unloaded
  • Ergonomic driving handle prevents unnecessary strain on users
  • Simple, hydraulic controls to raise and lower the forks
  • Polyurethane (PU) braked wheels and rollers are durable, non-marking and quiet
  • Emergency stop buttons on the tiller and on the main machine
  • Sound level at drivers ear in accordance with EN 12053
Models & Specifications
Image Model Number Price Each Order Quantity Availability Downloads
Counter Balance Stacking Machine Model Image

Electric Counter-balance Stacker

lpc-nbl-001

Enquire For Price

Add to Quote
In Stock
Download Specification PDF
Capacity
Capacity (kg) 1300
Forks
Fork Span (mm) 200 - 760
Fork Length (mm) 950
Fork Width (mm) 100
Fork Height (mm) 35
Load Centre (mm) 600
Lifting
Lift Height (mm) 3000
Free Lift Height (mm) 152
Lifting Speed (m/s) 0.08 / 0.12
Lowering Speed (m/s) 0.09 / 0.08
Pallet Stackers
Lowered Mast Height (mm) 2096 - 3000
platform 1
Brake Yes
Travel Speed (km/h) 5
Maximum Gradability (%) 5
Turning Radius (mm) 1666
External Dimensions
Overall Length (mm) 2206
Overall Width (mm) 1090
Overall Height (mm) 3885
Weight (kg) 1900
