Non Straddle Pallet Stacker

Pallet Stacker

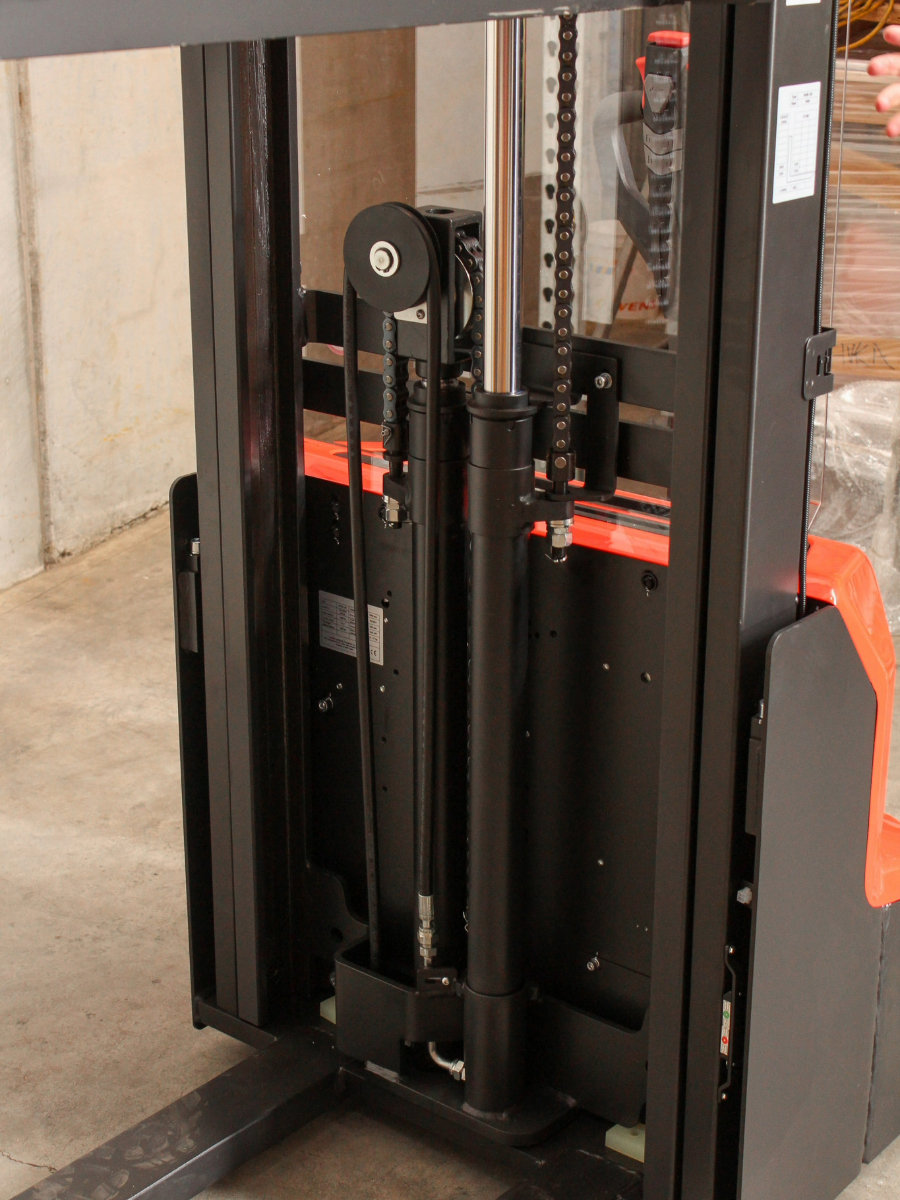

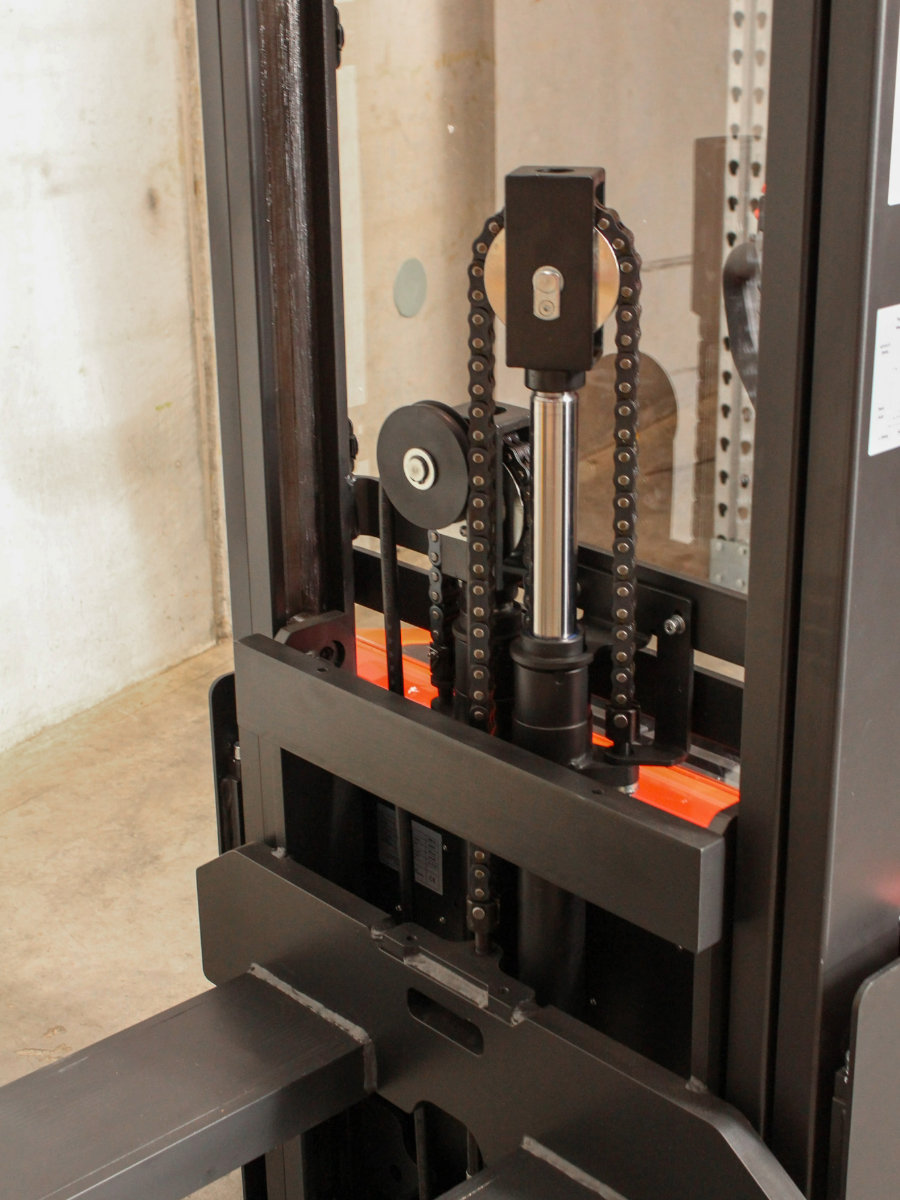

  • Free Lifting Mast

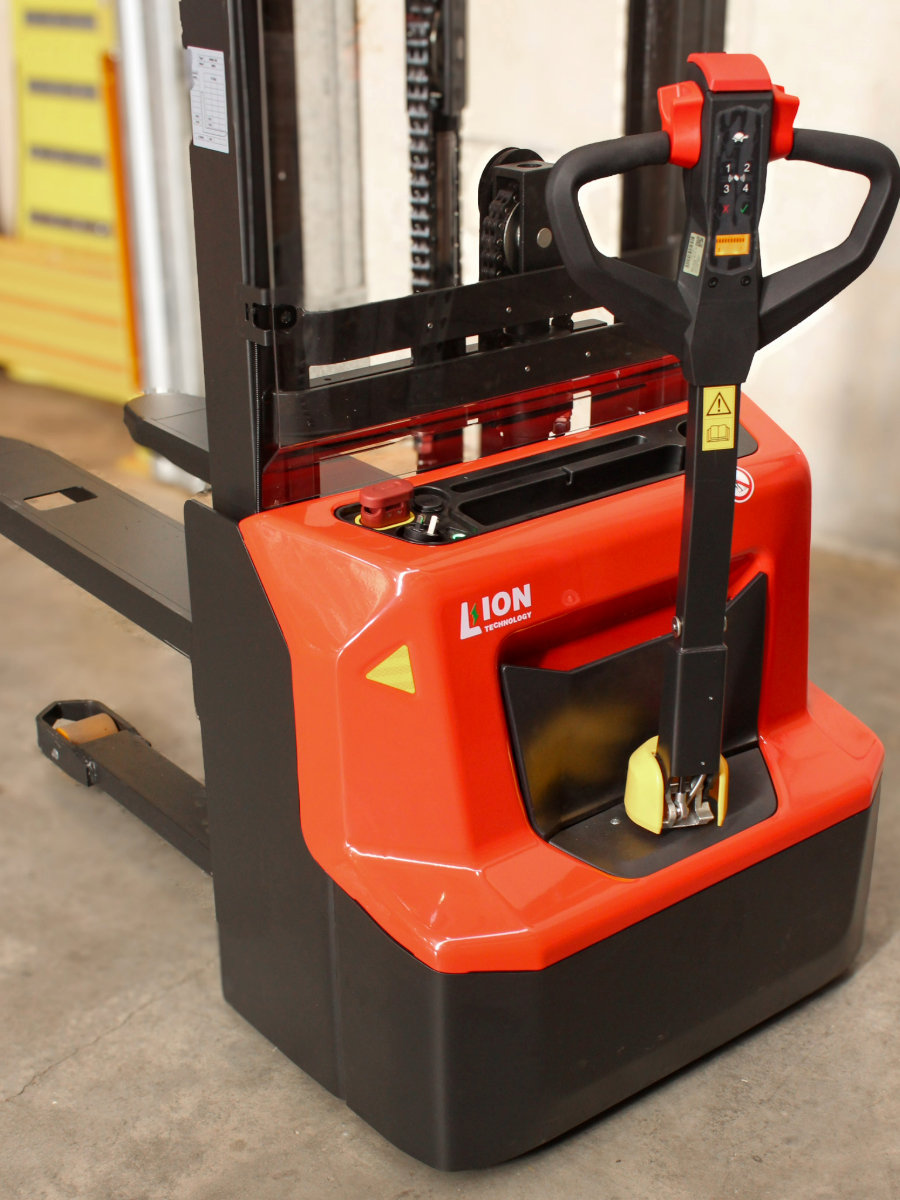

  • Dual Butterfly-style thumb driving buttons
  • Electric Lifting & Lowering
  • 1 Year Warranty
We don’t just supply the equipment – we can also arrange professional installation to make sure everything is set up correctly and ready to use. Talk to us today.
Buy Non Straddle Pallet Stacker  in Pallet Stackers available at Astrolift NZ
Buy Non Straddle Pallet Stacker  in Pallet Stackers available at Astrolift NZ
Buy Non Straddle Pallet Stacker  in Pallet Stackers available at Astrolift NZ
Buy Non Straddle Pallet Stacker  in Pallet Stackers available at Astrolift NZ
Buy Non Straddle Pallet Stacker  in Pallet Stackers available at Astrolift NZ
Buy Non Straddle Pallet Stacker  in Pallet Stackers available at Astrolift NZ
Buy Non Straddle Pallet Stacker  in Pallet Stackers available at Astrolift NZ
Buy Non Straddle Pallet Stacker  in Pallet Stackers available at Astrolift NZ
Buy Non Straddle Pallet Stacker  in Pallet Stackers available at Astrolift NZ
Buy Non Straddle Pallet Stacker  in Pallet Stackers available at Astrolift NZ
Buy Non Straddle Pallet Stacker  in Pallet Stackers available at Astrolift NZ
Buy Non Straddle Pallet Stacker  in Pallet Stackers available at Astrolift NZ
Buy Non Straddle Pallet Stacker  in Pallet Stackers available at Astrolift NZ
Buy Non Straddle Pallet Stacker  in Pallet Stackers available at Astrolift NZ
Buy Non Straddle Pallet Stacker  in Pallet Stackers available at Astrolift NZ
Buy Non Straddle Pallet Stacker  in Pallet Stackers available at Astrolift NZ
Model Number

LPG-NBL-007

Capacity (kg)

1300

Lowered Mast Height (mm)

1780

Extended Mast Height (mm)

2990

Fork Span (mm)

570 - 685

Lift Height (mm)

90 - 2510

Free Lift Height (mm)

1300

Lifting Speed (mm/s )

0.10 Laden - 0.14 Unladen

Lowering Speed (mm/s )

0.13 Laden - 0.11 Unladen

Electromagnetic Brake

Yes

Travel Speed (km/h)

4.2 Laden - 4.5 Unladen

Maximum Gradient % (%)

4 Laden - 10 Unladen

Overall Length (mm)

1710

Overall Width (mm)

800

Overall Height (mm)

1780

Unit Weight (kg)

670

Turning Radius (mm)

1300



Enquire For Price

Add to Quote
Stock Availability
In Stock
Specification PDF

LPG-NBL-007

In Stock

$8,475.00

Capacity (kg) 1300
Lowered Mast Height (mm) 1780
Extended Mast Height (mm) 2990
Fork Span (mm) 570 - 685
Lift Height (mm) 90 - 2510
Free Lift Height (mm) 1300
Lifting Speed (mm/s ) 0.10 Laden - 0.14 Unladen
Lowering Speed (mm/s ) 0.13 Laden - 0.11 Unladen
Electromagnetic Brake Yes
Travel Speed (km/h) 4.2 Laden - 4.5 Unladen
Maximum Gradient % (%) 4 Laden - 10 Unladen
Overall Length (mm) 1710
Overall Width (mm) 800
Overall Height (mm) 1780
Unit Weight (kg) 670
Turning Radius (mm) 1300
LPG-NBL-007

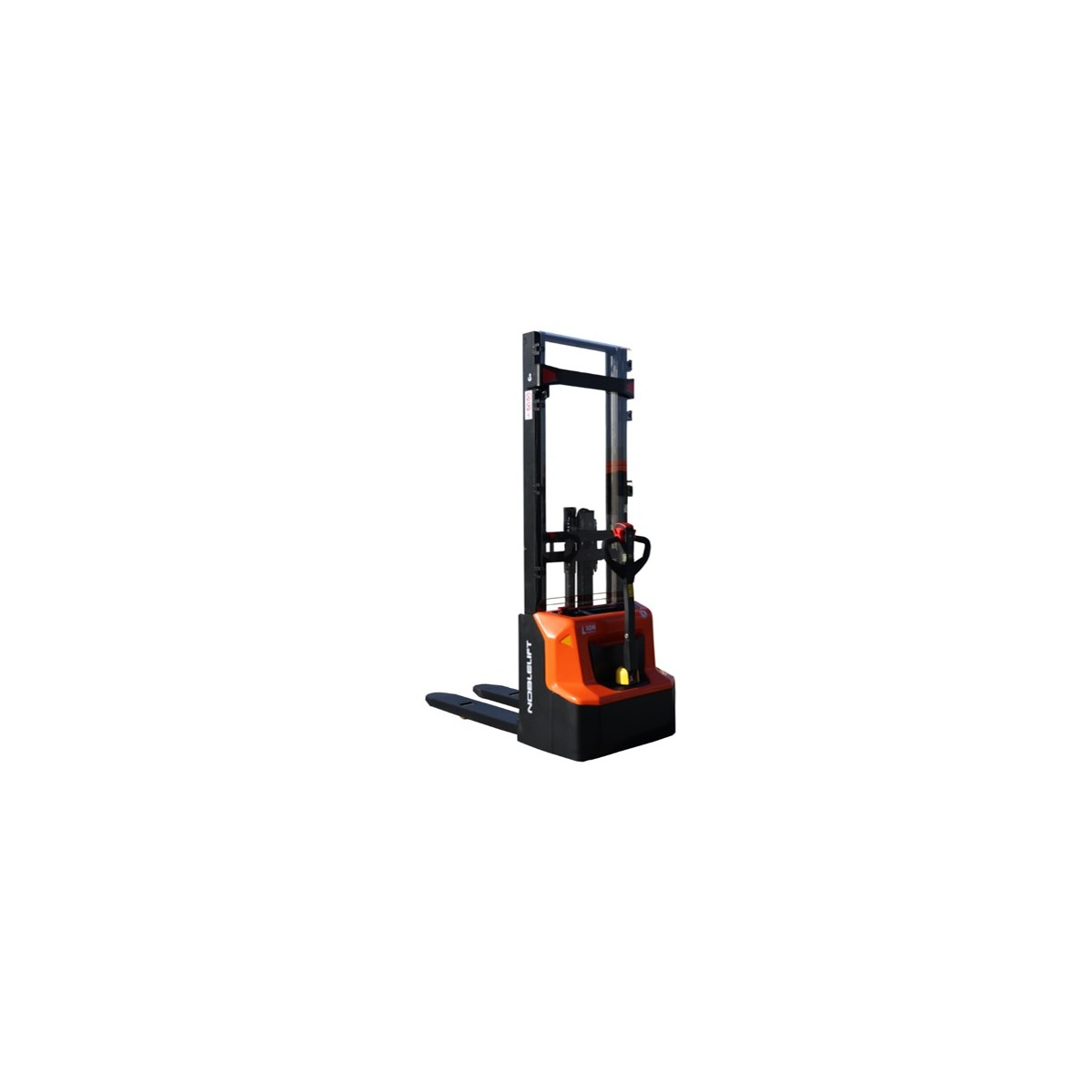

Non Straddle Pallet Stacker

This unique pallet stacker comes with a free lifting mast which is an ideal solution for material handling tasks in confined spaces like supermarkets, manufacturing facilities, workshops and many other applications. With its built in battery and compact design this is the ideal choice.

Features & Benefits

  • High Load Capacity
  • Soft Start for stable and controllable lifting operations
  • Robust construction

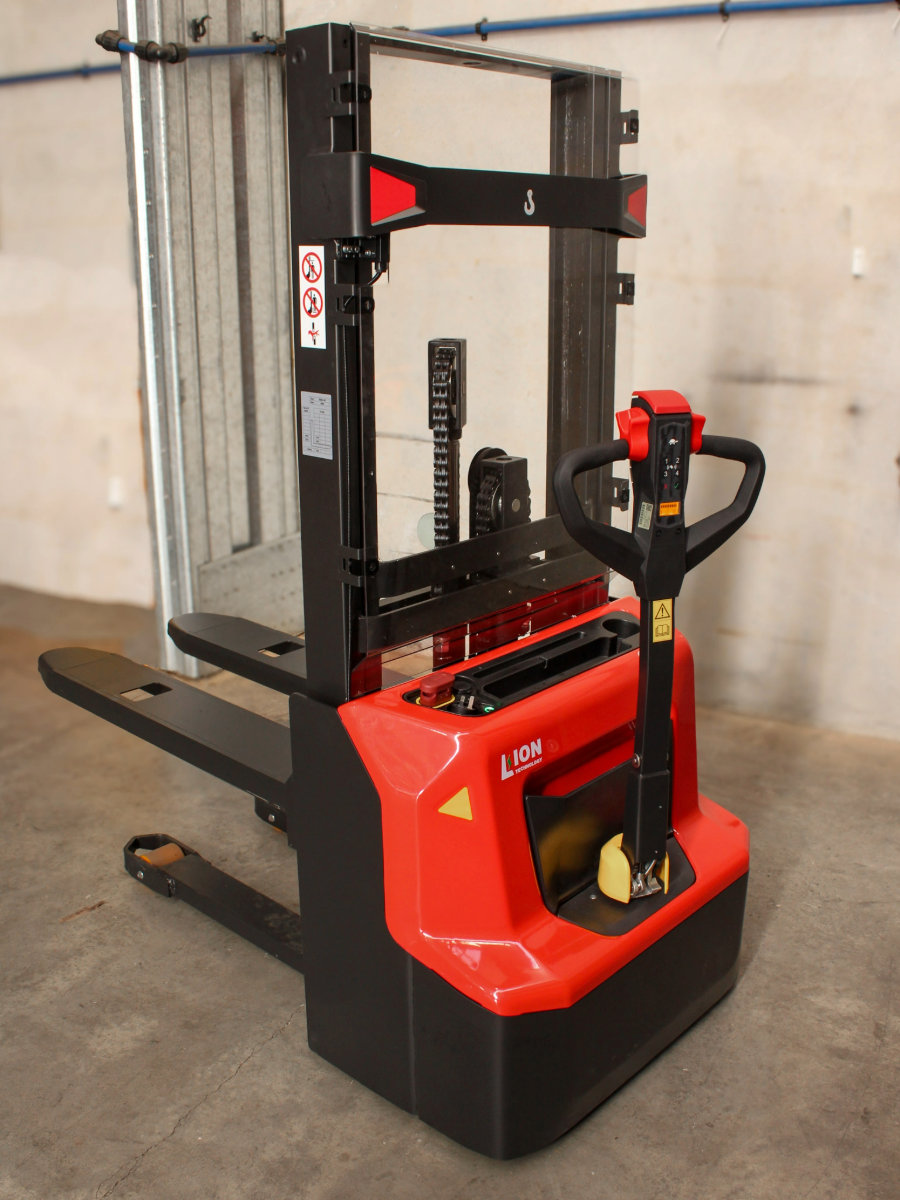

  • Drive with handle in vertical position for tight conditions
  • Hour Meter With Powered Display
  • Smart PIN Access code to allow trained users only
  • Emergency -reverse & Horn buttons
