Straddle Pallet Stacker 5200mm

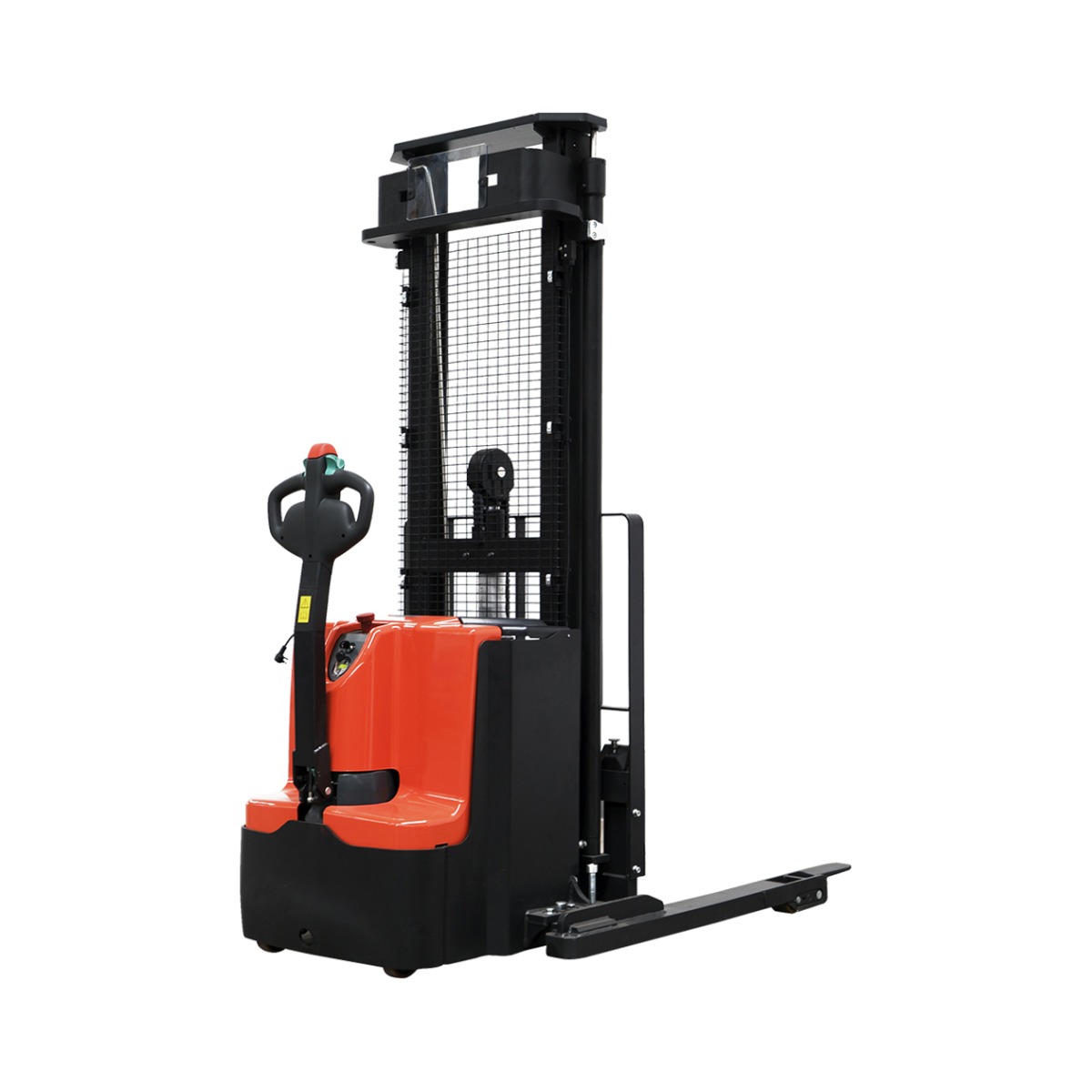

Electric Straddle Stacker

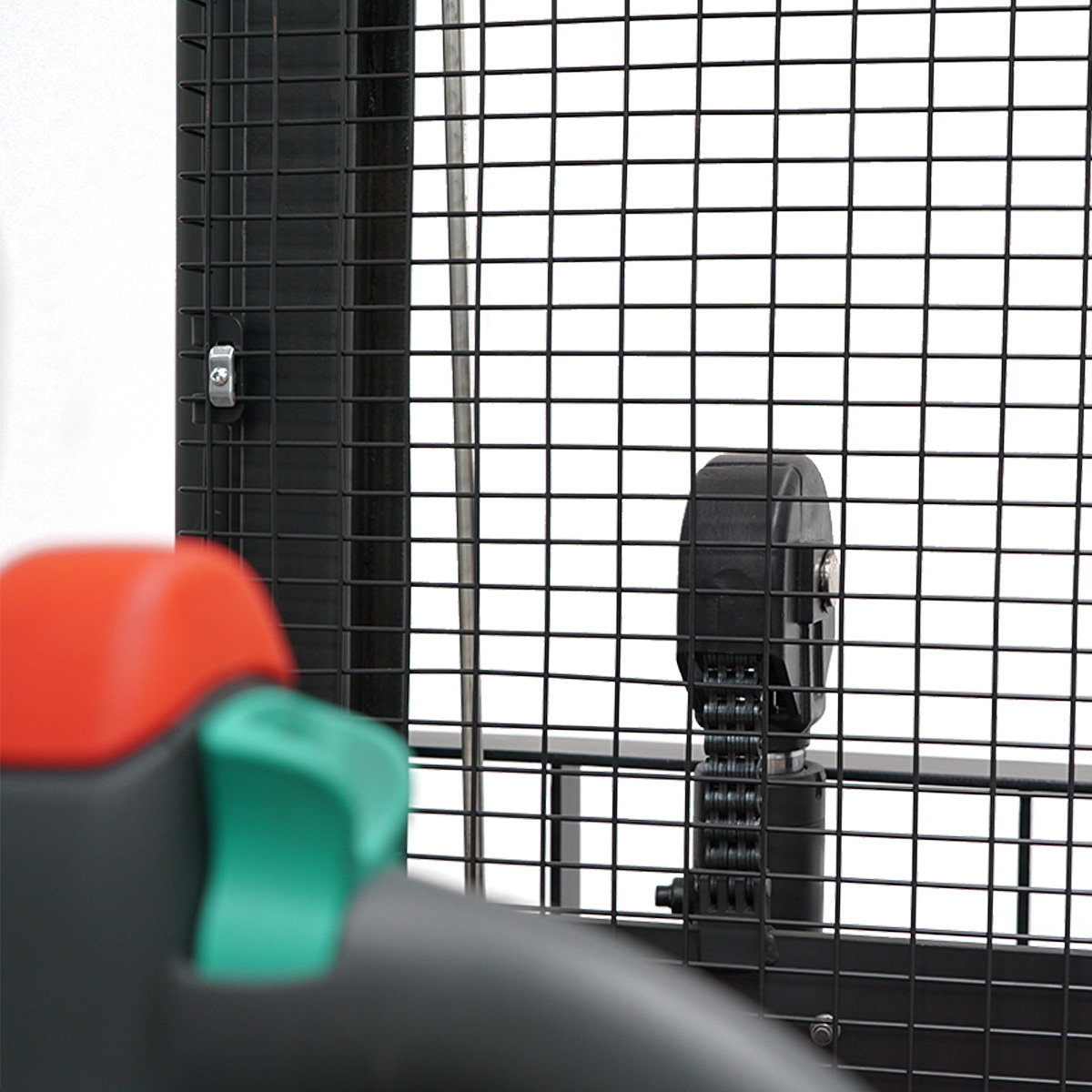

  • Mesh Protection to mast
  • Maintenance Free AC Drive Motor
  • Built In USB Charger
  • 1 Year Warranty
We don’t just supply the equipment – we can also arrange professional installation to make sure everything is set up correctly and ready to use. Talk to us today.
Electric Straddle Stacker
Straddle Stacker Back
Straddle Stacker Side

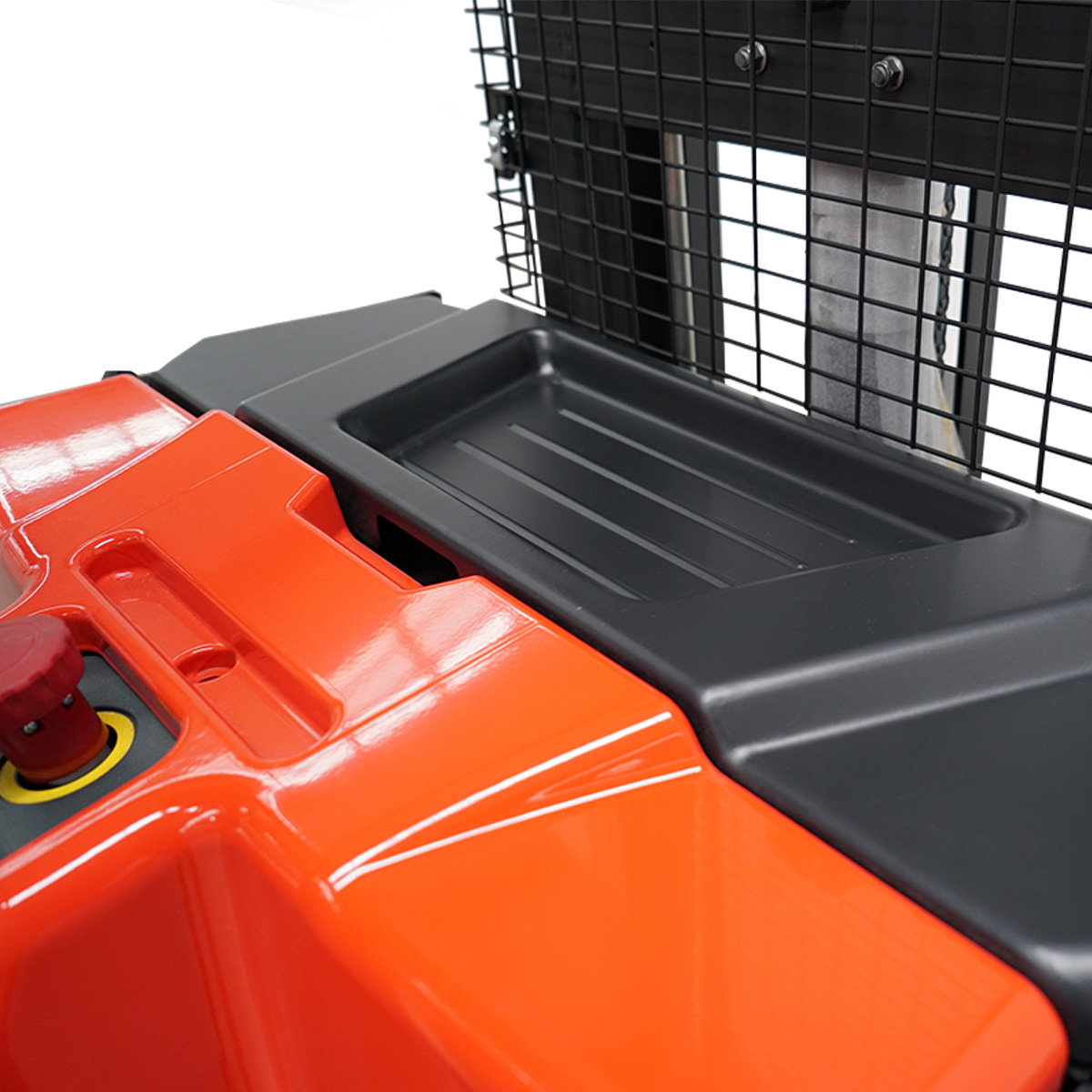

Straddle Stacker Tray

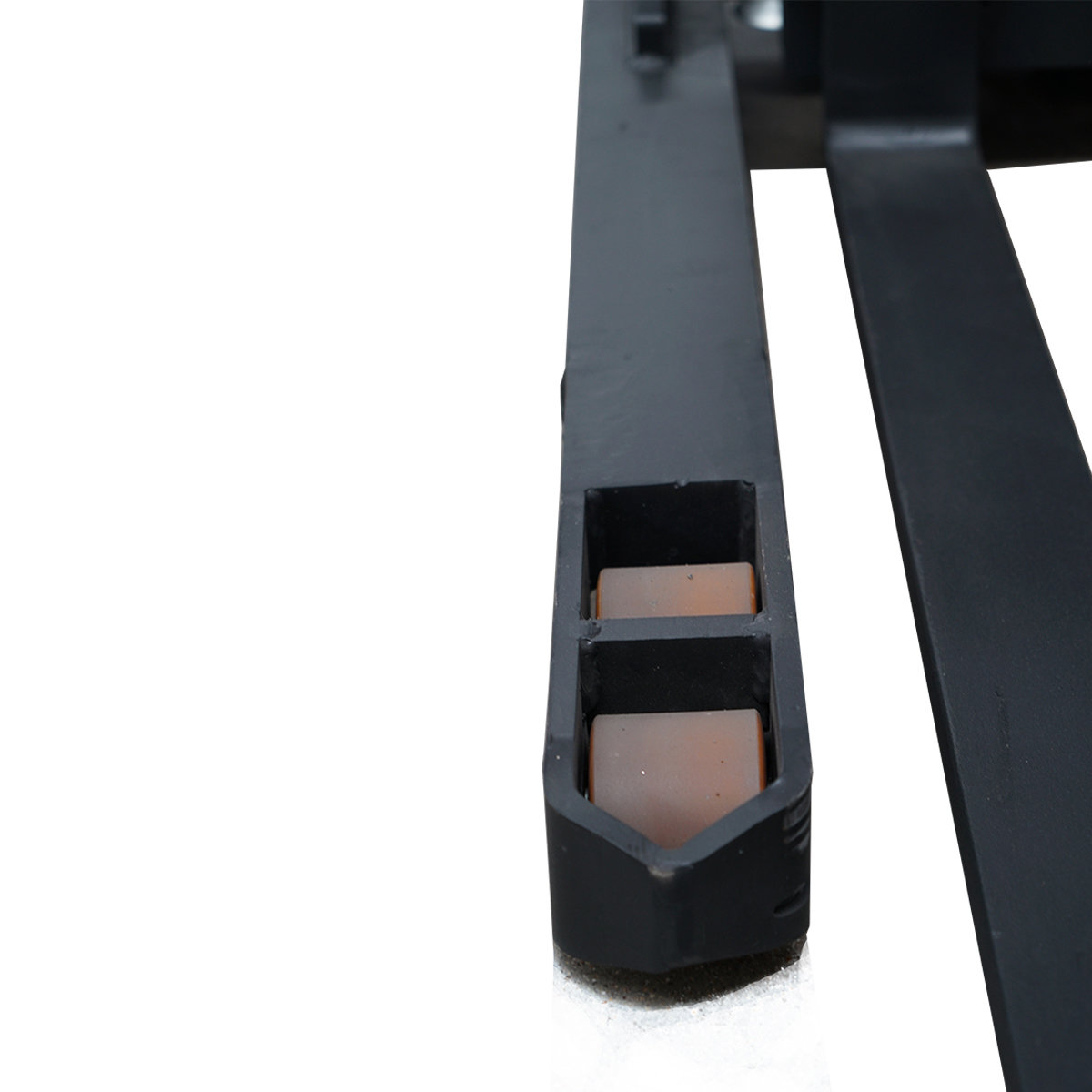

Straddle Stacker Outrigger
Straddle Stacker Wheels

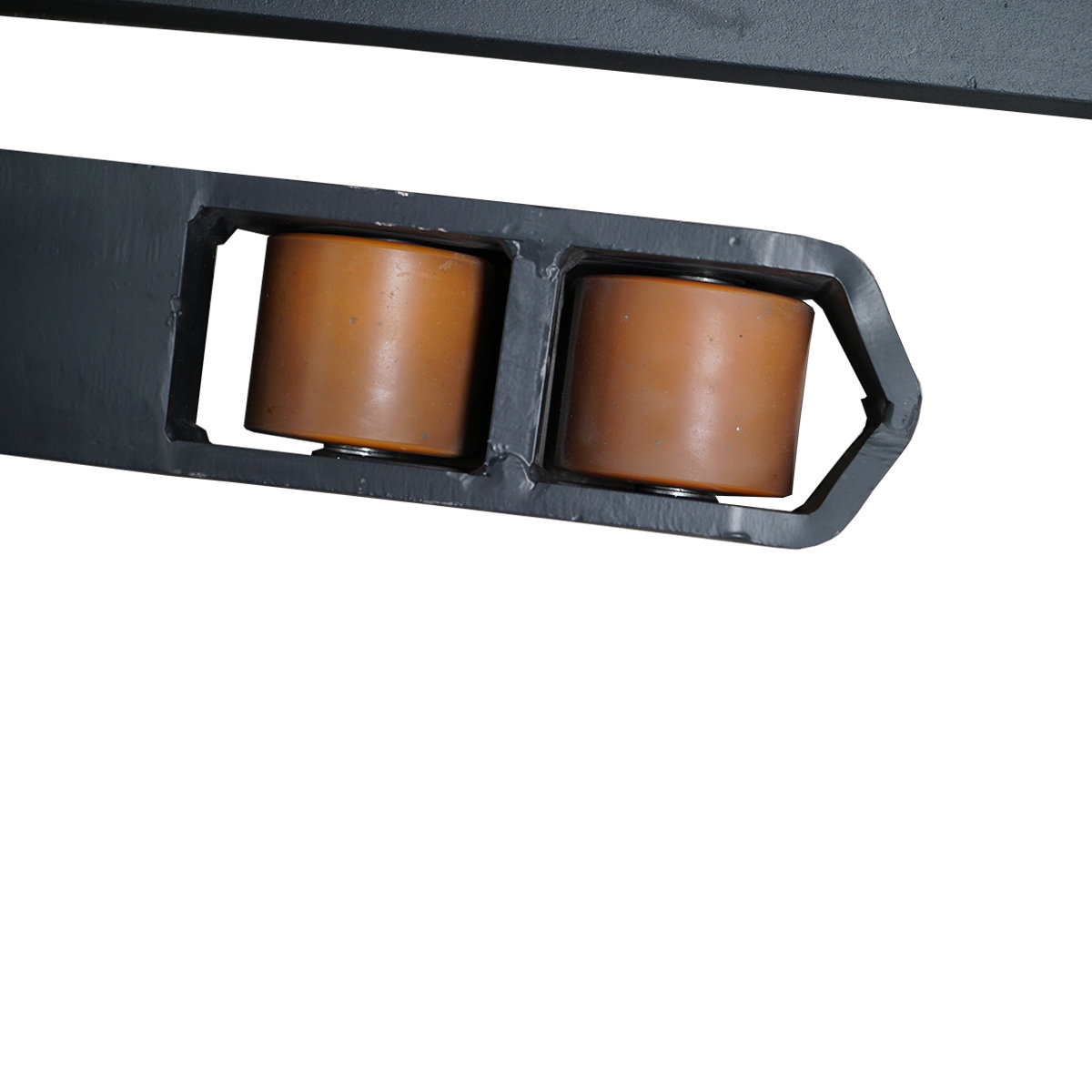

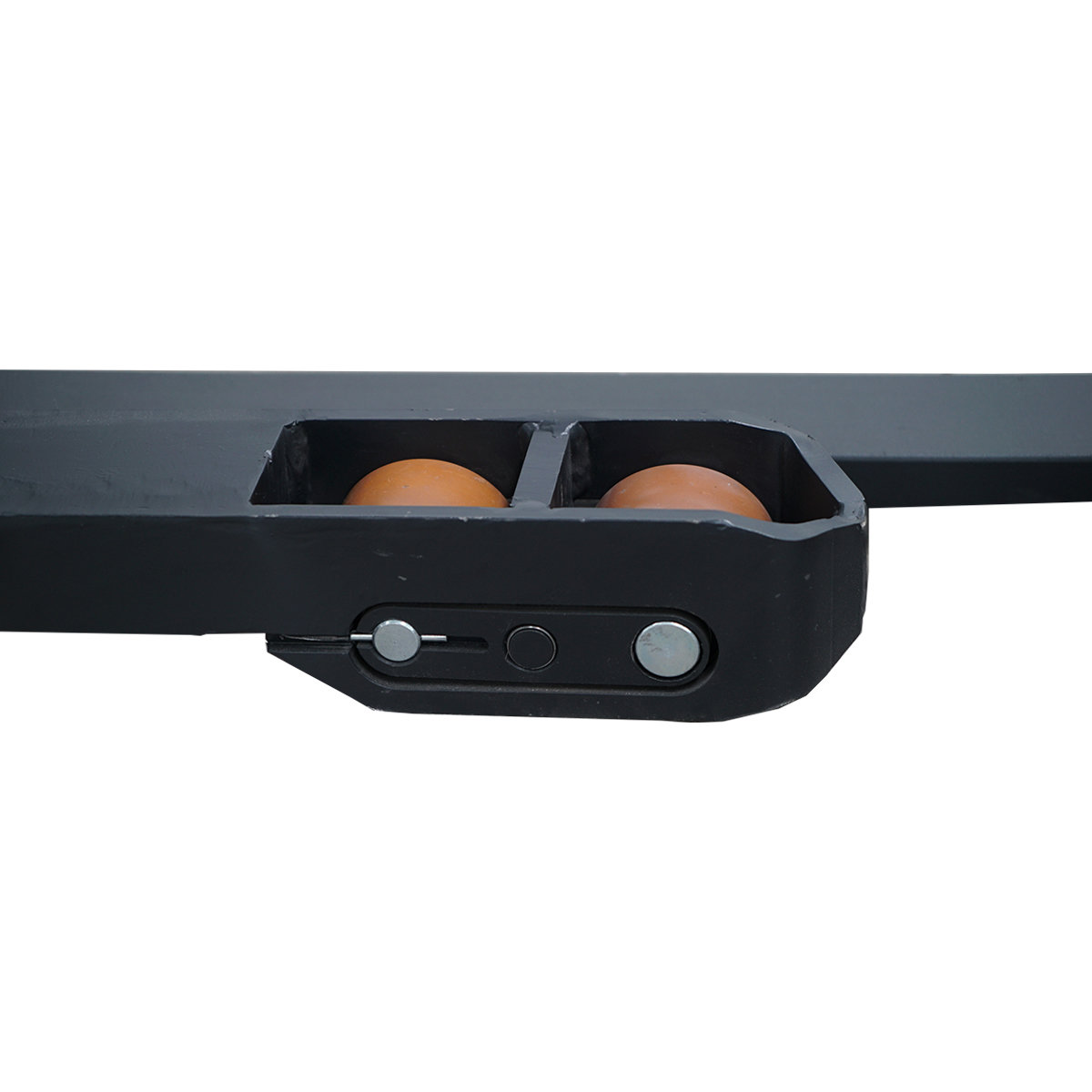

Straddle Stacker load Roller
Straddle Stacker butterfly controls
Straddle Stacker Back
Straddle Stacker Side
Straddle Stacker Tray
Straddle Stacker Outrigger
Straddle Stacker Wheels
Straddle Stacker load Roller
Straddle Stacker butterfly controls
Electric Straddle Stacker
Model Number

LPS-NBL-008

Capacity (kg)

1600

Fork Span (mm)

255 - 730

Fork Length (mm)

1150

Fork Width (mm)

100

Fork Height (mm)

35

Load Centre (mm)

600

Lift Height (mm)

5230

Free Lift Height (mm)

1750

Lifting Speed (m/s)

0.13 Laden - 0.18 Unladen

Lowering Speed (m/s)

0.20 Laden - 0.14 Unladen

Lowered Mast Height (mm)

2345 Lowered - 5280 Extended

Brake

Yes

Travel Speed (km/h)

5.4 Laden - 6.0 Unladen

Maximum Gradability (%)

6 % Laden / 12 % Unladen

Turning Radius (mm)

1550

Overall Length (mm)

2075

Overall Width (mm)

1170 - 1470

Overall Height (mm)

2345

Weight (kg)

1480



Enquire For Price

Add to Quote
Stock Availability
Out of Stock
Specification PDF

LPS-NBL-008

Out of Stock

$15,995.00

Capacity (kg) 1600
Fork Span (mm) 255 - 730
Fork Length (mm) 1150
Fork Width (mm) 100
Fork Height (mm) 35
Load Centre (mm) 600
Lift Height (mm) 5230
Free Lift Height (mm) 1750
Lifting Speed (m/s) 0.13 Laden - 0.18 Unladen
Lowering Speed (m/s) 0.20 Laden - 0.14 Unladen
Lowered Mast Height (mm) 2345 Lowered - 5280 Extended
Brake Yes
Travel Speed (km/h) 5.4 Laden - 6.0 Unladen
Maximum Gradability (%) 6 % Laden / 12 % Unladen
Turning Radius (mm) 1550
Overall Length (mm) 2075
Overall Width (mm) 1170 - 1470
Overall Height (mm) 2345
Weight (kg) 1480
LPS-NBL-008

Enquire For Price

Add to Quote

Straddle pallet stackers are ideal for pallets with bottom boards.

The straddle stackers front outriggers straddle the perimeter of the pallet meaning the are suitable for pallets with & Without bottom runner boards. This unit is both electric Drive & Lift alleviating the operator from workplace injuries when relocating heavy & Awkward loads. With its compact design and impressive turning radius, operators can easily maneuver through confined spaces using this stacker.

Electrically-Powered Lifting and Driving

Straddle stackers are typically equipped with electric motors for both lifting and driving. The electric lifting mechanism makes it easier to raise and lower heavy loads, reducing the physical effort required from the operator. Electric driving enables safer operation compared to manual methods.

Effortless Load Handling

By combining electric lifting and driving, straddle stackers allow operators to handle heavy loads with minimal physical strain. This can lead to increased productivity and reduced operator fatigue, improving overall efficiency in material handling tasks.

Overall, straddle pallet stackers offer a solution to a specific problem in material handling, making them a valuable tool in warehouses and similar environments where palletised goods need to be moved efficiently and without damage.

Features & Benefits

  • Straddle leg Design
  • Maintenance Friendly
  • Butterfly Thumb Drive Controls
  • Precise Lifting & Lowering with proportional Hydraulic System
  • Compact & Ergonomic Tiller Design
