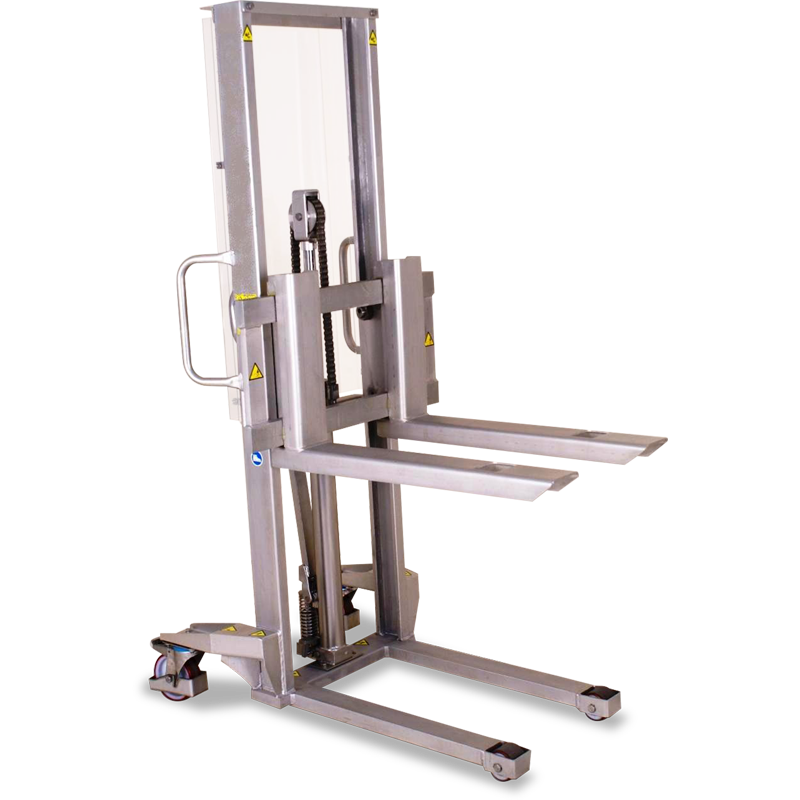

Pallet Stacker (Stainless Steel)

The ALFA M INOX is versatile stainless steel lifters with a manual hand pump.

Features

MECHANICAL FEATURES

  • Driving: Physical
  • Finish: Stainless Steel (Hygiene Area Safe)
  • Leg Position: Straight
  • Lifting: Pump
  • Stainless steel construction
  • Fast lifting with manual pump (without load)
  • Lever descent
  • Adjustable fork spread
  • Parking brake
  • Polyurethane small rollers
  • Polyamide wheels with polyurethane covering
  • Driving handles
  • Fork backing plate height at max lift 2000mm

WARRANTY

  • 1 Year Warranty

Models (1)

CODE LPG-ARM-002
Capacity (kg) 1000
Fork Length (mm) 1150
Fork Span (mm) 240 - 800
Fork Width (mm) 120
Lift Height (mm) 90 - 1600
Load Centre Distance (mm) 600
Length (mm) 1730
Width (mm) 750
Height (mm) 1990
Turning Radius (mm) 1320
