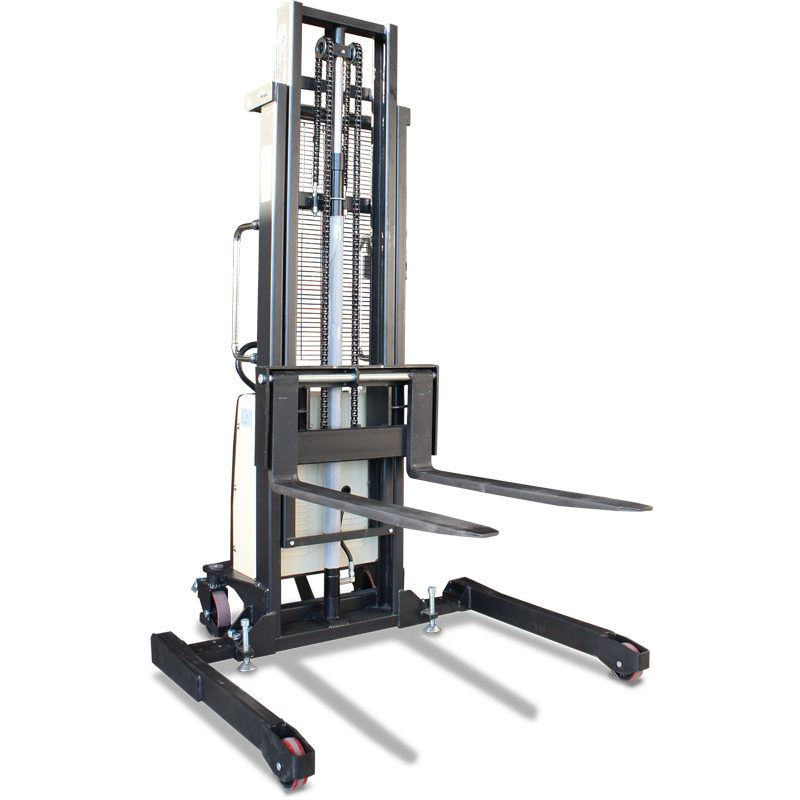

Straddle Manual-drive Pallet Stacker

This electric lift has straddle legs which allow it to lift goods from the corners of pallets, skids and racks. The width of the straddle legs are easily adjusted to work with varying skids.

With a maximum lift height of 3000mm, it is useful in a range of warehouse situations.

Features

MECHANICAL FEATURES

  • Battery Type: Built-in Rechargeable
  • Delivery: Some Assembly Required
  • Driving: Physical
  • Finish: Powder-coated
  • Leg Position: Straddle
  • Lifting: Electric

  • Castors:
    • Front: 127mm Fixed
    • Rear: 180mm Swivel

WARRANTY

  • 1 Year Warranty

Models

CODE LPS-NBL-001
Capacity (kg) 1000
Fork Length (mm) 1070
Fork Span (mm) 330 - 640
Lift Height (mm) 54 - 3000
Fork Width (mm) 100
Length (mm) 1689
Width (mm) 1170 - 1475
Height (mm) 2032
Load Centre Distance (mm) 600
