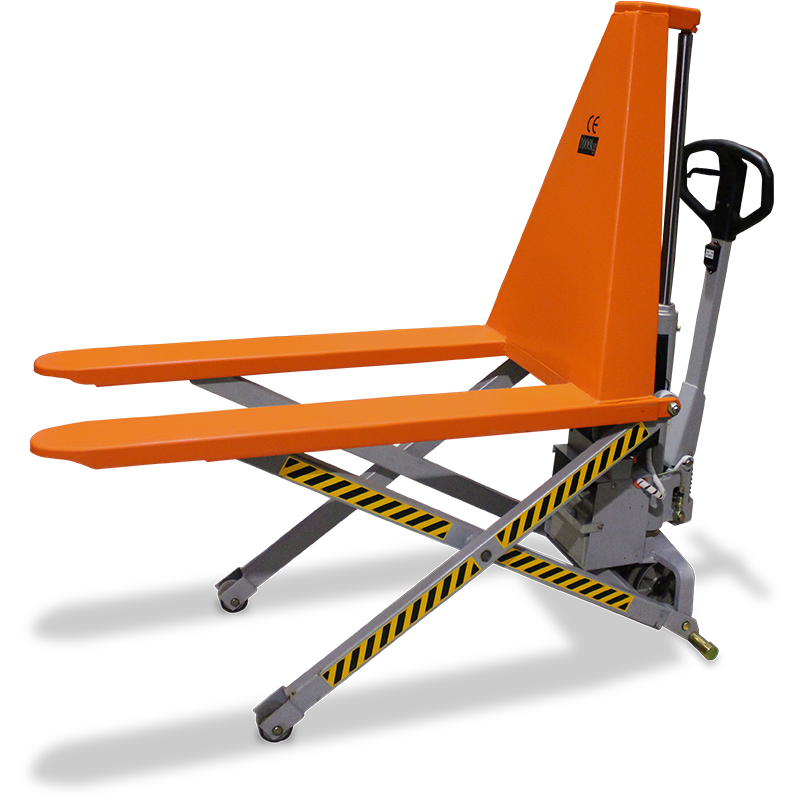

Highlift Electric-lift Pallet Trucks

The Highlift Electric-lift Pallet Truck is a semi-electric high-lift pallet truck designed to lift pallets on the spot to a height of up to 800mm, creating a raised working platform.

Unlike a fully manual high-lift pallet truck, this model is manually propelled with electric raise and lower. A built-in rechargeable 12V 65Ah battery with charger powers the lifting function.

The pallet truck features a quick-lift function that doubles the lift speed for loads weighing 250kg or less. A pressure relief overload valve helps prevent damage to the pallet truck if it is loaded above its maximum capacity.

With a powder-coated finish and ergonomic tiller with a comfortable grip, this Highlift Electric-lift Pallet Truck provides a straightforward solution for lifting pallets to a raised working height.

These pallet trucks cannot pick up pallets with bottom boards that would run underneath the forks or CHEP pallets.

Electric High Lift Operation

The Highlift Electric-lift Pallet Truck combines manual propulsion with electric lifting.

The electric raise and lower function is powered by the built-in rechargeable 12V 65Ah battery and charger.

The quick-lift function doubles the lifting speed when handling loads weighing 250kg or less.

High Lift Design

The high-lift design allows pallets to be raised on the spot to a working height of up to 800mm.

The lift height ranges from 85mm to 800mm, with a maximum capacity of 1,000kg.

Choosing the Right Fork Span

Both models have the same:

• 1,000kg capacity
• 1,170mm fork length
• 160mm fork width
• 85–800mm lift height

The difference is the fork span:

• QTH-NBL-003: 540mm
• QTH-NBL-004: 680mm

Select the fork span that matches the pallet configuration you need to handle.

Pallet Access

The Highlift Electric-lift Pallet Truck cannot pick up pallets with bottom boards that would run underneath the forks.

It also cannot pick up CHEP pallets.

Check your pallet type and fork dimensions before selecting a model.
