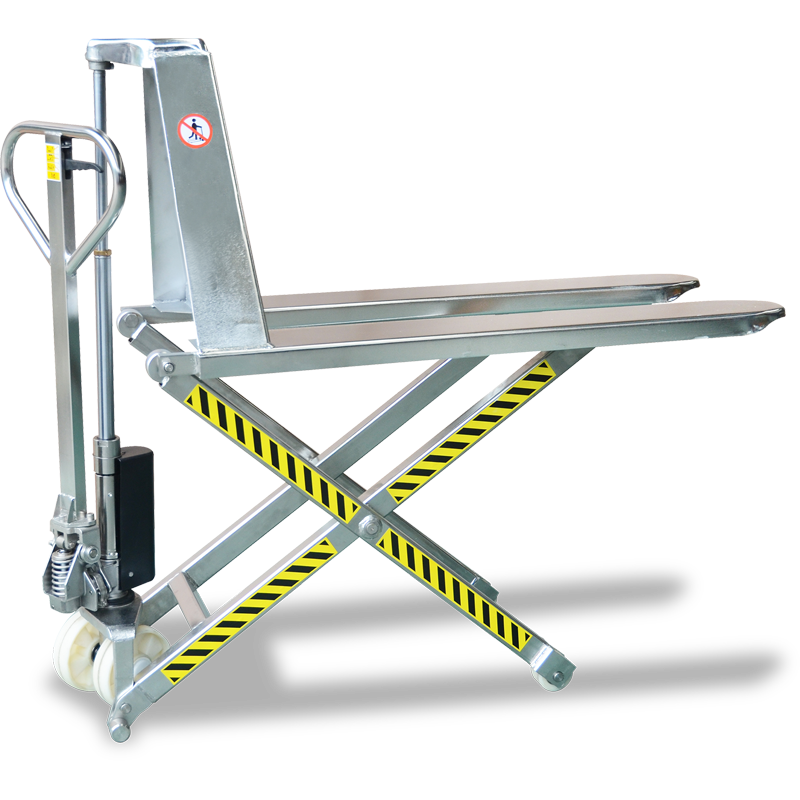

The Highlift Pallet Truck (Stainless Steel) is a manual high-lift pallet truck designed to raise pallets on the spot to a working height of up to 800mm, creating a raised working platform.
The stainless-steel construction makes this pallet truck suitable for use in wet areas and is specified as hygiene area safe.
The pallet truck is manually propelled and operated using a hand pump for raising and lowering the forks. Its three-position handle provides lifting, neutral and descending functions.
The quick-lift function doubles the lift speed for loads weighing 250kg or less. A pressure relief overload valve helps prevent damage to the pallet truck if it is loaded above its maximum capacity.
These high-lift pallet trucks cannot pick up pallets with bottom boards that would run underneath the forks or CHEP pallets.

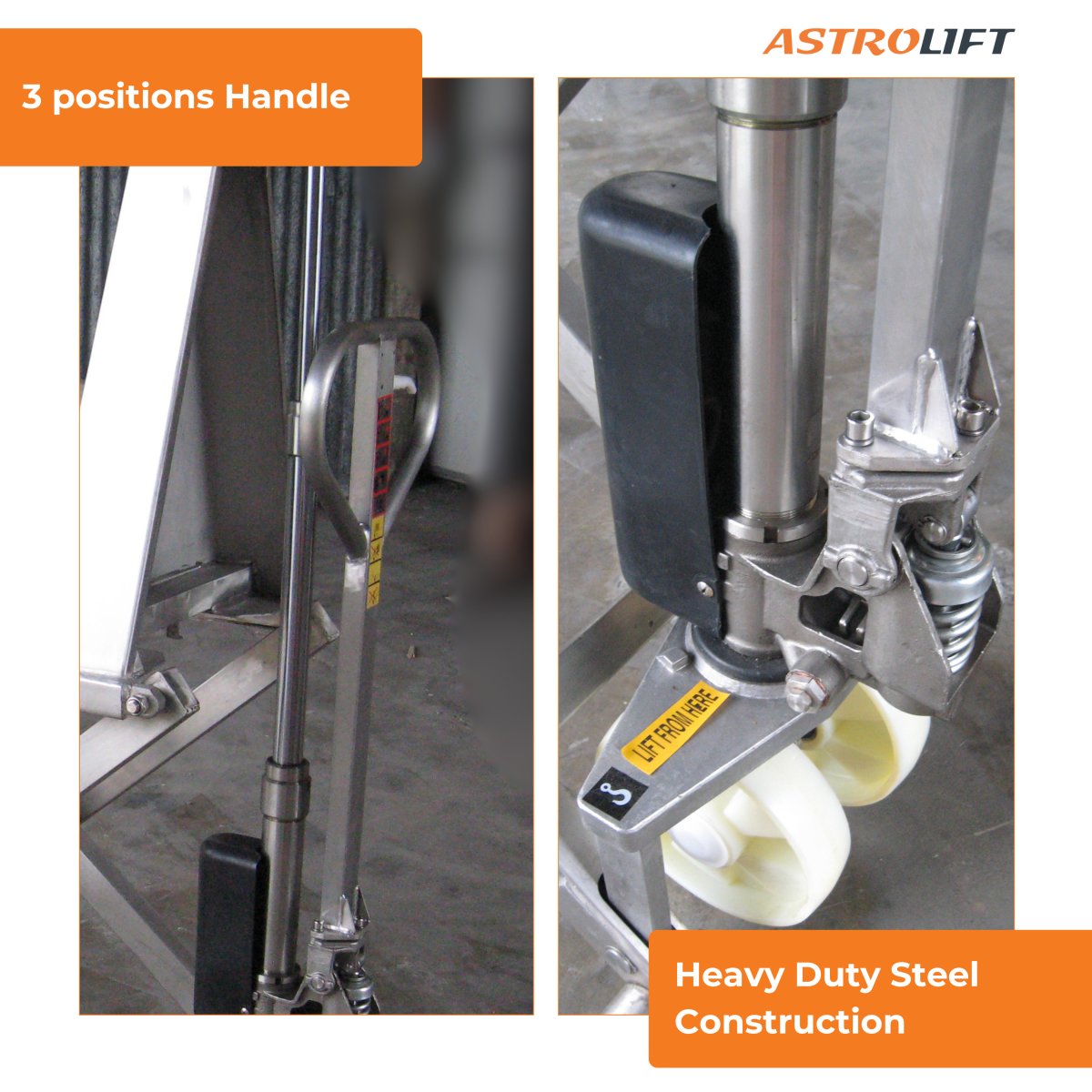

Handle with 3 different positions:
- Position 1: Lifting
Raises the forks. Requires 77 pumps to reach full height.
- Position 2: Neutral
Neutral position for the forks.
- Position 3: Descending
Lowers the forks.
High-Lift Design
The high-lift design allows pallets to be raised on the spot to a working height of up to 800mm.

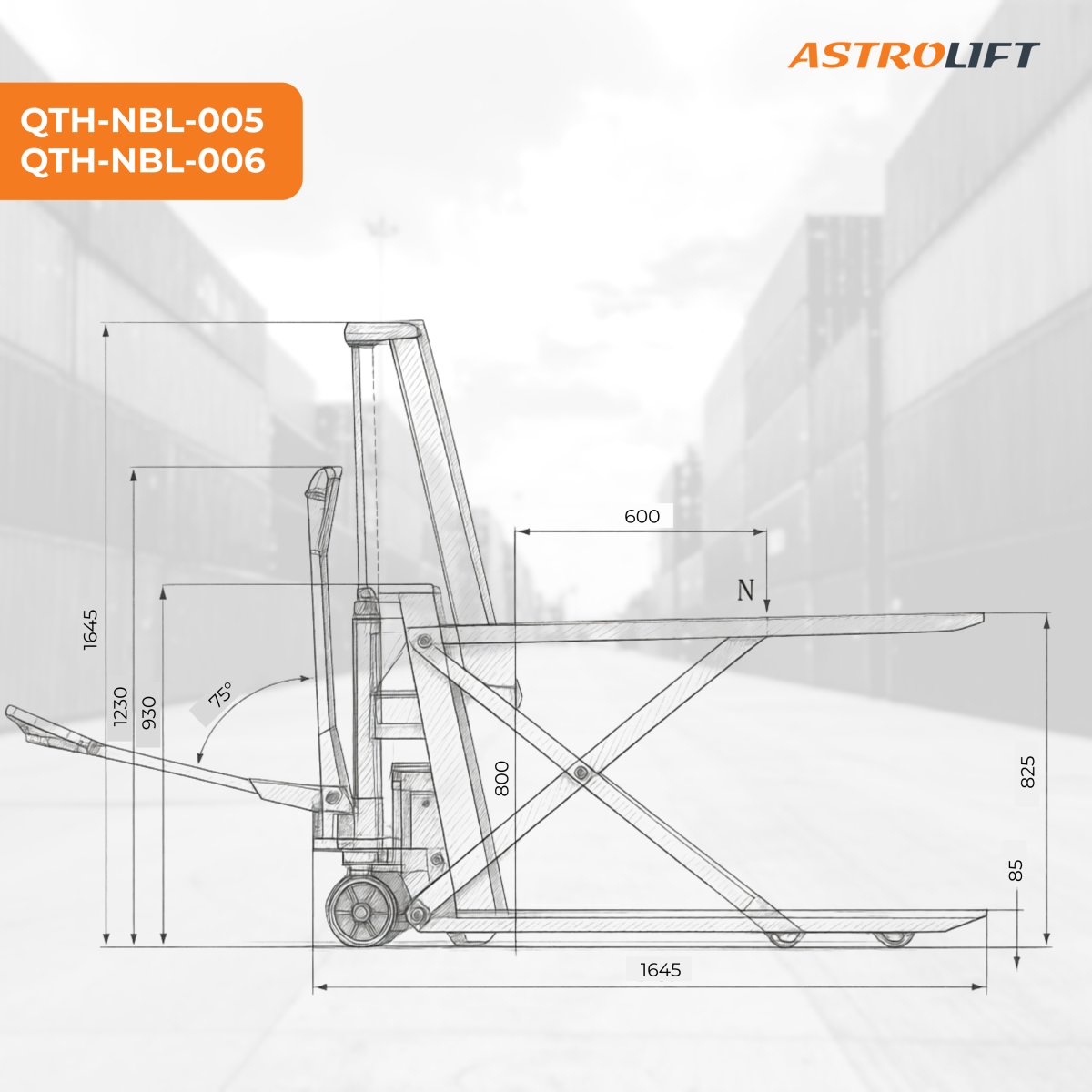

The lift height ranges from 85mm to 800mm, with a maximum capacity of 1,500kg.
The quick-lift function doubles the lifting speed for loads weighing 250kg or less.
| Specification |
QTH-NBL-005 |
QTH-NBL-006 |
| Capacity |
1,500kg |
1,500kg |
| Fork Span |
540mm |
680mm |
| Fork Length |
1,150mm |
1,150mm |
| Fork Width |
160mm |
160mm |
| Lift Height |
85–800mm |
85–800mm |

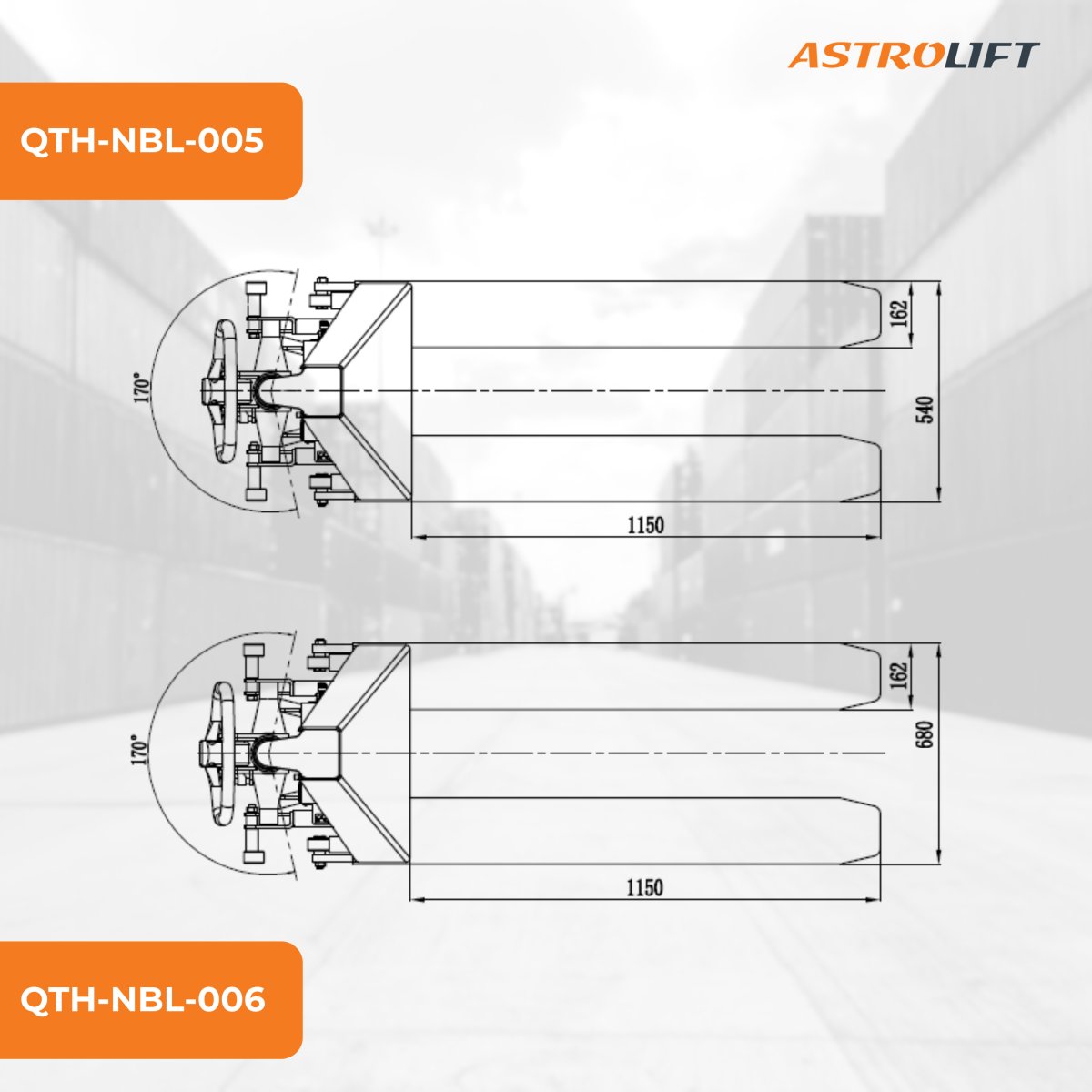

Choosing Your Fork Span
Both models have the same:
- 1,500kg capacity
- 1,150mm fork length
- 160mm fork width
- 85–800mm lift height
The difference is the fork span:
- QTH-NBL-005: 540mm
- QTH-NBL-006: 680mm
Choose the fork span that matches the pallet configuration you need to handle.
Stainless Steel Construction
The stainless steel finish is specified as hygiene area safe and makes this high-lift pallet truck suitable for wet areas.
The stainless steel construction distinguishes these models from the other high-lift pallet trucks in the range.
Pallet Access
These high-lift pallet trucks have 2-way pallet access.
They cannot pick up pallets with bottom boards that would run underneath the forks. They also cannot pick up CHEP pallets.
Check your pallet type and fork dimensions before selecting a model.
