Electric Straddle Stacker (Auto-levelling)
Model Number

LPA-ARM-004

LPA-ARM-005

Capacity (kg)

1000

1200

Volume (L)

undefined

undefined

Fork Span (mm)

530

530

Fork Length (mm)

1150

1150

Lift Height (mm)

90 - 1600

90 - 1600

Operation Time (s)

undefined

undefined

Swept Radius (mm)

undefined

undefined



Enquire For Price

+ Quote

Enquire For Price

+ Quote
Specification PDF

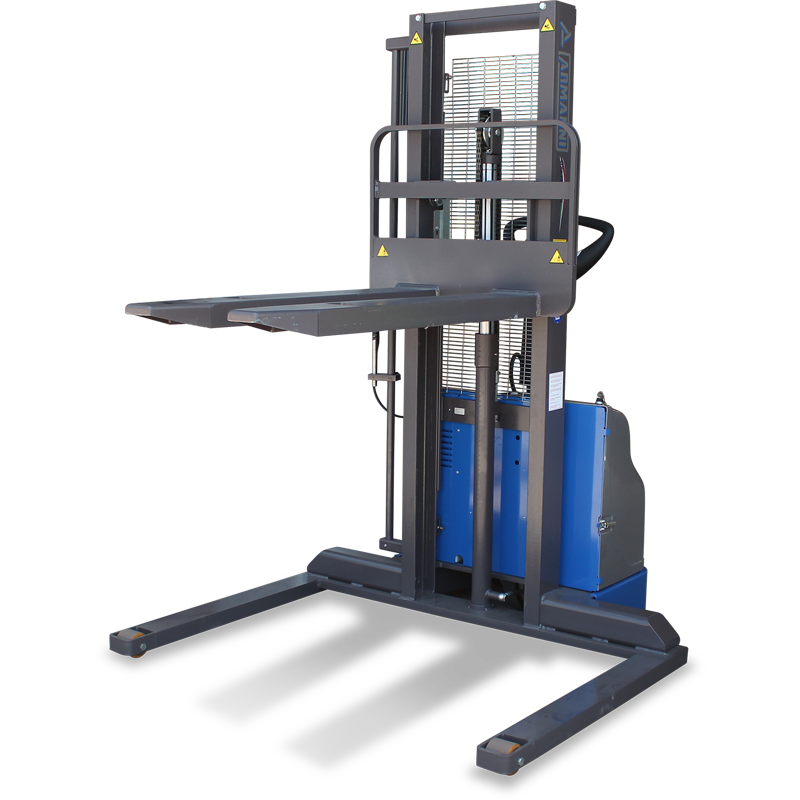

Straddle pallet stackers are designed for lifting pallets that have bottom boards. Where a regular stacker's legs go under the pallet, lifting the forks would snap the bottom boards off as they catch on the legs. This straddle stacker has legs that go around the outside of the pallet to avoid this issue. This machine features both electrically-powered lifting and driving, removing all effort from the operator to move heavy loads. These machines have a photocell height sensor. When activated, the sensor raises and lowers the forks to keep the top of the load at an ergonomic height, allowing operators to load and unload a pallet directly on the forks.

  • Battery Type: Built-in Rechargeable
  • Driving: Electric
  • Finish: Powder-coated
  • Leg Position: Straddle
  • Lifting: Electric
  • Three modes
    • Pallet stacker mode
    • Loading mode
    • Unloading mode
  • Forks allow ample foot clearance when lowering in loading mode
  • Photosensor allows the machine to automatically raise and lower the forks, so the top of the load is at an ergonomic working height
  • Ergonomic driving handle prevents unnecessary strain on users
  • Simple, electric controls to raise and lower the forks
  • Emergency stop button on the tiller
  • Safety mesh guarding keeps the operator safe from any unstable loads on the pallet stacker
  • 1 Year Warranty

OPTIONAL ACCESSORIES

  • Stainlesss Steel Finish
