Model Number

LTL-EDM-012

LTL-EDM-013

Capacity (kg)

1000

2000

Platform Length (mm)

1350

1350

Platform Width (mm)

1080

1180

Lift Height (mm)

80 - 820

100 - 820

Lifting Speed (m/s)

13

24

Weight (kg)

240

350



Enquire For Price

+ Quote

Enquire For Price

+ Quote
Specification PDF

Hydraulic Lift Tables elevate products at the push of a button, whether acting as an elevated workbench or lifting products up to higher levels. Heavy, repetitive lifting can be slow and inefficient while risking the possibility of injury and back strain. At the push of a button, these tables raise or lower to provide the ultimate working height. Low-profile units are designed for easier loading by pallet truck. This unit can have a ramp attached for getting a pallet onto the table.

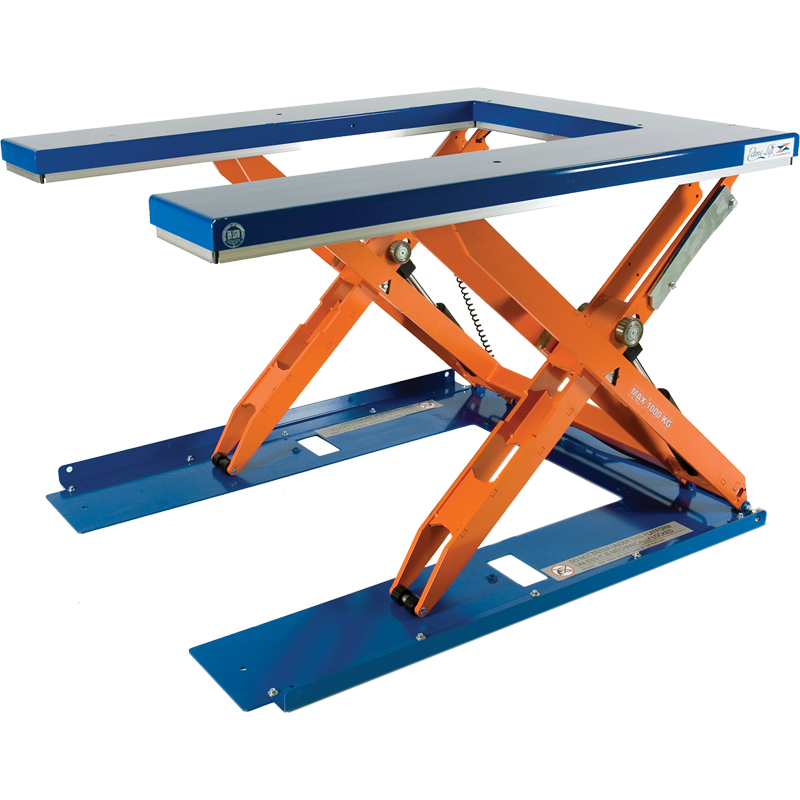

U-shaped tables allow a pallet truck to drive in at ground-level, then drop out from underneath the pallet to exit the table. This only works when lifting pallets with no runners going under the forklift tines. These tables have a powder-coated finish, making them ideal for use indoors in dry environments.

  • Finish: Powder-coated
  • Lifting: Electric
  • 24 V DC control unit and operating device with an emergency stop button
  • PLC control with the capability to program various functions to individual requirements is included for the standard model
  • Pressure relief overload valve prevents damage of the lift table if it is loaded above its maximum capacity
  • Pressure compensating flow valve controls the lowering speed
  • Maintenance-free bearing surface
  • U-shaped tables allow a pallet truck to load and unload pallets at ground level
  • Lifting eye bolts in the base frame for more flexible transportation and installation
  • Ingress Protection: IP 54
  • IP54 approved electrical system
  • Mechanical locks for safety during servicing and maintenance
  • Anti-entrapment bar on all four sides of the table acts as an emergency stop button when it is hit
  • Safety clearance between scissors to prevent trapping during operation
  • 1 Year Warranty
