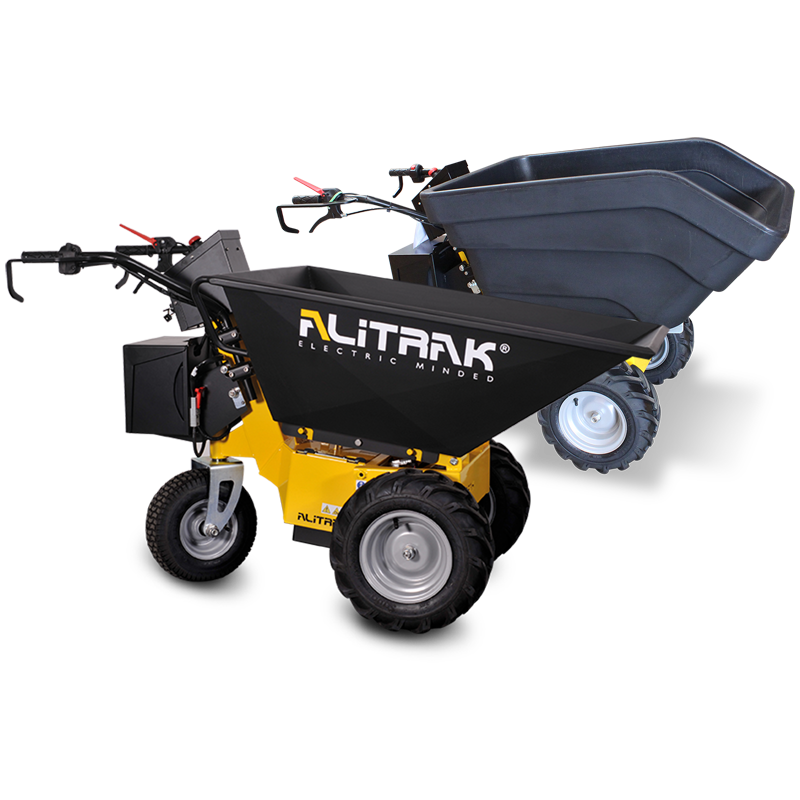

Electric Dumper - Skip Mini
Model Number

EDZ-ALI-001

EDZ-ALI-002

Volume (m³)

180

300

Skip Bin Type

Steel

Plastic

Travel Speed (km/h)

2.5 - 5

2.5 - 5

Reversing Speed (km/h)

1.5 - 3

1.5 - 3

Maximum Gradability (%)

20

20

Turning Radius (mm)

1180

1180

Power Supply

Single Phase

Single Phase

Battery Recharge Time (hr)

8

8

Overall Length (mm)

1700

1700

Overall Width (mm)

790

790

Overall Height (mm)

1020

1020

Weight (kg)

163

163



Enquire For Price

+ Quote

Enquire For Price

+ Quote
Specification PDF

This dumper is a wheelbarrow, with three wheels and a strong steel structure. It is designed to work in municipalities, graveyards, horse and other animal farms, greenhouses and nurseries. It has a semi-automatic mechanism for tilting the skip, activated by a switch on the handlebar. There are different skip types available, allowing outdoor or indoor use.

  • Battery Type: Built-in Rechargeable
  • Driving: Electric
  • Finish: Powder-coated
  • Semiautomatic skip tipping
  • Direction change (forward-reverse) by a switch on handlebars
  • Speed switch to operate in narrow spaces and on slopes
  • Dashboard display
    • Remaining battery charge
  • Electromagnetic parking brake
  • 1 Year Warranty

OPTIONAL ACCESSORIES

  • Pure lead batteries
  • Anti puncture tyre treatment
