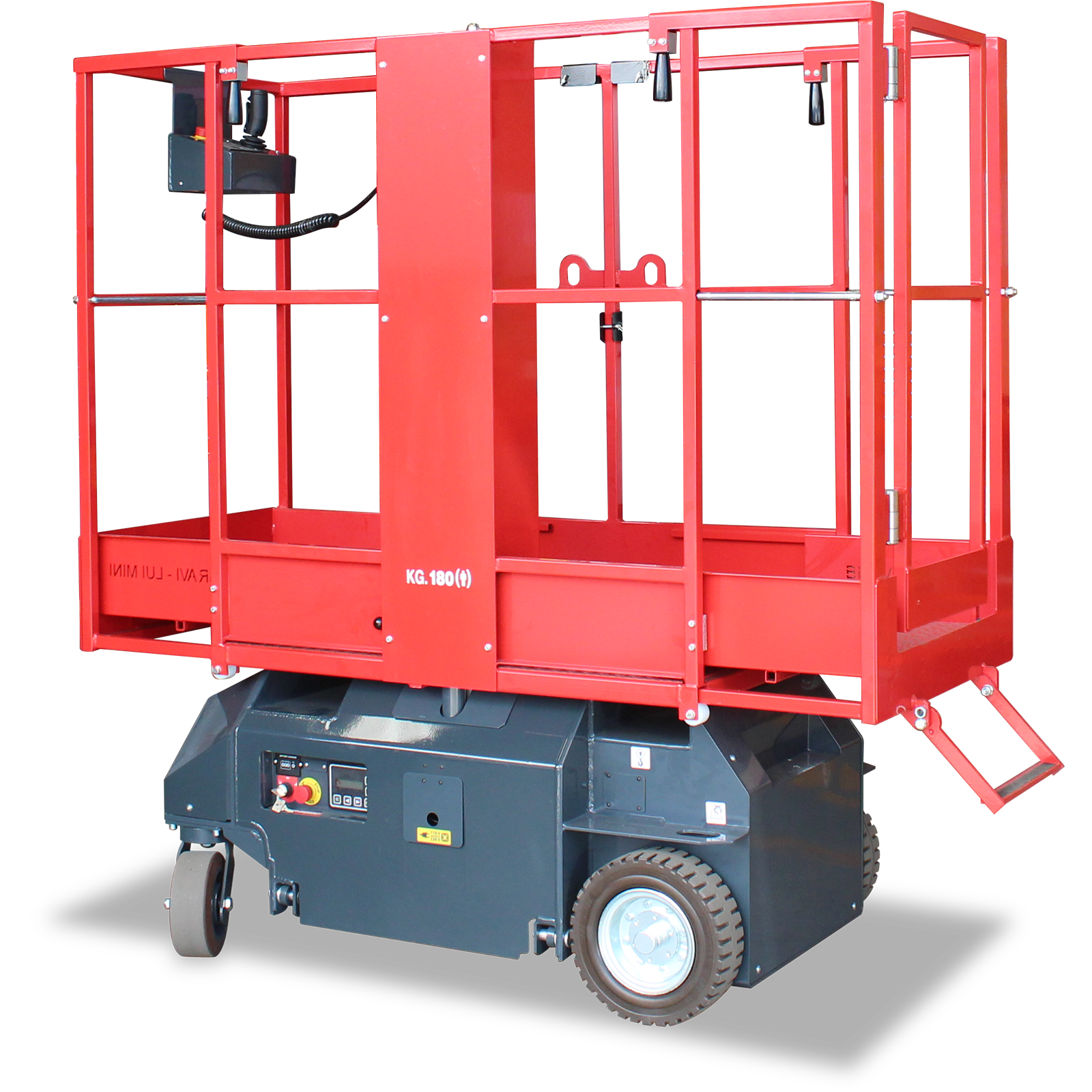

Elevating Work Platform - Leonardo
Model Number

AWZ-BRV-001

Capacity (kg)

180

Platform Length (mm)

1115 - 1700

Platform Width (mm)

680

Platform Height (mm)

630 - 2900

Electromagnetic Brake

No

Travel Speed (km/h)

0.6 - 3

Overall Length (mm)

1192 - 1700

Overall Width (mm)

739

Overall Height (mm)

1747 - 4000

Weight (kg)

550



Enquire For Price

+ Quote
Specification PDF

Tailor-made to needs in the building industry, the Leonardo powered elevating work platforms reduce the need for scaffolding, scissor lifts and push-around units. No more ladder, outriggers or hassles - one man can easily do the job safely, quickly and efficiently.

All controls for lifting and driving can be accessed by the operator in the platform, no need to go up and down ladders or have an additional person driving you around from ground-level.

  • Battery Type: Built-in Rechargeable
  • Driving: Electric
  • Finish: Powder-coated
  • Lifting: Electric
  • Dual extending decks provide a greater reach at both ends
  • The chainless design and extruded alloy components require zero maintenance
  • Wheels can be locked to travel backwards and forwards in a straight line when accessing narrow aisles
  • Both front and back wheels are wide, designed to reduce ground pressure and increase traction on rough job sites
  • Simple joystick controls for all movement and for easy operation while wearing safety gloves
  • The battery can travel over 12km and complete up to 250 ascent and descent cycles before needing a recharge
  • Complies to: Independently accessed by PILZ NZ for Compliance with AS/NZS 1418.10:2011
  • The built-in sensor detects rises or dips, including potholes adjusting the machine’s balance to suit.
  • Single swing gate entry onto the platform for user safety
  • In case of emergencies or a dead battery, additional controls are located at the base of the machine to operate it from ground level
  • 1 Year Warranty

OPTIONAL ACCESSORIES

  • Attachment for mechanically lifting plasterboard overhead for securing (AWZ-BRV-004)
