Bundle Wrapper In-line  Astrolift

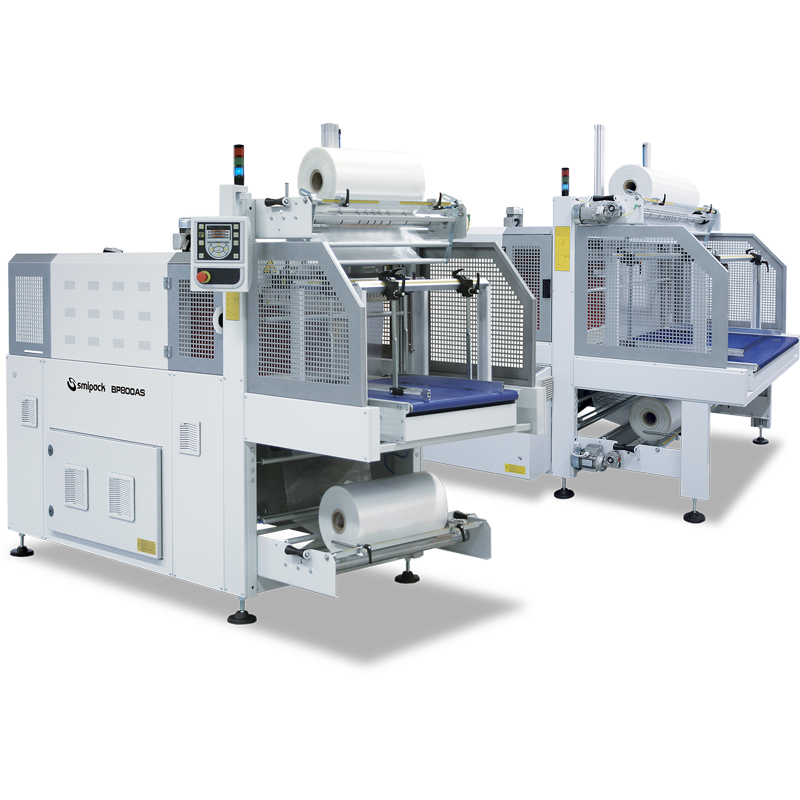

These machines are conveyor fed, and automatically cover the incoming individual product with a loop of shrink film and seals them. The wrapped product then passes through the integrated heat tunnel which shrinks the film around the product for a secure wrap.

Media

Features

MECHANICAL FEATURES

  • Delivery: Some Assembly Required
  • Finish: Powder-coated
  • Automatic in-line shrink wrapper
  • No Pack Collation - Can wrap products individually or in single row groups.
  • Infeed conveyor and tunnel belt controlled by Inverter
  • Motorised upper film unwinding controlled by Inverter
  • Motorised lower film unwinding
  • Infeed conveyor product guides adjustable in height and width
  • Possibility to refer either to the photocell reading or to the pack length
  • Automatic, semi-automatic, pass-through mode
  • Pneumatic sealing bar and cold blade
  • Power and control section made up of:
    • Inverter
    • 16 digital input/output command modules
    • Analog inputs command modules
  • Systems that allow simple and accurate control of all current operations, such as:
    • Storing of 20 different working cycles
    • Automatic control of the height of the bars
    • Speed adjustment of the shrink wrapper and tunnel conveyors utilising an inverter
  • Adjustable tunnel airflow
  • Tunnel conveyor equipped with heat resistant glass fibre bars which ensure that:
    • The conveyor stiffness grants stability to the products passing through, for a compact and well-shrunk pack
    • The conveyor has a capacity of 30kg per product
    • The conveyor bars never rust
    • The maintenance is easy and low cost
  • Oven cooling system
  • Low power consumption

SAFETY

CE Certification

WARRANTY

  • 1 Year Warranty

Models (4)

CODE PWB-SMI-003 PWB-SMI-004 PWB-SMI-005 PWB-SMI-006
Sealing Bar (mm) 760 760 1070 1370
Product Height (Max) (mm) 380 380 380 380
Packs Per Hour (#) 720 1500 900 720
Layout In-line In-line In-line In-line
Heat Chambers (#) 1 2 2 2
Length (mm) 2840 3670 3670 3820
Width (mm) 1410 1410 1710 2010
Height (mm) 2105 - 2265 2105 - 2265 2105 - 2265 2105 - 2265
Weight (kg) 625 845 980 1125
Power Consumption (W) 17,180 26,700 26,700 26,700
Air Pressure (bar) 6 6 6 6
Air Required (Nl) 13 13 13 21
Film Reel (Max) (mm) 750 x 350 750 x 350 1050 x 350 1050 x 350
Height (Platform) (mm) 945 - 1105 945 - 1105 945 - 1105 945 - 1105
In-Feed Lanes (#) 1 1 1 1
Power Supply (Phase) Single Phase Single Phase Single Phase Single Phase
