Buy Bundle Wrapper Right-Angle (Collation) in Bundle Wrappers from Smipack available at Astrolift NZ

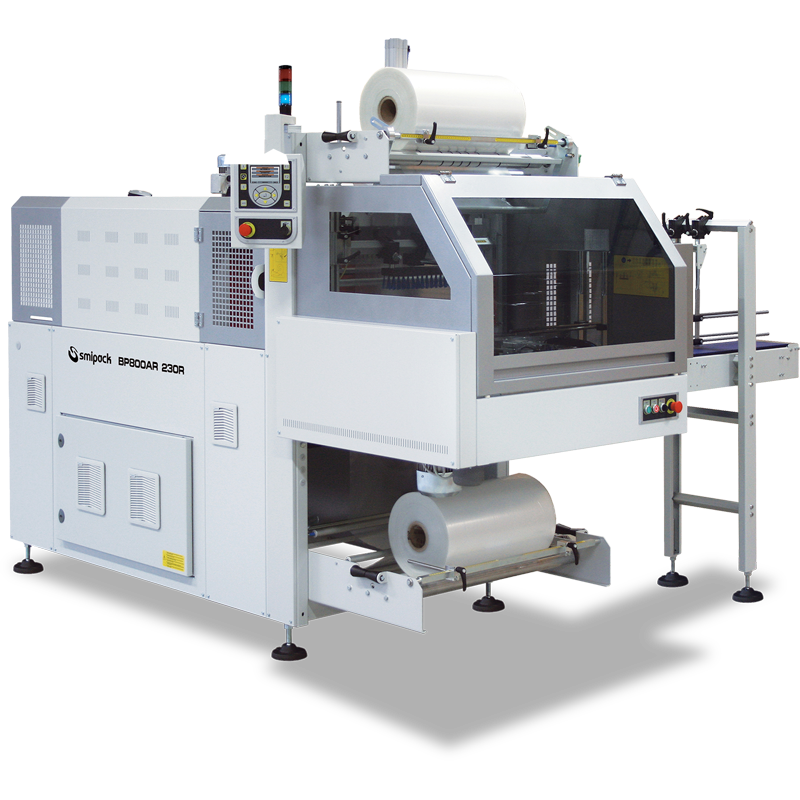

pwb-smi-009, Bundle Wrapper Right-Angle (Collation), Bundle Wrappers from Astrolift pwb-smi-010, Bundle Wrapper Right-Angle (Collation), Bundle Wrappers from Astrolift pwb-smi-011, Bundle Wrapper Right-Angle (Collation), Bundle Wrappers from Astrolift
Model Number

PWB-SMI-009

PWB-SMI-010

PWB-SMI-011

Working Table Height (mm)

945 - 1105

945 - 1105

945 - 1105

Sealing Bar Length (mm)

550

760

760

Heat Tunnel Chambers (#)

1

1

2

Layout

Right-Angle Conveyor In-feed

Right-Angle Conveyor In-feed

Right-Angle Conveyor In-feed

In-feed Lanes (#)

1 - 2

1 - 2

1 - 2

Pack Collation

Pack Collation

Pack Collation

Pack Collation

Boxes Per Hour (#)

1500

900

1200

Power Supply

Single Phase

Single Phase

Single Phase

Air Pressure (Nl)

12

12

12

Air Consumption (bar)

6

6

6

Overall Length (mm)

2705

2845

3675

Overall Width (mm)

2340

2550

2550

Overall Height (mm)

2105 - 2265

2105 - 2265

2105 - 2265

Weight (kg)

700

795

965

Box Height (mm)

380

380

380



Enquire For Price

+ Quote

Enquire For Price

+ Quote

Enquire For Price

+ Quote
Specification PDF

Fed with an in-feed conveyor, these machines automatically collate incoming products into groups before covering them with a loop of shrink film. This bundle is then passed through the built-in heat tunnel to form an easy-to-manage and securely wrapped bundle.

  • Delivery: Some Assembly Required
  • Finish: Powder-coated
  • Pack Collation - Able to create multi-row and column groups of products fed from single or multiple lane in-feeds
  • Infeed conveyor and tunnel belt controlled by Inverter
  • Product carrying by automatic left or right conveyor
  • Product presence photocell
  • Motorised pusher controlled by Inverter and Encoder
  • Motorised upper film unwinding controlled by Inverter
  • Motorised lower film unwinding
  • Automatic, semi-automatic, pass-through mode
  • Pneumatic sealing bar and cold blade
  • Sealing bar with safety sensors
  • Power and control section made up of:
    • Inverter
    • 16 digital input/output command modules
    • Analog inputs command modules
  • Systems that allow simple and accurate control of all current operations, such as:
    • Storing of 20 different working cycles
    • Automatic control of the bar height
    • Speed adjustment of the shrink wrapper and tunnel conveyors
  • Adjustable tunnel airflow
  • Tunnel conveyor equipped with heat resistant glass fibre bars which ensure that:
    • The conveyor stiffness grants stability to the products passing through, for a compact and well-shrunk pack
    • The conveyor has a capacity of 30kg per product
    • The conveyor bars never get rusted
    • The maintenance is easy and low cost
  • Oven cooling system
  • Low power consumption
  • Complies to: CE Certifications
  • 1 Year Warranty
