Buy Bundle Wrapper Right-Angle (Collation, Sorting, Pad Insert) in Bundle Wrappers from Smipack available at Astrolift NZ

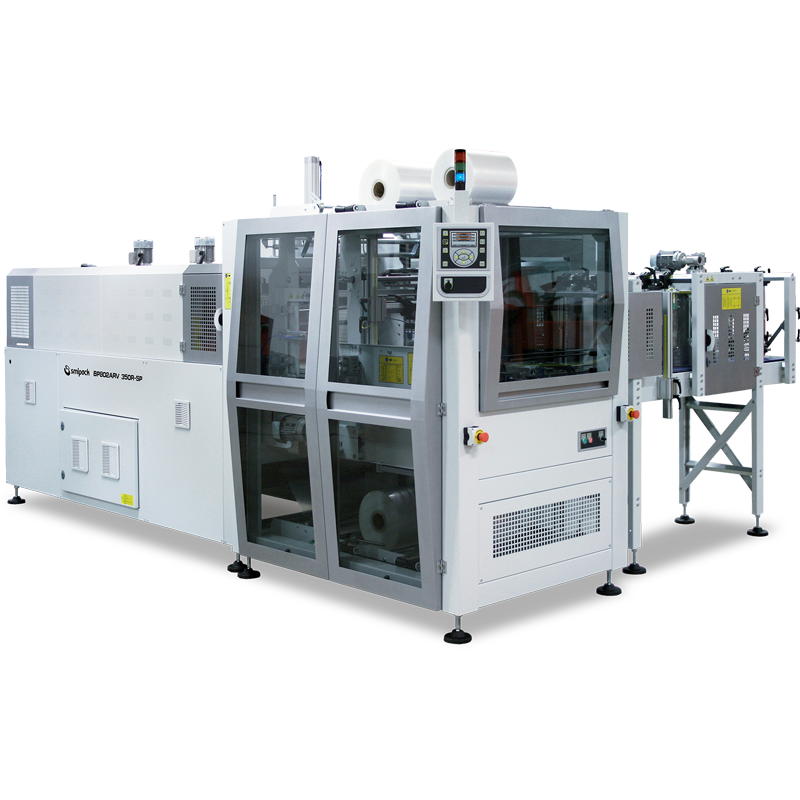

pwb-smi-016, Bundle Wrapper Right-Angle (Collation, Sorting, Pad Insert), Bundle Wrappers from Astrolift
Model Number

PWB-SMI-016

Working Table Height (mm)

945 - 1105

Sealing Bar Length (mm)

760

Heat Tunnel Chambers (#)

2

Layout

Right-Angle Conveyor In-feed

In-feed Lanes (#)

2 - 4

Pack Collation

No Pack Collation

Sorter

Yes

Pad Inserter

Yes

Belt Drive Type

Side-Drive

Boxes Per Hour (#)

1500

Power Supply

Single Phase

Air Pressure (Nl)

16.5

Air Consumption (bar)

6

Overall Length (mm)

4475

Overall Width (mm)

3435

Overall Height (mm)

2105 - 2265

Weight (kg)

1815

Box Height (mm)

380



Enquire For Price

+ Quote
Specification PDF

These machines are ideal for use in high-speed production lines. A sorter divides incoming products into lanes are they enter the machines from a right-angle in-feed, before being collated and a cardboard pad being placed underneath. The bundle is then covered in a loop of shrink film before passing through the built-in heat tunnel to form an easy-to-manage and securely wrapped bundle.

  • Delivery: Some Assembly Required
  • Finish: Powder-coated
  • Pack collation - Able to create multi-row and column groups of products from single or multi-lane in-feeds.
  • Oscillating Sorter - Takes large quantities of products from a single conveyor and sorts them into multiple lanes.
  • Pad Insertion - Inserts a cardboard base under a group of products during the wrapping process.
  • Infeed conveyor and tunnel belt controlled by Inverter
  • Product carrying by automatic left or right conveyor
  • Product presence photocell
  • Motorised pusher controlled by Inverter and Encoder
  • Motorised upper film unwinding controlled by Inverter
  • Motorised lower film unwinding
  • Automatic, semi-automatic, pass through mode
  • Pneumatic sealing bar and cold blade
  • Sealing bar with safety sensors
  • Power and control section made up of:
    • Inverter
    • 16 digital input/output command modules
    • Analog inputs command modules
  • Systems that allow simple and accurate control of all current operations such as:
    • Storing of 20 different working cycles
    • Automatic control of the bar height
    • Speed adjustment of the shrink wrapper and tunnel conveyors
    • Adjustable tunnel airflow
  • Tunnel conveyor equipped with heat resistant glass fibre bars which ensure that:
    • The conveyor stiffness grants stability to the products passing through, for a compact and well-shrunk pack
    • The conveyor has a capacity of 30kg per product
    • The conveyor bars never get rusted
    • The maintenance is easy and low cost
  • Oven cooling system
  • Low power consumption
  • Complies to: CE Certification
  • 1 Year Warranty
