Buy Bundle Wrapper In-line (Collation, Sorting) in Bundle Wrappers from Smipack available at Astrolift NZ
pwb-smi-017, Bundle Wrapper In-line (Collation, Sorting), Bundle Wrappers from Astrolift
Model Number

PWB-SMI-017

Working Table Height (mm)

945

Sealing Bar Width (mm)

760

Heat Tunnel Chambers (#)

2

Layout

Inline Conveyor In-feed

In-feed Lanes (#)

1 - 6

Pack Collation

Pack Collation

Sorter

Yes

Boxes Per Hour (#)

1500

Power Supply

Single Phase

Air Pressure (Nl)

17

Air Consumption (bar)

6

Overall Length (mm)

6215

Overall Width (mm)

1480

Overall Height (mm)

2015 - 2265

Weight (kg)

1575

Box Height (mm)

380



Enquire For Price

+ Quote
Specification PDF

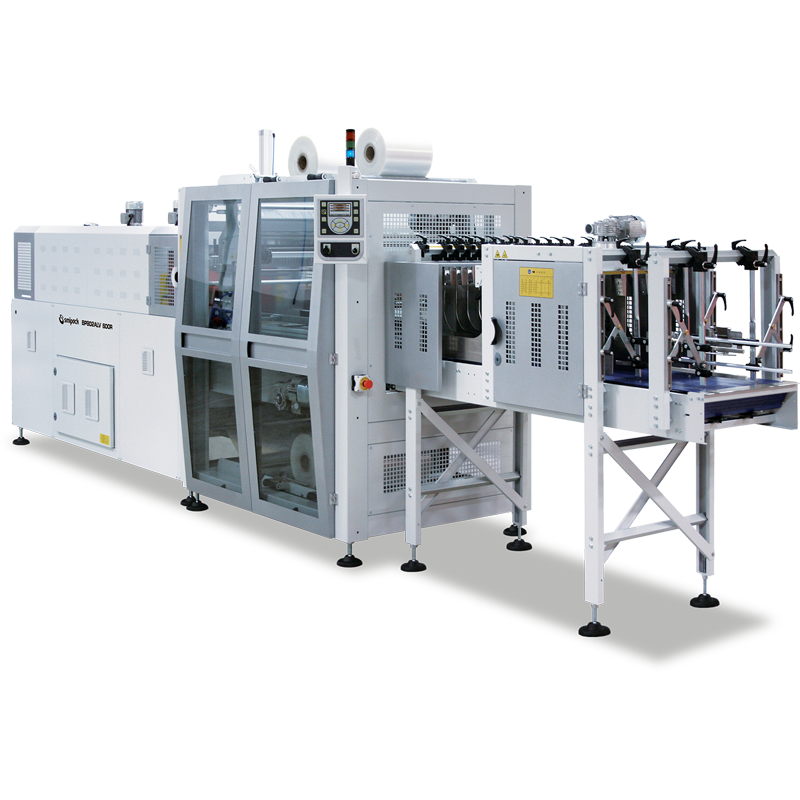

This machine is ideal for use in high-speed production lines. A sorter divides incoming products into lanes as they enter the machine, before being collated and covered in a loop of shrink film. This bundle is then passed through the built-in heat tunnel to form an easy-to-manage and securely wrapped package.

  • Delivery: Some Assembly Required
  • Finish: Powder-coated
  • Pack collation - Able to create multiple row and column groups of products from single or multiple lane in-feeds.
  • Double chamber heat tunnel.
  • Oscillating Sorter - Takes large quantities of products from a single conveyor and sorts them into multiple lanes.
  • Infeed conveyor and tunnel belt controlled by Inverter
  • Product carrying by automatic left or right conveyor
  • Product presence photocell
  • Motorised pusher controlled by Inverter and Encoder
  • Motorised upper film unwinding controlled by Inverter
  • Motorised lower film unwinding
  • Automatic, semi-automatic, pass-through mode
  • Pneumatic sealing bar and cold blade
  • Sealing bar with safety sensors
  • Power and control section made up of:
    • Inverter
    • 16 digital input/output command modules
    • Analog inputs command modules
  • Systems that allow simple and accurate control of all current operations, such as:
    • Storing of 20 different working cycles
    • Automatic control of the bar height
    • Speed adjustment of the shrink wrapper and tunnel conveyors
  • Adjustable tunnel airflow
  • Tunnel conveyor equipped with heat resistant glass fibre bars which ensure that:
    • The conveyor stiffness grants stability to the products passing through, for a compact and well-shrunk pack
    • The conveyor has a capacity of 30kg per product
    • The conveyor bars never get rusted
    • The maintenance is easy and low cost
  • Oven cooling system
  • Low power consumption
  • Complies to: CE Certification
  • 1 Year Warranty
