Bundle Wrapper Right-Angle (Collation, Stacking)

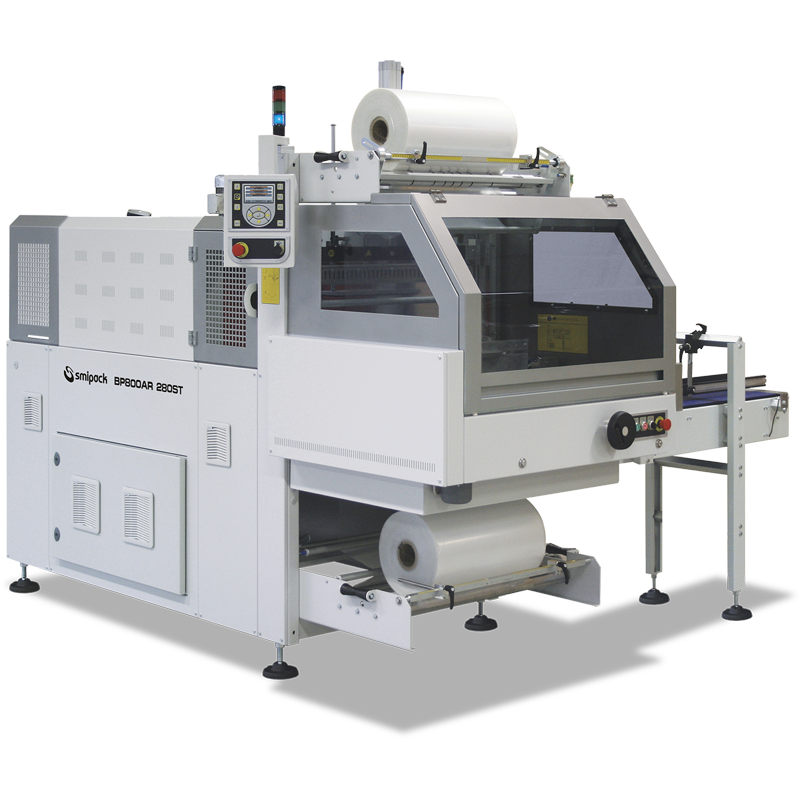

This machine is ideal for use in high-speed production lines. Incoming products are sorted into lanes as they enter the machine, before being collated into a set grouping then stacked vertically (for example a 2x4x2 bundle). This bundle is then passed through a curtain of shrink film which is cut and sealed around it, before passing through the integrated heat tunnel to shrink the film around the bundle.

Media

Features

MECHANICAL FEATURES

  • Delivery: Some Assembly Required
  • Finish: Powder-coated
  • Pack collation - Able to create multi-row and column groups of products from single or multiple-lane in-feeds
  • Vertical stacking - Able to stack singular products or groups of products on top of each other
  • Infeed conveyor and tunnel belt controlled by Inverter
  • Product carrying by automatic left or right conveyor
  • Product presence photocell
  • Motorised pusher controlled by Inverter and Encoder
  • Motorised upper film unwinding controlled by Inverter
  • Motorised lower film unwinding
  • Automatic, semi-automatic, pass through mode
  • Pneumatic sealing bar and cold blade
  • Sealing bar with safety sensors
  • Power and control section made up of:
    • Inverter
    • 16 digital input/output command modules
    • Analog inputs command modules
  • Systems that allow simple and accurate control of all current operations such as:
    • Storing of 20 different working cycles
    • Automatic control of the bar height
    • Speed adjustment of the shrink wrapper and tunnel conveyors
  • Adjustable tunnel airflow
  • Tunnel conveyor equipped with heat resistant glass fibre bars which ensure that:
    • The conveyor stiffness grants stability to the products passing through, for a compact and well-shrunk pack
    • The conveyor has a capacity of 30kg per product
    • The conveyor bars never get rusted
    • The maintenance is easy and low cost
  • Oven cooling system
  • Low power consumption

SAFETY

CE Certification

WARRANTY

  • 1 Year Warranty

Models (1)

CODE PWB-SMI-019
Sealing Bar (mm) 760
Product Height (Max) (mm) 380
Packs Per Hour (#) 1020
Layout Right-angle 280mm wide in-feed
Heat Chambers (#) 1
Length (mm) 2845
Width (mm) 2565
Height (mm) 2105 - 2265
Weight (kg) 805
Power Consumption (W) 17,200
Air Pressure (bar) 6
Air Required (Nl) 12
Film Reel (Max) (mm) 750 x 350
Height (Platform) (mm) 820 - 980
Power Supply (Phase) Single Phase
